Stainless Steel Tubular Thimble without Gusset G5

Stainless Steel Tubular Thimble without Gusset G5, in 5 sizes. Indus part numbers.
Key features
- Product type: Stainless Steel Tubular Thimble without Gusset G5
- Material
- Type 316 or 304 stainless steel
- Finish
- Polished
Product description
A thimble lines a wire rope eye so it keeps its shape and does not kink or wear where it bears. Type 316 or 304 stainless steel, polished.
Sizes
5 sizes. Every size has its own Indus part number in the table below.

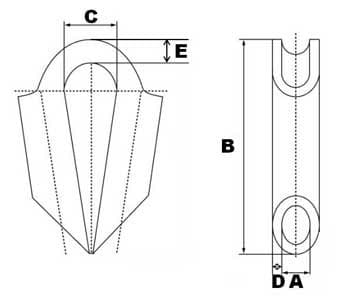

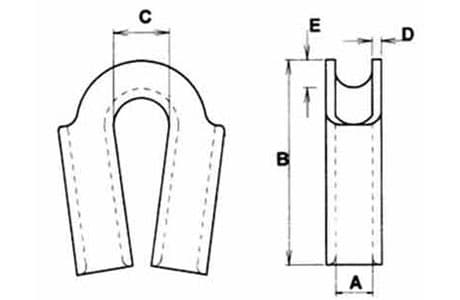

The lettered dimensions in the table refer to the dimension drawing shown with this product.
Manufacturer's data
- Machining, stamping, polished.
Choosing a size
Match the thimble to the rope diameter. Use an extra-heavy thimble where the eye bears hard on a pin or hook.
Ordering
Quote the Indus part number from the size table, or send the size and rating you need.
Identification
| Parameter | Value |
|---|---|
| Product type | Stainless Steel Tubular Thimble without Gusset G5 |
| Sizes | 5 |
Construction
| Parameter | Value |
|---|---|
| Material | Type 316 or 304 stainless steel |
| Finish | Polished |
Shipping & lead time
Sizes & part numbers
5 sizes- Indus part no.IH-LR-TH-TTSSWGG5-12X90MM
- Size
- 12 × 90 mm
- A (mm)
- 12
- B (mm)
- 90
- C (mm)
- 21
- D (mm)
- 2.4
- E (mm)
- 10
- Weight (kg)
- 0.15
- Indus part no.IH-LR-TH-TTSSWGG5-15X100MM
- Size
- 15 × 100 mm
- A (mm)
- 15
- B (mm)
- 100
- C (mm)
- 23
- D (mm)
- 2.8
- E (mm)
- 12
- Weight (kg)
- 0.21
- Indus part no.IH-LR-TH-TTSSWGG5-21X116MM
- Size
- 21 × 116 mm
- A (mm)
- 21
- B (mm)
- 116
- C (mm)
- 27
- D (mm)
- 2.8
- E (mm)
- 14
- Weight (kg)
- 0.33
- Indus part no.IH-LR-TH-TTSSWGG5-27X145MM
- Size
- 27 × 145 mm
- A (mm)
- 27
- B (mm)
- 145
- C (mm)
- 36
- D (mm)
- 3.2
- E (mm)
- 18
- Weight (kg)
- 0.6
- Indus part no.IH-LR-TH-TTSSWGG5-32X182MM
- Size
- 32 × 182 mm
- A (mm)
- 32
- B (mm)
- 182
- C (mm)
- 46
- D (mm)
- 3.3
- E (mm)
- 21
- Weight (kg)
- —
Size — Nominal size as the manufacturer states it. A — Dimension A on the manufacturer dimension drawing. B — Dimension B on the manufacturer dimension drawing. C — Dimension C on the manufacturer dimension drawing. D — Dimension D on the manufacturer dimension drawing. E — Dimension E on the manufacturer dimension drawing. Weight — Weight as the manufacturer publishes it. Ask us for the dimension drawing if you need it stamped.
WLL is the most the part may carry in service. Proof and breaking loads are test figures — never lift to them. Each load is shown in the unit the manufacturer rates the part in, and a size ships with the manufacturer’s test certificate.
What is the Stainless Steel Tubular Thimble without Gusset G5 used for?▾
How do I read Stainless Steel Tubular Thimble without Gusset G5 part numbers such as IH-LR-TH-TTSSWGG5-12X90MM?▾
Which sizes does the Stainless Steel Tubular Thimble without Gusset G5 come in?▾
How do I choose the right size of Stainless Steel Tubular Thimble without Gusset G5?▾
What is the rated capacity of the Stainless Steel Tubular Thimble without Gusset G5?▾
What is the Stainless Steel Tubular Thimble without Gusset G5 made from and how is it finished?▾
Does the Stainless Steel Tubular Thimble without Gusset G5 come with a test certificate?▾
Which parts connect to the Stainless Steel Tubular Thimble without Gusset G5?▾
How should the Stainless Steel Tubular Thimble without Gusset G5 be fitted and inspected?▾
How does the Stainless Steel Tubular Thimble without Gusset G5 compare with the Stainless Steel Tubular Thimble Cast with Gusset?▾
Can you export the Stainless Steel Tubular Thimble without Gusset G5 from Dubai?▾
Is the Stainless Steel Tubular Thimble without Gusset G5 available from stock in Dubai?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 136 destinations
