Stainless Steel Marine Single Cross Bollard GB/T 554-1996 Type D
Stainless Steel Marine Single Cross Bollard GB/T 554-1996 Type D, in 3 sizes, 50 mm to 100 mm. Indus part numbers.
Key features
- Product type: Stainless Steel Marine Single Cross Bollard GB/T 554-1996 Type D
- Pattern / standard: GB/T 554
- Size range: 50 mm to 100 mm
- Size range
- 50 mm to 100 mm
- Material
- Stainless steel
Product description
Bollards, cleats, fairleads and mooring springs for vessels, docks and jetties. Made to GB/T 554. Stainless steel.
Sizes
3 sizes, 50 mm to 100 mm. Every size has its own Indus part number in the table below.
The lettered dimensions in the table refer to the dimension drawing shown with this product.
Ordering
Quote the Indus part number from the size table, or send the size and rating you need.
Identification
| Parameter | Value |
|---|---|
| Product type | Stainless Steel Marine Single Cross Bollard GB/T 554-1996 Type D |
| Pattern / standard | GB/T 554 |
| Sizes | 3 |
Dimensions
| Parameter | Value |
|---|---|
| Size range | 50 mm to 100 mm |
Construction
| Parameter | Value |
|---|---|
| Material | Stainless steel |
Shipping & lead time
Sizes & part numbers
3 sizes| Indus part no. | Size | Rope size | A (mm) | B (mm) | D (mm) | D1 (mm) | H (mm) | h (mm) | h1 (mm) | r (mm) | d (mm) | d1 (mm) | t (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IH-LR-BM-MSCBSSG55-50MM | 50 mm | 8.7 / 75 / 16 | 85 | 135 | 50 | 65 | 190 | 8 | 85 | 25 | 25 | 35 | 6 | 2.8 |
| IH-LR-BM-MSCBSSG55-75MM | 75 mm | 11.5 / 90 / 20 | 115 | 185 | 75 | 95 | 290 | 12 | 135 | 35 | 42 | 52 | 7 | 8 |
| IH-LR-BM-MSCBSSG55-100MM | 100 mm | 13.5 / 100 / 24 | 155 | 235 | 100 | 120 | 350 | 18 | 160 | 40 | 50 | 65 | 7 | 15 |
Size — Nominal size as the manufacturer states it. Rope size — Rope diameter the sheave is made for. A — Dimension A on the manufacturer dimension drawing. B — Dimension B on the manufacturer dimension drawing. D — Dimension D on the manufacturer dimension drawing. D1 — Dimension D1 on the manufacturer dimension drawing. H — Dimension H on the manufacturer dimension drawing. h — Dimension h on the manufacturer dimension drawing. h1 — Dimension h1 on the manufacturer dimension drawing. r — Dimension r on the manufacturer dimension drawing. d — Dimension d on the manufacturer dimension drawing. d1 — Dimension d1 on the manufacturer dimension drawing. t — Dimension t on the manufacturer dimension drawing. Weight — Weight as the manufacturer publishes it. Ask us for the dimension drawing if you need it stamped.
WLL is the most the part may carry in service. Proof and breaking loads are test figures — never lift to them. Each load is shown in the unit the manufacturer rates the part in, and a size ships with the manufacturer’s test certificate.
What sizes does the stainless steel marine single cross bollard GB/T 554-1996 type d come in?▾
What does the nominal size of a marine bollard mean?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
The same part, in the designations used across European and Gulf trade catalogues.
- de
- Kreuzstück
- fr
- croix
- es
- cruz
- it
- croce
Engineers viewing this also looked at
R Type Dock Bollard

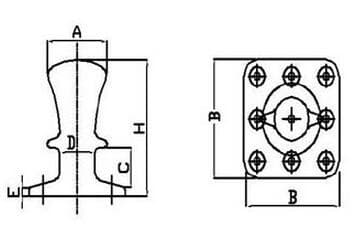

Single Bitt Bollard

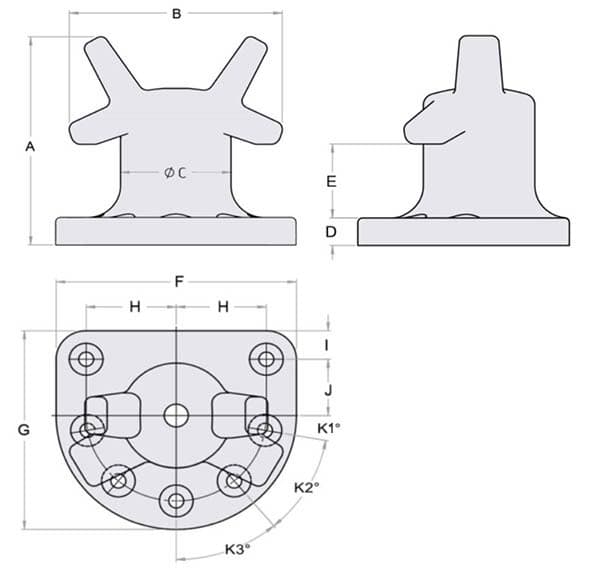

Stag Horn Type Bollard

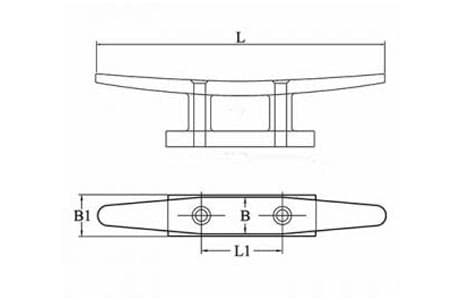

Stainless Steel Boat Cleat

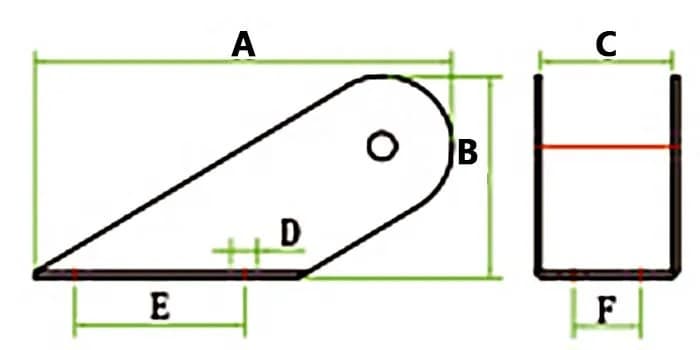

Stainless Steel Bow Roller
Stainless Steel Mooring Cleat Blue Water Cleat Deck Hardware

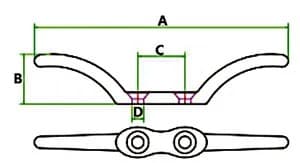

Stainless Steel Rope Cleat
