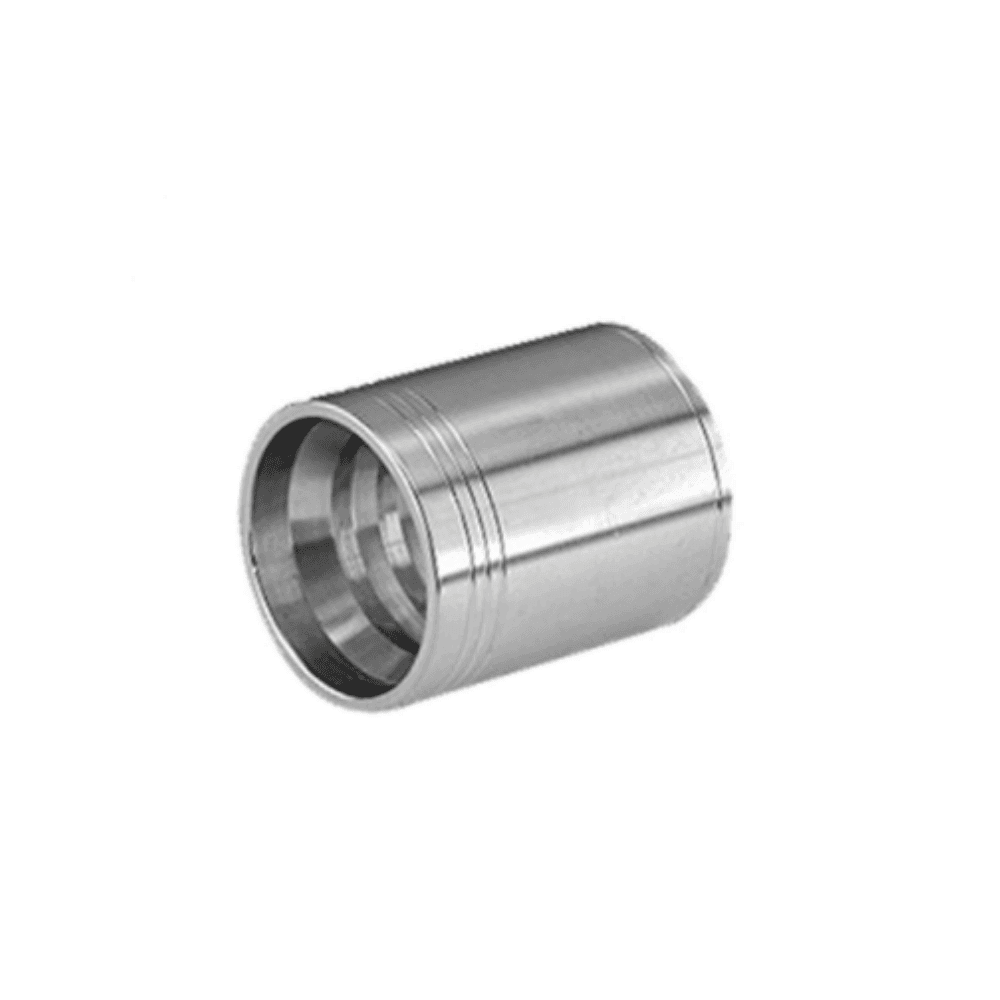

Skive Crimp Ferrule for China 1-Wire Hose
Skive Crimp Ferrule for China 1-Wire Hose — 12 sizes, -03 to -32.
Key features
- Fitting Configuration: straight
- Nominal Size Range: -03 to -32
- Fitting Configuration
- straight
- Nominal Size Range
- -03 to -32
Product description
The Skive Crimp Ferrule for China 1-Wire Hose is part of the Indus hydraulic connection range.
Sized for GB-standard Chinese wire-braid hose, which is dimensioned differently from the SAE and EN grades in the rest of this category. Match the ferrule to the hose it is crimping, not to the bore alone — an SAE 1SN and a China 1-wire of the same nominal bore do not take the same ferrule.
Construction
- Configuration: straight
- Material: carbon steel, zinc-plated and Cr3+ passivated (316 stainless on request)
Sizes
12 sizes, -03 to -32. The full size and dimension table is on this page.
How to order
Quote the Indus part number for the size you need. Tell us the hose grade and bore and we will include the matching crimp ferrule — the ferrule follows the hose, not the fitting. Indus crimps and pressure-tests assemblies before dispatch.
Identification
| Parameter | Value |
|---|---|
| Fitting Configuration | straight |
Dimensions
| Parameter | Value |
|---|---|
| Nominal Size Range | -03 to -32 |
Construction
| Parameter | Value |
|---|---|
| Material | Carbon steel (316 stainless on request) |
| Surface Treatment | Zinc-plated, Cr3+ passivated, RoHS-compliant |
Compliance
| Parameter | Value |
|---|---|
| Applicable Standards | GB-standard 1-wire braided hose |
Shipping & lead time
Sizes & part numbers
12 sizes| Indus part no. | Hose bore | D (mm) | L (mm) |
|---|---|---|---|
| IH-CF-SK-CN1-03 | -03 · 3/16" · DN5 | 17 | 28 |
| IH-CF-SK-CN1-04 | -04 · 1/4" · DN6 | 19 | 30 |
| IH-CF-SK-CN1-05 | -05 · 5/16" · DN8 | 21 | 32 |
| IH-CF-SK-CN1-06 | -06 · 3/8" · DN10 | 23 | 32 |
| IH-CF-SK-CN1-08 | -08 · 1/2" · DN12 | 28 | 34 |
| IH-CF-SK-CN1-10 | -10 · 5/8" · DN16 | 31 | 39 |
| IH-CF-SK-CN1-12 | -12 · 3/4" · DN20 | 34 | 43 |
| IH-CF-SK-CN1-14 | -14 · 7/8" · DN22 | 37 | 43 |
| IH-CF-SK-CN1-16 | -16 · 1" · DN25 | 41 | 50 |
| IH-CF-SK-CN1-20 | -20 · 1.1/4" · DN32 | 49 | 59 |
| IH-CF-SK-CN1-24 | -24 · 1.1/2" · DN38 | 55 | 74 |
| IH-CF-SK-CN1-32 | -32 · 2" · DN51 | 68 | 78 |
D — Dimension D on the manufacturer dimension drawing. L — Dimension L on the manufacturer dimension drawing. Ask us for the dimension drawing if you need it stamped.
Every size is available in 316 stainless steel on request — add “-SS” to the part number when you enquire.
What sizes are available?▾
What is the maximum working pressure?▾
Which ferrule pairs with this fitting?▾
Is stainless steel available?▾
Can Indus crimp the assembly?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
The same part, in the designations used across European and Gulf trade catalogues.
- de
- Presshülse
- fr
- jupe de sertissage
- es
- casquillo de prensado
- it
- boccola di pressatura
