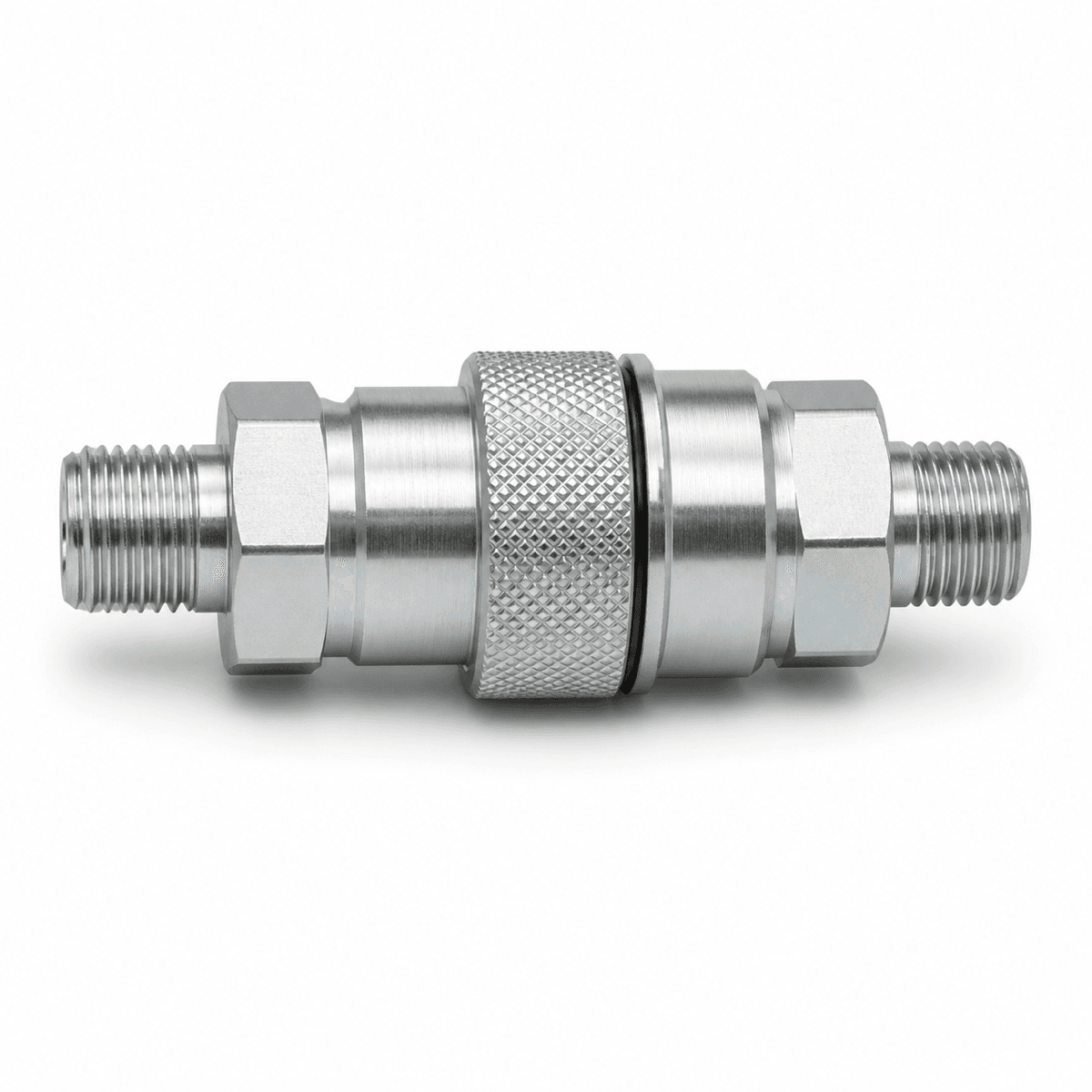

Refrigerant Quick Coupler — Low Air Inclusion

The Refrigerant Quick Coupler — Low Air Inclusion is a refrigerant quick-disconnect coupling in the Indus QC-RF range. Low-air-inclusion thread-to-connect refrigerant coupler with tubular valve construction — for mobile air conditioning, refrigerant transfer, and gaseous and liquid HVAC service. Brazed or threaded end connections; lock washer / jam nut for bulkhead mounting.

Working pressure to 207 bar (3002 psi) at the smallest body size, with minimum burst pressure of 621 bar. Thread-to-Connect connection — thread-to-connect variant.

Construction & features

• Connection method: Thread-to-Connect
• Valving: Thread-to-Connect
• Interchanges with: Mobile A/C OEM refrigerant couplers, Eaton 5400

Available variants — specify in your RFQ

Indus supplies the full QC-RF range. Specify the configuration that matches your hose end and operating envelope and we will quote against it.

• Coupling halves: Male, Female, Complete Set, Dust Cap (with gasket), Dust Plug (with gasket), JIC adapters, Braze adapters
• Body sizes: 1/4" (-04), 1/2" (-08), 3/4" (-12), 1" (-16)
• Body materials: Carbon Steel (zinc trivalent chromate plated); Brass and Steel adapters available
• Seal materials: Neoprene
• Port thread types: No-adapter, SAE 37° (JIC), Braze Tubing Adapter (multiple tube ODs)

Performance

• Maximum operating pressure: 207 bar (3002 psi) at the smallest size; derates with diameter
• Minimum burst pressure: 621 bar (9007 psi)
• Rated flow (largest size): up to 284 L/min
• Vacuum rating: 28 in./Hg
• Operating temperature range: -40°C to +100°C (varies by seal compound; specify in RFQ)

Replacing an existing coupling?

This coupler is dimensionally interchangeable with Eaton 5400, and with Mobile A/C OEM refrigerant couplers. If you are matching an existing fleet, quote the coupling you are replacing on the RFQ and we will confirm the mating half before you order.

How to order

Confirm the coupling half (male / female / complete set / dust cap), body size, port thread type and size, seal compound and body material. Indus quotes with material certification on request, and air-freight or sea-freight to the UAE and wider GCC. Standard lead time 14 days from order; stocked configurations ship the same week.

Companion products

Indus also supplies the matching dust caps, dust plugs and seal repair kits for this series — add them to the same RFQ. For a hose assembly terminated with this coupler, request a complete assembly quote and we will supply it tested at 1.5× working pressure with a witness-test certificate.
