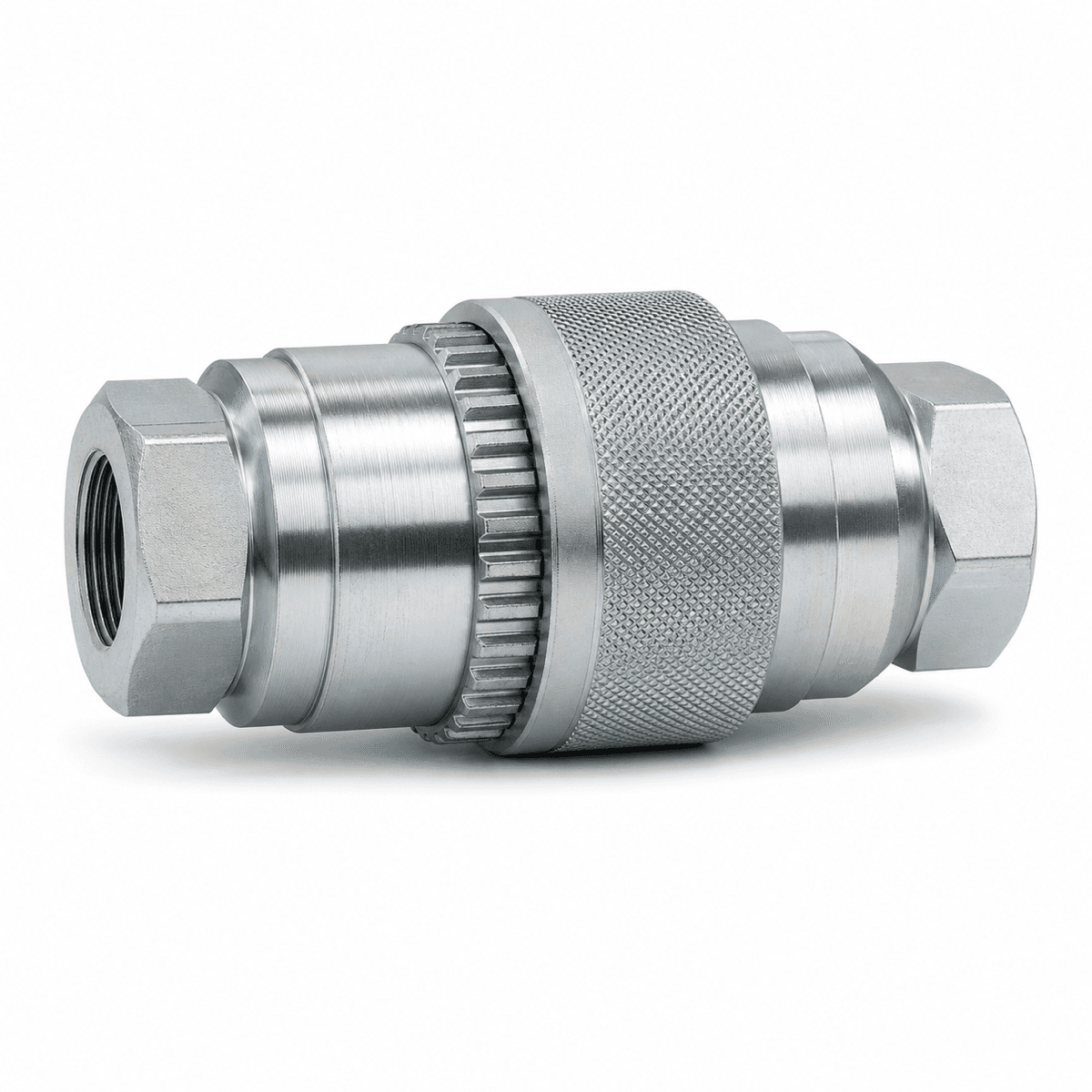

Dry Break Thread-to-Connect Quick Coupler
Thread-together steel high-impulse 5,000 psi dry-break coupler with Acme threads and tubular valve — for mining and high-impulse hydraulic circuits. Connect/disconnect against pressures to 750 psi.
Key features
- Series: QC-DB
- Application Class: Hydraulic
- Valving: Dry Break
- Connection Method: Thread-to-Connect
- Connect Under Pressure
- Maximum Operating Pressure: 345 bar
- Series
- QC-DB
- Application Class
- Hydraulic
- Valving
- Dry Break
- Available Body Sizes
- 1", 1-1/4"
- Connection Method
- Thread-to-Connect
- Flush Face / No-Spill
- no
Product description
The Dry Break Thread-to-Connect Quick Coupler is a hydraulic quick-disconnect coupling in the Indus QC-DB range. Thread-together steel high-impulse 5,000 psi dry-break coupler with Acme threads and tubular valve — for mining and high-impulse hydraulic circuits. Connect/disconnect against pressures to 750 psi.
Working pressure to 345 bar (5004 psi) at the smallest body size, with minimum burst pressure of 1034 bar. Thread-to-Connect connection — dry break variant.
Construction & features
- Connection method: Thread-to-Connect
- Valving: Dry Break
- Interchanges with: Parker FH high-impulse, Stucchi A-HP, Eaton FD86
Available variants — specify in your RFQ
Indus supplies the full QC-DB range. Specify the configuration that matches your hose end and operating envelope and we will quote against it.
- Coupling halves: Male, Female, Complete Set, Dust Cap/Plug, Bulkhead Flange (steel)
- Body sizes: 1", 1-1/4"
- Body materials: Carbon Steel (zinc trivalent chromate plated)
- Seal materials: Buna-N, with Teflon back-up rings
- Port thread types: Female NPT, Female SAE O-ring
Performance
- Maximum operating pressure: 345 bar (5004 psi) at the smallest size; derates with diameter
- Minimum burst pressure: 1034 bar (14997 psi)
- Rated flow (largest size): up to 284 L/min
- Vacuum rating: 28 in./Hg
- Operating temperature range: -40°C to +100°C (varies by seal compound; specify in RFQ)
Replacing an existing coupling?
This coupler is dimensionally interchangeable with Eaton FD86, and with Parker FH high-impulse, Stucchi A-HP. If you are matching an existing fleet, quote the coupling you are replacing on the RFQ and we will confirm the mating half before you order.
How to order
Confirm the coupling half (male / female / complete set / dust cap), body size, port thread type and size, seal compound and body material. Indus quotes with material certification on request, and air-freight or sea-freight to the UAE and wider GCC. Standard lead time 14 days from order; stocked configurations ship the same week.
Companion products
Indus also supplies the matching dust caps, dust plugs and seal repair kits for this series — add them to the same RFQ. For a hose assembly terminated with this coupler, request a complete assembly quote and we will supply it tested at 1.5× working pressure with a witness-test certificate.
Identification
| Parameter | Value |
|---|---|
| Series | QC-DB |
| Application Class | Hydraulic |
| Valving | Dry Break |
Variants
| Parameter | Value |
|---|---|
| Available Body Sizes | 1", 1-1/4" |
| Available Body Materials | Carbon Steel (zinc trivalent chromate plated) |
| Available Seal Materials | Buna-N, with Teflon back-up rings |
| Available Port Thread Types | Female NPT, Female SAE O-ring |
| Available Coupling Halves | Male, Female, Complete Set, Dust Cap/Plug, Bulkhead Flange (steel) |
Construction
| Parameter | Value |
|---|---|
| Connection Method | Thread-to-Connect |
| Flush Face / No-Spill | no |
| Connect Under Pressure | yes |
Performance
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 345 bar |
| Minimum Burst Pressure | 1034 bar |
| Rated Flow (Largest Size) | 284 L/min |
| Vacuum Rating | 28 in./Hg |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 100 °C |
Compliance
| Parameter | Value |
|---|---|
| Interchanges With (Competitor Brands) | Parker FH high-impulse, Stucchi A-HP, Eaton FD86 |
