VIEW 01·45° JIS Flange Hose Fitting
45° JIS Flange — flange face, 3 sizes, -08 to -12.
Key features
- Fitting Configuration: 45-elbow
- Thread Form: 5/8"
- Sealing Form: Flange face
- Nominal Size Range: -08 to -12
- Fitting Configuration
- 45-elbow
- Thread Form
- 5/8"
- Sealing Form
- Flange face
- Nominal Size Range
- -08 to -12
Ships in 24h
Order before 14:00 GST · Jebel Ali
24-month warranty
Manufacturer-backed · genuine parts
Engineering support
A real applications engineer
Product description

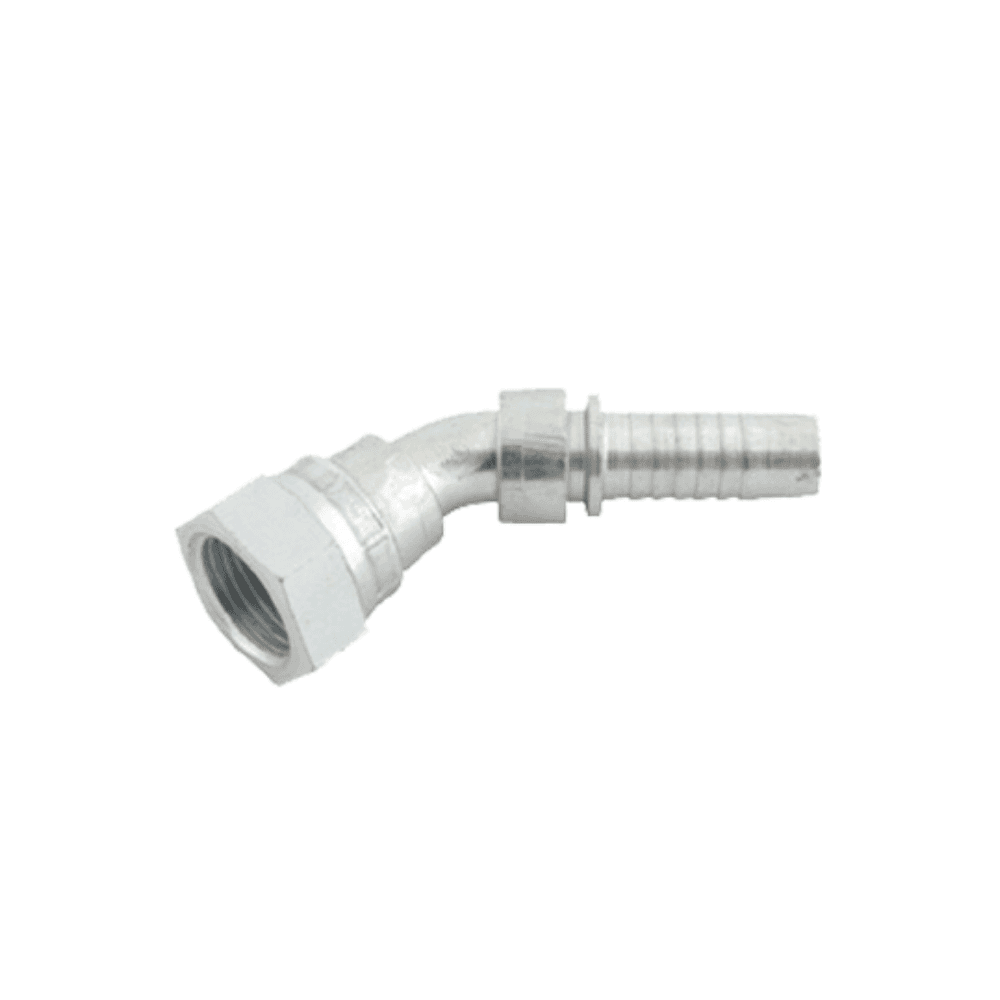

The 45° JIS Flange Hose Fitting is a hydraulic hose fitting with flange face.
The 45° elbow of the JIS flange family.
Construction
- Configuration: 45 elbow
- Thread: 5/8"
- Sealing form: Flange face
- Material: carbon steel, zinc-plated and Cr3+ passivated (316 stainless on request)
Sizes
3 sizes, -08 to -12, threads 5/8". The full size and dimension table is on this page.
How to order
Quote the Indus part number for the size you need. Tell us the hose grade and bore and we will include the matching crimp ferrule — the ferrule follows the hose, not the fitting. Indus crimps and pressure-tests assemblies before dispatch.
Identification
| Parameter | Value |
|---|---|
| Fitting Configuration | 45-elbow |
| Thread Form | 5/8" |
| Sealing Form | Flange face |
Dimensions
| Parameter | Value |
|---|---|
| Nominal Size Range | -08 to -12 |
Construction
| Parameter | Value |
|---|---|
| Material | Carbon steel (316 stainless on request) |
| Surface Treatment | Zinc-plated, Cr3+ passivated, RoHS-compliant |
Compliance
| Parameter | Value |
|---|---|
| Applicable Standards | JIS B2291 |
Shipping & lead time
Lead TimeTypically dispatched within 7 working days.
