90° Komatsu Female Hose Fitting (JIS Metric)
90° Komatsu Female (JIS Metric) — 30° cone seat, 60° included (JIS B8363), 10 sizes, -04 to -24.
Key features
- Fitting Configuration: 90-elbow
- Thread Form: M14×1.5 to M42×1.5
- Sealing Form: 30° cone seat, 60° included (JIS B8363)
- Nominal Size Range: -04 to -24
- Fitting Configuration
- 90-elbow
- Thread Form
- M14×1.5 to M42×1.5
- Sealing Form
- 30° cone seat, 60° included (JIS B8363)
- Nominal Size Range
- -04 to -24
Product description
The 90° Komatsu Female Hose Fitting (JIS Metric) is a hydraulic hose fitting with 30° cone seat, 60° included (JIS B8363).
Completes the Komatsu family — the straight male and female have been on the site, the 90° elbow had not. The seat is the same 30° cone (60° included) as the rest of the family.
Construction
- Configuration: 90 elbow
- Thread: M14×1.5 to M42×1.5
- Sealing form: 30° cone seat, 60° included (JIS B8363)
- Gender: female-swivel
- Material: carbon steel, zinc-plated and Cr3+ passivated (316 stainless on request)
Sizes
10 sizes, -04 to -24, threads M14×1.5 to M42×1.5. The full size and dimension table is on this page.
How to order
Quote the Indus part number for the size you need. Tell us the hose grade and bore and we will include the matching crimp ferrule — the ferrule follows the hose, not the fitting. Indus crimps and pressure-tests assemblies before dispatch.
Identification
| Parameter | Value |
|---|---|
| Fitting Configuration | 90-elbow |
| Thread Form | M14×1.5 to M42×1.5 |
| Sealing Form | 30° cone seat, 60° included (JIS B8363) |
| Thread Gender | female-swivel |
Dimensions
| Parameter | Value |
|---|---|
| Nominal Size Range | -04 to -24 |
Construction
| Parameter | Value |
|---|---|
| Material | Carbon steel (316 stainless on request) |
| Surface Treatment | Zinc-plated, Cr3+ passivated, RoHS-compliant |
Compliance
| Parameter | Value |
|---|---|
| Applicable Standards | JIS B8363 |
Shipping & lead time
Sizes & part numbers
10 sizes| Indus part no. | Hose bore | Thread | S1 (mm) | S2 (mm) | A (mm) | C (mm) | H (mm) |
|---|---|---|---|---|---|---|---|
| IH-JP-KOMATSU-FEM-90-0414 | -04 · 1/4" · DN6 | M14×1.5 | 19 | 19 | 30 | 10.5 | 38 |
| IH-JP-KOMATSU-FEM-90-0516 | -05 · 5/16" · DN8 | M16×1.5 | 22 | 22 | 33 | 10 | 44 |
| IH-JP-KOMATSU-FEM-90-0614 | -06 · 3/8" · DN10 | M14×1.5 | 19 | 19 | 35.5 | 10.5 | 43.3 |
| IH-JP-KOMATSU-FEM-90-0618 | -06 · 3/8" · DN10 | M18×1.5 | 24 | 24 | 35.3 | 11.5 | 46.3 |
| IH-JP-KOMATSU-FEM-90-0822 | -08 · 1/2" · DN12 | M22×1.5 | 27 | 27 | 41 | 14 | 52.5 |
| IH-JP-KOMATSU-FEM-90-1024 | -10 · 5/8" · DN16 | M24×1.5 | 32 | 32 | 56.5 | 15 | 59 |
| IH-JP-KOMATSU-FEM-90-1230 | -12 · 3/4" · DN20 | M30×1.5 | 36 | 36 | 65.5 | 18.3 | 68.5 |
| IH-JP-KOMATSU-FEM-90-1633 | -16 · 1" · DN25 | M33×1.5 | 41 | 41 | 76.7 | 21.3 | 76 |
| IH-JP-KOMATSU-FEM-90-2036 | -20 · 1.1/4" · DN32 | M36×1.5 | 46 | 46 | 93 | 20 | 90 |
| IH-JP-KOMATSU-FEM-90-2442 | -24 · 1.1/2" · DN40 | M42×1.5 | 55 | 55 | 109.4 | 18.8 | 103 |
S1 — Dimension S1 on the manufacturer dimension drawing. S2 — Dimension S2 on the manufacturer dimension drawing. A — Dimension A on the manufacturer dimension drawing. C — Dimension C on the manufacturer dimension drawing. H — Dimension H on the manufacturer dimension drawing. Ask us for the dimension drawing if you need it stamped.
Every size is available in 316 stainless steel on request — add “-SS” to the part number when you enquire.
Is this a 30° cone or a 60° cone?▾
What is the sealing form?▾
What sizes are available?▾
What is the maximum working pressure?▾
Which ferrule pairs with this fitting?▾
Is stainless steel available?▾
Can Indus crimp the assembly?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
From the blog
Written about this range
Engineers viewing this also looked at
Komatsu Male Hose Fitting (JIS Metric)
Toyota Female Hose Fitting (JIS Metric)

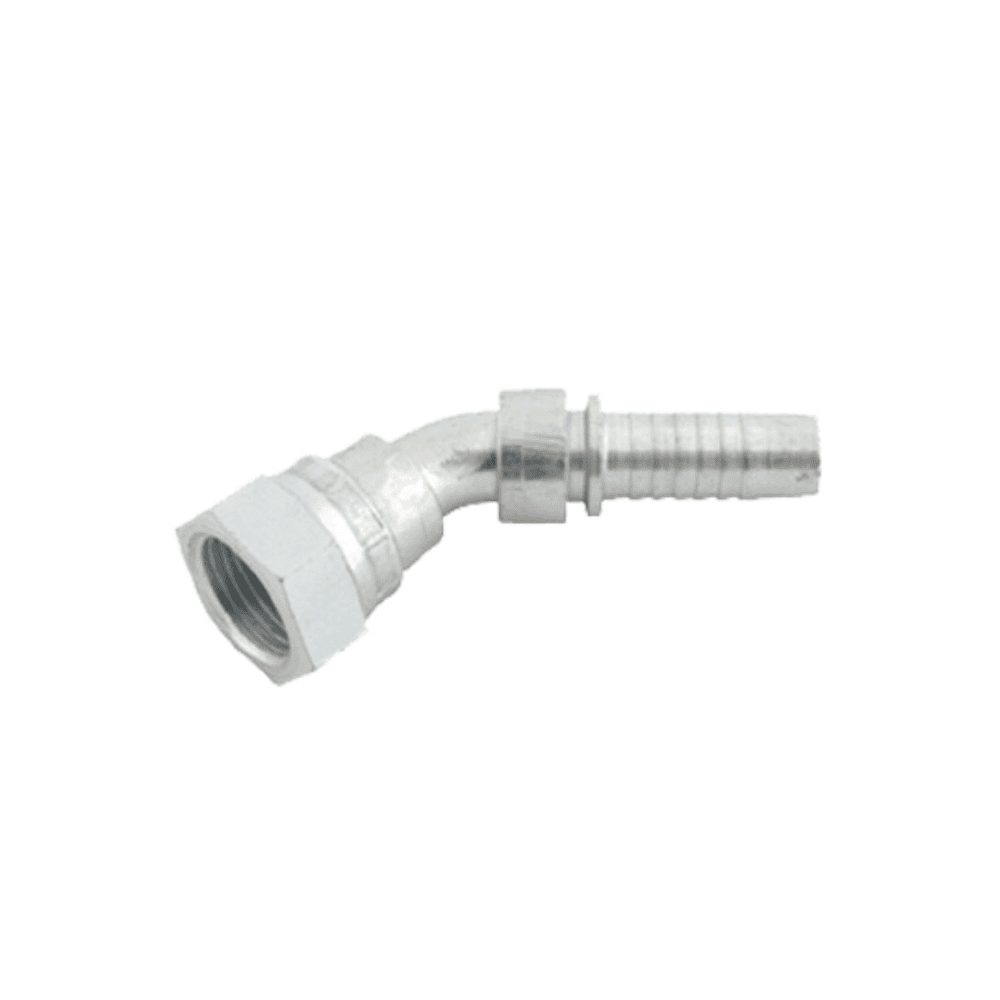

45° Toyota Female Hose Fitting (JIS Metric)
