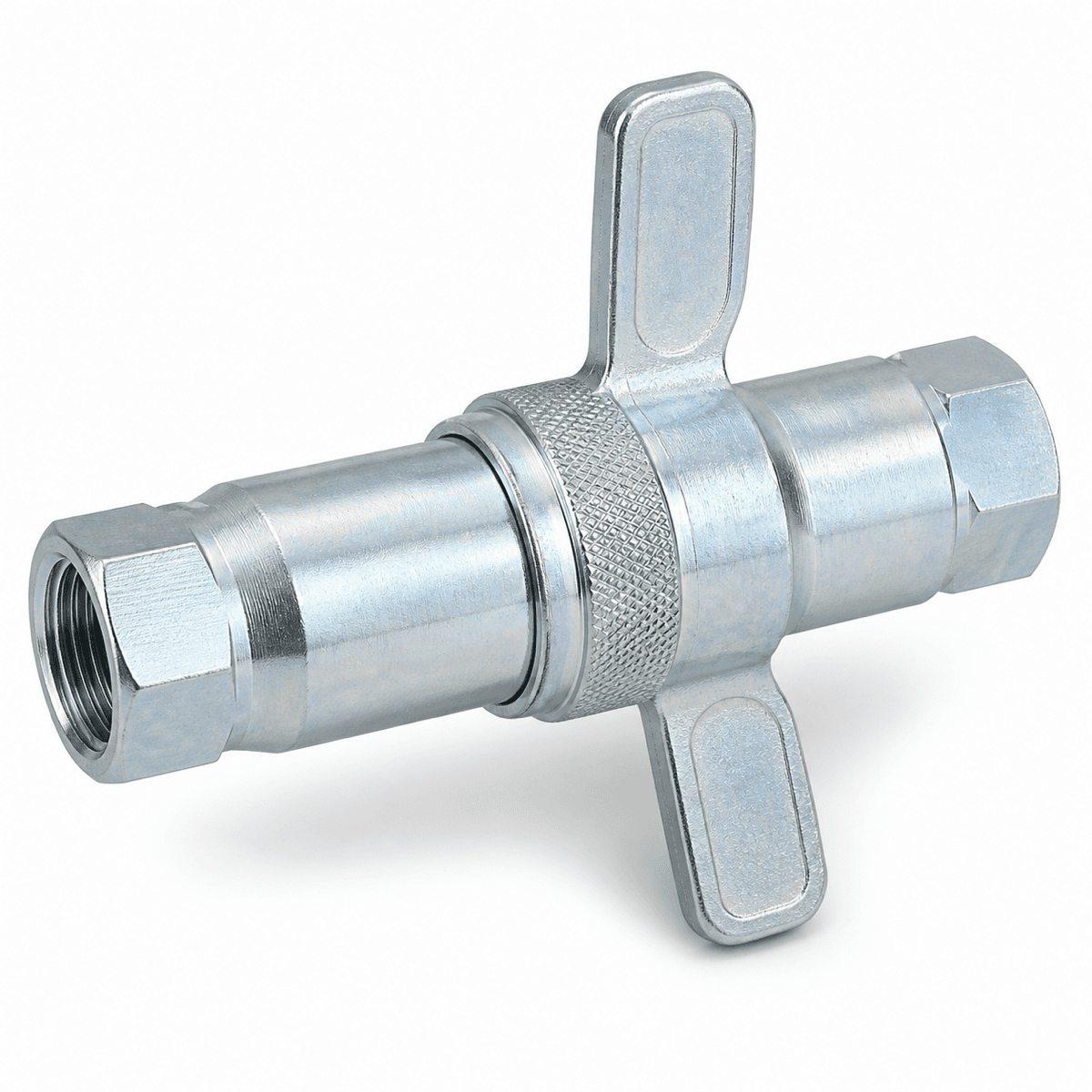

Wing Nut Hydraulic Quick Coupling — Trailer Type
Trailer-pattern screw-together hydraulic quick coupling with an extended wing nut for gloved hands — non-valved, for tipping trailer and implement circuits. 3/8", 1/2", 3/4", BSP female, BSP male.
Key features
- Series: Wing Nut Trailer (screw-together)
- Interchange Standard: Wing nut screw-together — agricultural / trailer interchange
- Application Class: Farm Hydraulic
- Valving: Non-Valved
- Connection Method: Thread-to-Connect
- Maximum Operating Pressure: 250 bar
- Series
- Wing Nut Trailer (screw-together)
- Interchange Standard
- Wing nut screw-together — agricultural / trailer interchange
- Application Class
- Farm Hydraulic
- Valving
- Non-Valved
- Available Body Sizes
- 3/8", 1/2", 3/4"
- Connection Method
- Thread-to-Connect
Product description
The Wing Nut Hydraulic Quick Coupling — Trailer Type is a screw-together (wing nut) hydraulic quick coupling for agricultural and trailer service. Trailer pattern: longer body and larger wing for connection with gloves on, commonly fitted to tipping trailers and towed implements.
Construction
- Series: Wing Nut Trailer (screw-together)
- Connection method: thread-to-connect, hand-tightened by the wing nut — no tools required
- Valving: non-valved (free flow when coupled; the line must be depressurised before disconnecting)
- Body material: carbon steel, zinc-plated
- Seals: NBR standard; Viton on request for high-temperature or aggressive fluids
- Available sizes: 3/8", 1/2", 3/4"
- Port threads: BSP female, BSP male
Performance
Rated to 250 bar working pressure with a 4:1 burst safety factor. Operating temperature -25°C to +100°C on NBR seals. The wing nut resists vibration loosening better than a push-to-connect ball latch, which is why it persists on trailer and implement lines.
How to order
Specify (a) the body size, (b) the port thread you need, (c) male half, female half, or matched pair, and (d) seal compound. Tell us the implement or trailer make on the RFQ if you are matching an existing coupling.
Companion products
For push-to-connect service see the Indus QC-7241A (ISO 7241 Series A), QC-7241B (Series B) and QC-16028 flush-face ranges in the same category. For farm tractor tips see the Indus QC-5675 range (ISO 5675).
Identification
| Parameter | Value |
|---|---|
| Series | Wing Nut Trailer (screw-together) |
| Interchange Standard | Wing nut screw-together — agricultural / trailer interchange |
| Application Class | Farm Hydraulic |
| Valving | Non-Valved |
Variants
| Parameter | Value |
|---|---|
| Available Body Sizes | 3/8", 1/2", 3/4" |
| Available Body Materials | Carbon steel, zinc-plated |
| Available Seal Materials | NBR (standard), Viton (on request) |
| Available Port Thread Types | BSP female, BSP male |
| Available Coupling Halves | Male half, female half, or matched pair |
Construction
| Parameter | Value |
|---|---|
| Connection Method | Thread-to-Connect |
| Flush Face / No-Spill | no |
| Connect Under Pressure | no |
Performance
| Parameter | Value |
|---|---|
| Maximum Operating Pressure | 250 bar |
| Minimum Burst Pressure | 1000 bar |
| Operating Temperature Min | -25 °C |
| Operating Temperature Max | 100 °C |
Shipping & lead time
What is a wing nut coupling?▾
Can it be connected under pressure?▾
Is it valved?▾
What pressure is it rated to?▾
Which port threads are available?▾
Are male and female halves sold separately?▾
Lead time?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
