What sizes are available?

6 mm to 25 mm. Specify the exact inner diameter on the RFQ — We supply multiple bore sizes per family code; lead time depends on size.

What is the maximum working pressure?

20 bar. Minimum burst pressure: 80 bar. Safety factor: 4:1.

What is the operating temperature range?

From -20°C to +100°C. Refer to the datasheet for any de-rating factors at extreme temperatures.

What is the construction (cover / lining / reinforcement)?

Cover: Red smooth extruded, oil, abrasion, ozone and weather resistant NBR/SBR (Also available with black cover). Lining/tube: Black non-conductive NBR/SBR. Reinforcement: High tensile strength textile plies.

What is the printed branding on the hose?

INDUS A104 Non Conductive Multipurpose 300. The branding is printed continuously along the hose for in-field identification — useful for cross-checking against engineering drawings and procurement specs.

Common sizes are typically 2-3 weeks ex-works. Custom assemblies (specific lengths, end fittings, certification) typically ship within 4-6 weeks. Indus expedites factory orders for urgent requirements — call out the rig name / project on the RFQ.

INDUS HYDRAULICSIH-IH-A104· MADE IN UNITED KINGDOM

Red Multi-Purpose Non-Conductive OGS Hose

Name: Red Multi-Purpose Non-Conductive OGS Hose
Brand: Indus Hydraulics
SKU: IH-IH-A104

Oil, Chemical & General-Purpose HosesEx-stock · delivery in 3 days

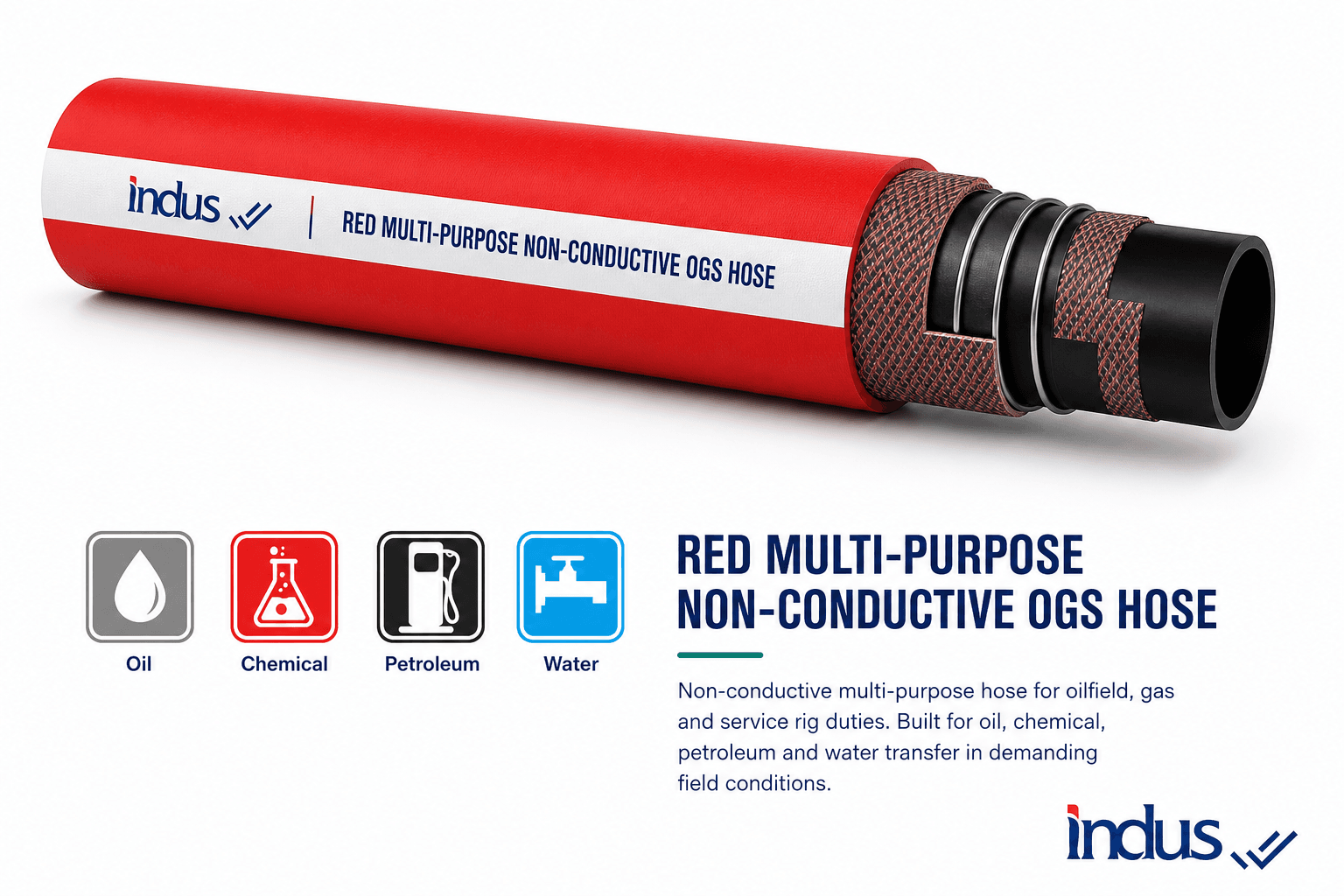

VIEW 01·Red multi-purpose non-conductive oil, gas and solvent hose, cutaway

Multi-Purpose hose for conveying a wide range of media inc. air, water, oil and other petroleum products used in steel mills, shipyards, foundries, auto plants and construction industries

Key features

Application Family: oil-chemical-purpose
Manufacturer Part Code: A104
Inner Diameter Range: 6 mm to 25 mm
Max Working Pressure: 20 bar
Operating Temperature: From -20°C to +100°C

Application Family: oil-chemical-purpose
Manufacturer Part Code: A104
Inner Diameter Range: 6 mm to 25 mm
Max Working Pressure: 20 bar
Operating Temperature: From -20°C to +100°C

Enquire on WhatsApp Email for a quotation

Ships in 24h

Order before 14:00 GST · Jebel Ali

24-month warranty

Manufacturer-backed · genuine parts

Engineering support

A real applications engineer

Product description

The Red Multi-Purpose Non-Conductive OGS Hose (part code A104) is a Oil / Chemical / General Purpose Hose from the Indus Hydraulics industrial hose range.

Application

Multi-Purpose hose for conveying a wide range of media inc. air, water, oil and other petroleum products used in steel mills, shipyards, foundries, auto plants and construction industries

Construction

Cover: Red smooth extruded, oil, abrasion, ozone and weather resistant NBR/SBR (Also available with black cover)
Lining / Tube: Black non-conductive NBR/SBR
Reinforcement: High tensile strength textile plies
Branding (printed on hose): INDUS A104 Non Conductive Multipurpose 300

Performance

Inner-diameter range: 6 mm to 25 mm
Max working pressure: 20 bar
Min burst pressure: 80 bar
Min bend radius: 55-225 mm
Weight: 0.24-0.96 kg/m
Operating temperature: From -20°C to +100°C
Safety factor: 4:1

Family context

Multi-purpose hoses for oil, fuel, mineral oil, and chemical transfer. Range covers tanker reeling, oil suction & delivery, and UHMWPE chemical hoses for aggressive media. EN 1761 / EN 12115 where applicable.

How to order

Specify (a) the inner diameter from the size range, (b) the assembly length, (c) end-fitting requirements, and (d) any special requirements such as Lloyd's certification or third-party witness testing. Indus engineering will confirm the assembly drawing on the RFQ.

Companion products

Pair with matching couplings and accessories (Cam & Groove, Boss steam couplings, hose clamps, Holedall permanently-attached fittings, hose tags, and Spiral Hose Guard / Fire Jacket protective sleeves) — full range available on quote.

Identification

Parameter	Value
Application Family	oil-chemical-purpose
Manufacturer Part Code	A104
Hose Branding (Printed)	INDUS A104 Non Conductive Multipurpose 300

Dimensions

Parameter	Value
Inner Diameter Range	6 mm to 25 mm
Min Bend Radius	55-225 mm
Weight	0.24-0.96 kg/m

Performance

Parameter	Value
Max Working Pressure	20 bar
Min Burst Pressure	80 bar
Operating Temperature	From -20°C to +100°C
Safety Factor	4:1

Construction

Parameter	Value
Cover Material	Red smooth extruded, oil, abrasion, ozone and weather resistant NBR/SBR (Also available with black cover)
Lining / Tube Material	Black non-conductive NBR/SBR
Reinforcement	High tensile strength textile plies

Shipping & lead time

Lead TimeEx-stock from Dubai — delivered within 3 working days in the UAE. Export orders ship on the lane stated for the destination.

OriginMade in United Kingdom

Sizes & part numbers

10 sizes

Indus part no.	Hose bore	O.D. (mm)	Min burst (bar)	Min bend radius (mm)	Weight (kg/m)	Working pressure (bar)
IH-IH-A104-006	1/4" · DN6	16	80	55	0.24	20
IH-IH-A104-008	5/16" · DN8	18	80	73	0.25	20
IH-IH-A104-010	3/8" · DN10	19	80	90	0.27	20
IH-IH-A104-013	1/2" · DN13	22	80	115	0.38	20
IH-IH-A104-016	5/8" · DN16	26	80	150	0.43	20
IH-IH-A104-019	3/4" · DN19	30	80	175	0.63	20
IH-IH-A104-025	1" · DN25	38	80	225	0.96	20
IH-IH-A104-032	1-1/4" · DN32	45	68	320	1.24	17
IH-IH-A104-038	1-1/2" · DN38	53	68	380	1.44	17
IH-IH-A104-051	2" · DN51	67	56	500	1.5	14

O.D. — Outside diameter of the hose, which is what a clamp or a ferrule has to close on. Min burst — Minimum burst pressure. A test figure, never a working limit — never select on it. Min bend radius — Tightest centreline radius the hose may be bent to at full working pressure. Weight — Weight of the hose per metre, as published.

Working pressure is the published rating for the hose itself. A made-up assembly is limited by its lowest-rated part, so check it against the coupling, the clamp or ferrule, and the temperature you are running at.

Cut lengths and made-up assemblies are prepared in Dubai. Tell us the bore, the length and the ends you need.

Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations

From the blog

Written about this part

Industrial hose

Oil suction and discharge hose: aromatics, vacuum and the static wire

An oil hose is chosen on three things a water hose never asks about: how aromatic the oil is, whether the hose must hold vacuum, and how static is carried away. Our range, read on those three.

5 min read

RELATED · OFTEN PAIRED WITH

Engineers viewing this also looked at

IH-IH-A110

Red Multi-Purpose Non-Conductive OGS Hose

Key features

Product description

Application

Construction

Performance

Family context

How to order

Companion products

Identification

Dimensions

Performance

Construction

Shipping & lead time

Sizes & part numbers

Written about this part

Oil suction and discharge hose: aromatics, vacuum and the static wire

Engineers viewing this also looked at

Multi-Purpose Mineral Oil Hose 10 Bar

Multi-Purpose Mineral Oil & Air Hose 20 Bar

Oil, Mud & Sea Water Suction & Delivery Hose 20 Bar

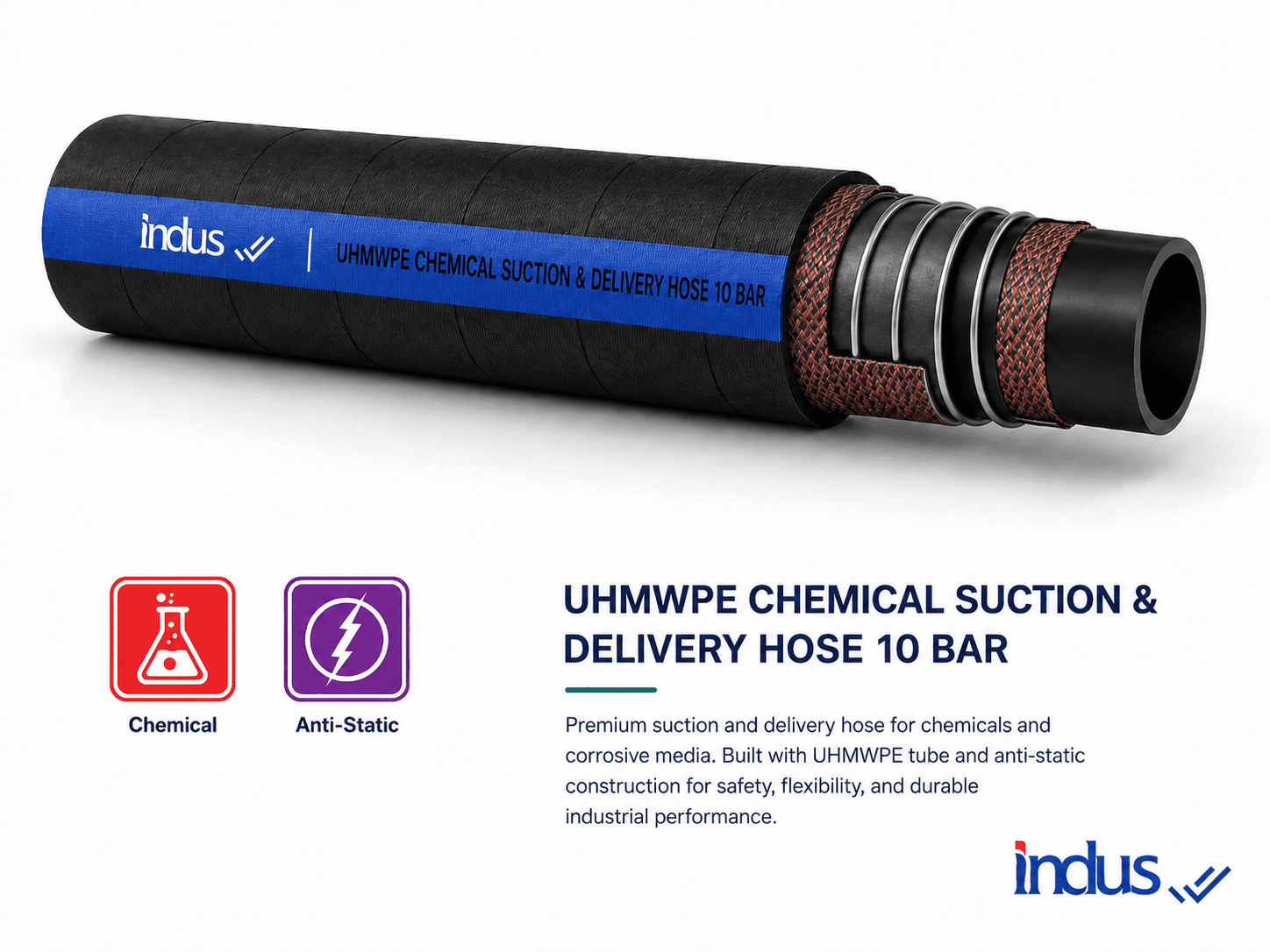

UHMWPE Chemical Suction & Delivery Hose 10 Bar

UHMWPE Chemical Suction & Delivery Hose 16 Bar

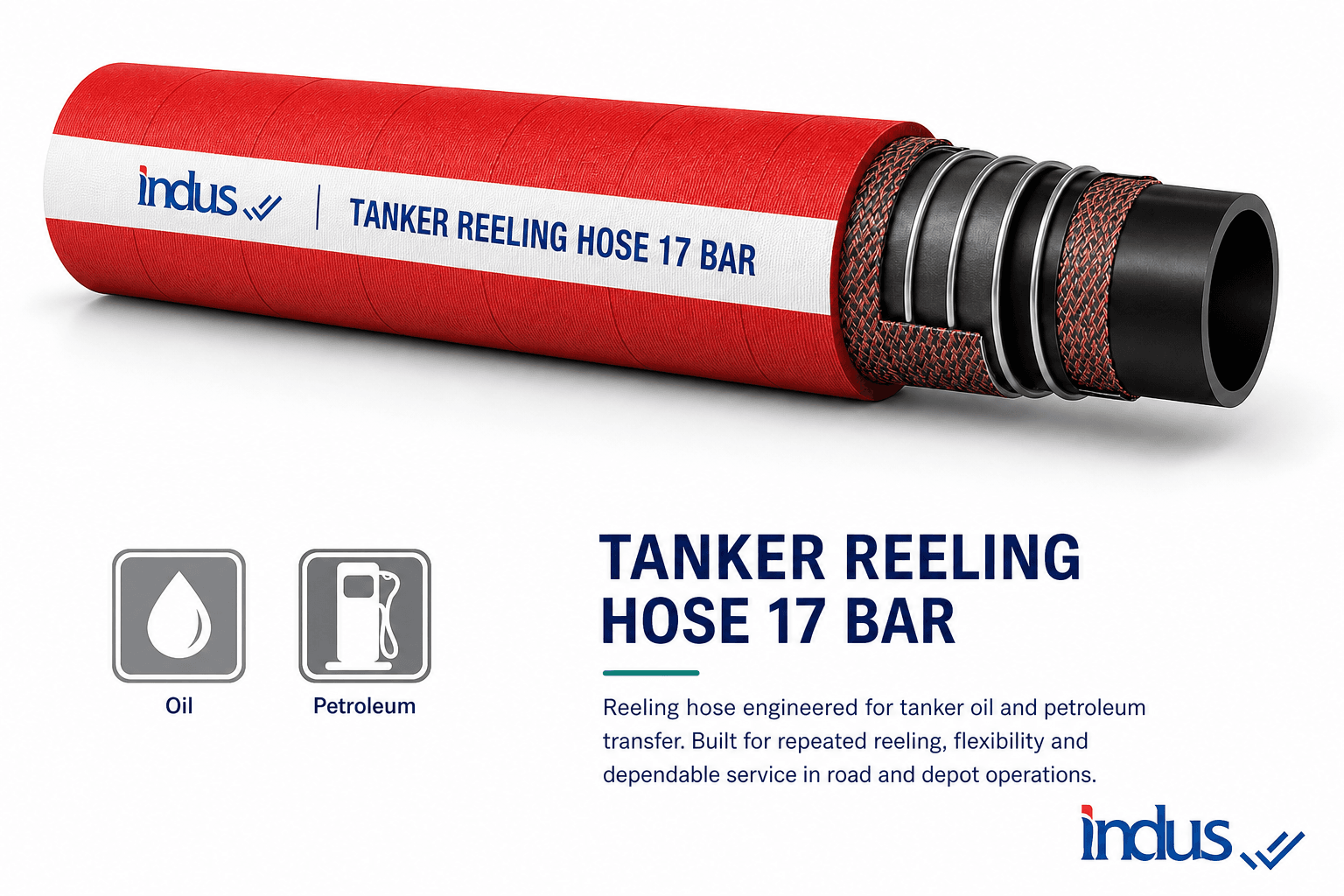

Tanker Reeling Hose 17 Bar

Oil Suction & Delivery Hose 10 Bar

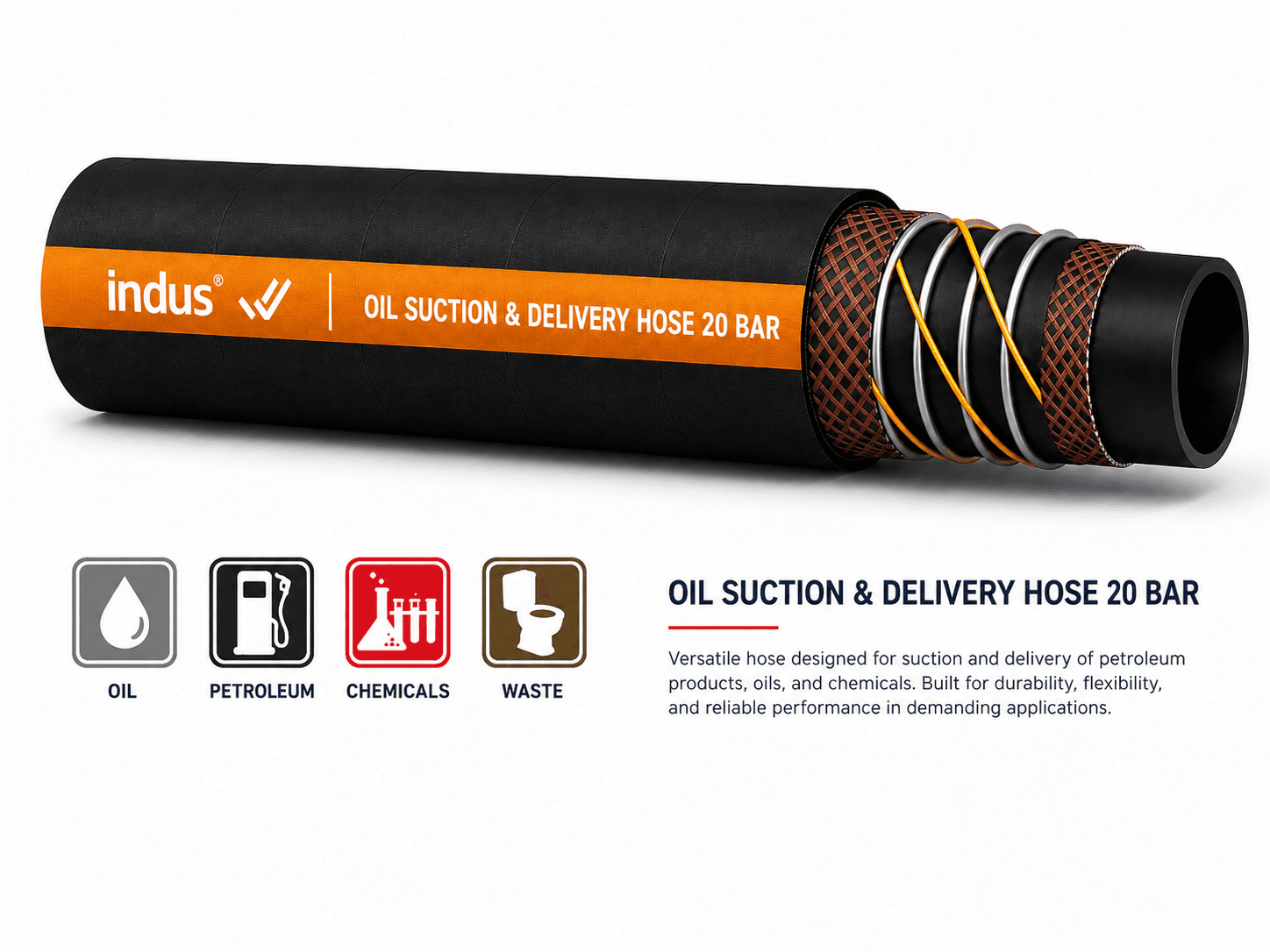

Oil Suction & Delivery Hose 20 Bar
