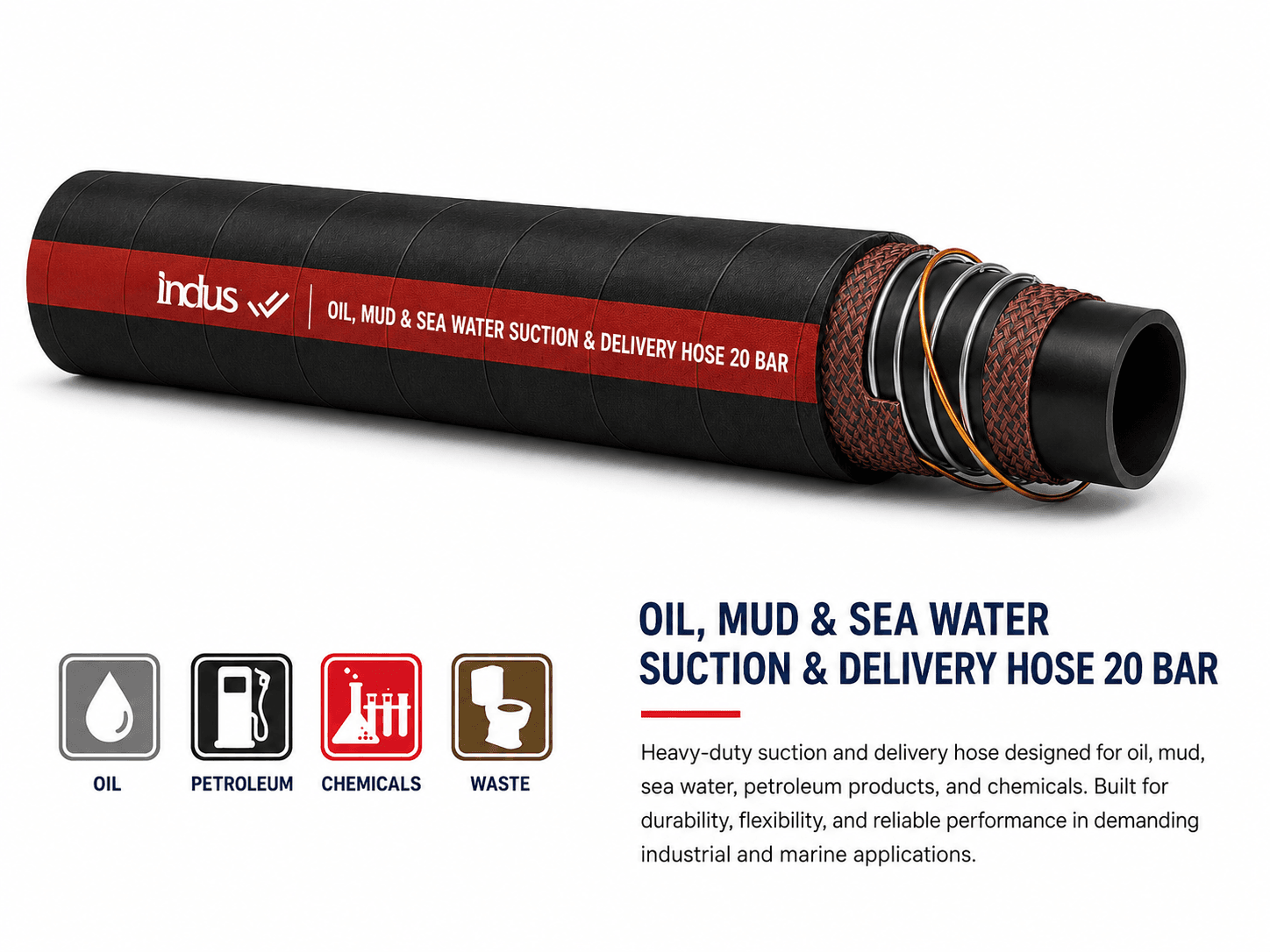

Oil, Mud & Sea Water Suction & Delivery Hose 20 Bar
Extra heavy duty hose for arduous applications including tanker loading and unloading, offshore and onshore and petrochemical plants
Key features
- Application Family: oil-chemical-purpose
- Manufacturer Part Code: A400EU
- Inner Diameter Range: 76 mm to 203 mm
- Max Working Pressure: 20 bar
- Operating Temperature: From -30°C to +90°C.
- Application Family
- oil-chemical-purpose
- Manufacturer Part Code
- A400EU
- Inner Diameter Range
- 76 mm to 203 mm
- Max Working Pressure
- 20 bar
- Operating Temperature
- From -30°C to +90°C.
Product description
The Oil, Mud & Sea Water Suction & Delivery Hose 20 Bar (part code A400EU) is a Oil / Chemical / General Purpose Hose from the Indus Hydraulics industrial hose range.
Application
Extra heavy duty hose for arduous applications including tanker loading and unloading, offshore and onshore and petrochemical plants
Construction
- Cover: Black mandrel wrap, hydrocarbon, mud, sea water, abrasion, ozone and weather resistant CR
- Lining / Tube: Black oil, mud, sea water resistant NBR suitable for 50% aromatic hydrocarbons
- Reinforcement: Multi layer high tensile strength textile plies, steel helix wire and antistatic wires
- Branding (printed on hose): INDUS LOGO, BULKSTREAM A400EU OIL MUD
Performance
- Inner-diameter range: 76 mm to 203 mm
- Max working pressure: 20 bar
- Min burst pressure: 80 bar
- Min bend radius: 380-1220 mm
- Weight: 3.90-19.30 kg/m
- Operating temperature: From -30°C to +90°C.
- Safety factor: 4:1
Family context
Multi-purpose hoses for oil, fuel, mineral oil, and chemical transfer. Range covers tanker reeling, oil suction & delivery, and UHMWPE chemical hoses for aggressive media. EN 1761 / EN 12115 where applicable.
How to order
Specify (a) the inner diameter from the size range, (b) the assembly length, (c) end-fitting requirements, and (d) any special requirements such as Lloyd's certification or third-party witness testing. Indus engineering will confirm the assembly drawing on the RFQ.
Companion products
Pair with matching couplings and accessories (Cam & Groove, Boss steam couplings, hose clamps, Holedall permanently-attached fittings, hose tags, and Spiral Hose Guard / Fire Jacket protective sleeves) — full range available on quote.
Identification
| Parameter | Value |
|---|---|
| Application Family | oil-chemical-purpose |
| Manufacturer Part Code | A400EU |
| Hose Branding (Printed) | INDUS LOGO, BULKSTREAM A400EU OIL MUD |
Dimensions
| Parameter | Value |
|---|---|
| Inner Diameter Range | 76 mm to 203 mm |
| Min Bend Radius | 380-1220 mm |
| Weight | 3.90-19.30 kg/m |
Performance
| Parameter | Value |
|---|---|
| Max Working Pressure | 20 bar |
| Min Burst Pressure | 80 bar |
| Operating Temperature | From -30°C to +90°C. |
| Safety Factor | 4:1 |
Construction
| Parameter | Value |
|---|---|
| Cover Material | Black mandrel wrap, hydrocarbon, mud, sea water, abrasion, ozone and weather resistant CR |
| Lining / Tube Material | Black oil, mud, sea water resistant NBR suitable for 50% aromatic hydrocarbons |
| Reinforcement | Multi layer high tensile strength textile plies, steel helix wire and antistatic wires |
Shipping & lead time
Sizes & part numbers
4 sizes| Indus part no. | Hose bore | O.D. (mm) | Min burst (bar) | Min bend radius (mm) | Weight (kg/m) | Working pressure (bar) |
|---|---|---|---|---|---|---|
| IH-IH-A400EU-076 | 3" · DN76 | 94 | 80 | 380 | 3.9 | 20 |
| IH-IH-A400EU-102 | 4" · DN102 | 126 | 80 | 510 | 6.9 | 20 |
| IH-IH-A400EU-152 | 6" · DN152 | 181 | 80 | 760 | 12.8 | 20 |
| IH-IH-A400EU-203 | 8" · DN203 | 235 | 80 | 1220 | 19.3 | 20 |
O.D. — Outside diameter of the hose, which is what a clamp or a ferrule has to close on. Min burst — Minimum burst pressure. A test figure, never a working limit — never select on it. Min bend radius — Tightest centreline radius the hose may be bent to at full working pressure. Weight — Weight of the hose per metre, as published.
Working pressure is the published rating for the hose itself. A made-up assembly is limited by its lowest-rated part, so check it against the coupling, the clamp or ferrule, and the temperature you are running at.
Cut lengths and made-up assemblies are prepared in Dubai. Tell us the bore, the length and the ends you need.
What is this hose used for?▾
What sizes are available?▾
What is the maximum working pressure?▾
What is the operating temperature range?▾
What is the construction (cover / lining / reinforcement)?▾
What is the printed branding on the hose?▾
Lead time?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
