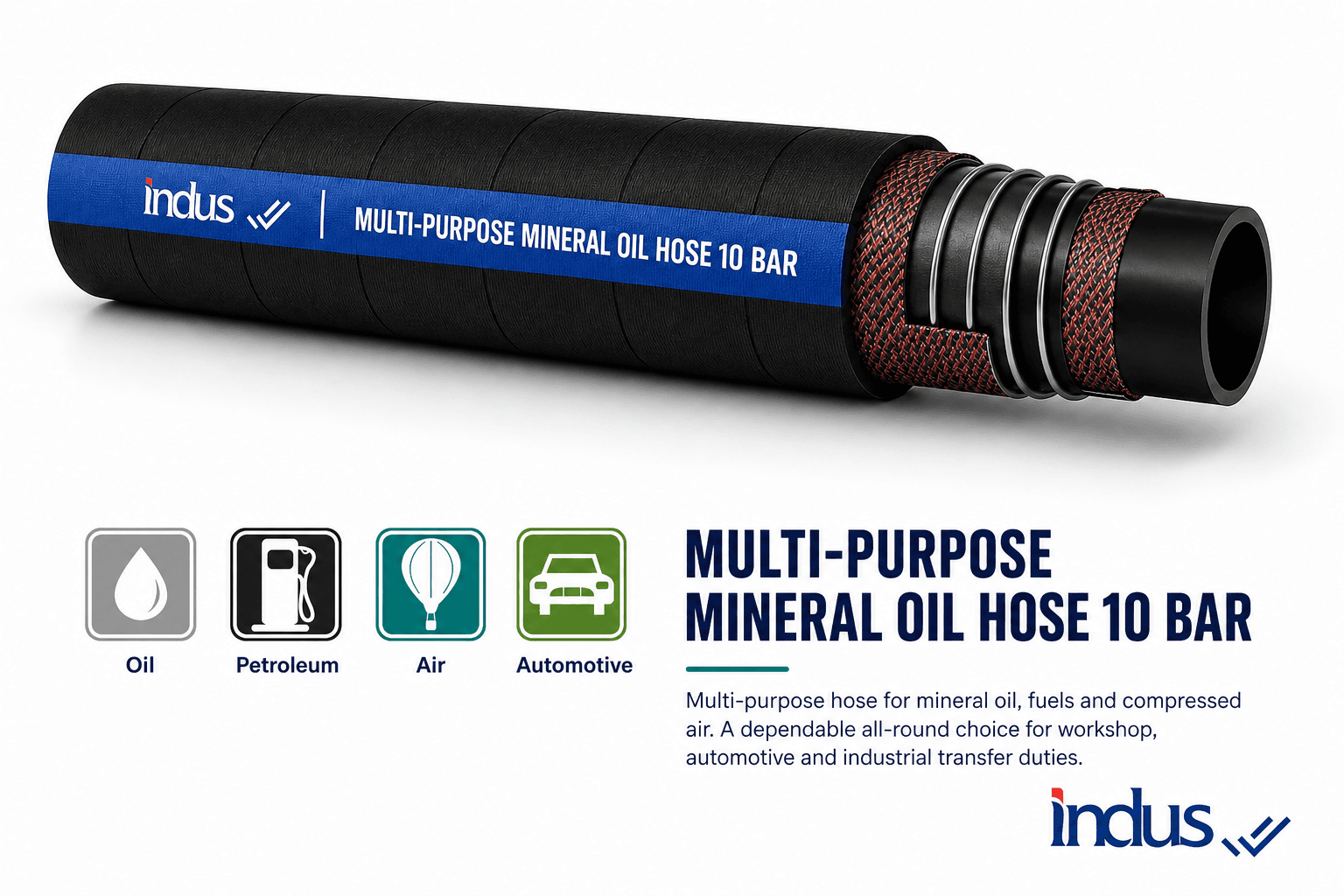

Multi-Purpose Mineral Oil Hose 10 Bar
Low pressure, electrically conductive fuel delivery hose for diesel, heating oils and petroleum including unleaded fuel for use across a variety of industries including automotive sector
Key features
- Application Family: oil-chemical-purpose
- Manufacturer Part Code: A110
- Inner Diameter Range: 5 mm to 25 mm
- Max Working Pressure: 10 bar
- Operating Temperature: From -40°C to +100°C
- Application Family
- oil-chemical-purpose
- Manufacturer Part Code
- A110
- Inner Diameter Range
- 5 mm to 25 mm
- Max Working Pressure
- 10 bar
- Operating Temperature
- From -40°C to +100°C
Product description
The Multi-Purpose Mineral Oil Hose 10 Bar (part code A110) is a Oil / Chemical / General Purpose Hose from the Indus Hydraulics industrial hose range.
Application
Low pressure, electrically conductive fuel delivery hose for diesel, heating oils and petroleum including unleaded fuel for use across a variety of industries including automotive sector
Construction
- Cover: Black smooth extruded, oil, abrasion, ozone and weather resistant NBR/SBR
- Lining / Tube: Black non-conductive NBR
- Reinforcement: High tensile strength textile plies
- Branding (printed on hose): INDUS LOGO, A110 MULTI-PURPOSE MINERAL
Performance
- Inner-diameter range: 5 mm to 25 mm
- Max working pressure: 10 bar
- Min burst pressure: 40 bar
- Min bend radius: 40-150 mm
- Weight: 0.10-0.62 kg/m
- Operating temperature: From -40°C to +100°C
- Safety factor: 4:1
Family context
Multi-purpose hoses for oil, fuel, mineral oil, and chemical transfer. Range covers tanker reeling, oil suction & delivery, and UHMWPE chemical hoses for aggressive media. EN 1761 / EN 12115 where applicable.
How to order
Specify (a) the inner diameter from the size range, (b) the assembly length, (c) end-fitting requirements, and (d) any special requirements such as Lloyd's certification or third-party witness testing. Indus engineering will confirm the assembly drawing on the RFQ.
Companion products
Pair with matching couplings and accessories (Cam & Groove, Boss steam couplings, hose clamps, Holedall permanently-attached fittings, hose tags, and Spiral Hose Guard / Fire Jacket protective sleeves) — full range available on quote.
Identification
| Parameter | Value |
|---|---|
| Application Family | oil-chemical-purpose |
| Manufacturer Part Code | A110 |
| Hose Branding (Printed) | INDUS LOGO, A110 MULTI-PURPOSE MINERAL |
Dimensions
| Parameter | Value |
|---|---|
| Inner Diameter Range | 5 mm to 25 mm |
| Min Bend Radius | 40-150 mm |
| Weight | 0.10-0.62 kg/m |
Performance
| Parameter | Value |
|---|---|
| Max Working Pressure | 10 bar |
| Min Burst Pressure | 40 bar |
| Operating Temperature | From -40°C to +100°C |
| Safety Factor | 4:1 |
Construction
| Parameter | Value |
|---|---|
| Cover Material | Black smooth extruded, oil, abrasion, ozone and weather resistant NBR/SBR |
| Lining / Tube Material | Black non-conductive NBR |
| Reinforcement | High tensile strength textile plies |
Shipping & lead time
Sizes & part numbers
8 sizes| Indus part no. | Hose bore | O.D. (mm) | Min burst (bar) | Min bend radius (mm) | Weight (kg/m) | Working pressure (bar) |
|---|---|---|---|---|---|---|
| IH-IH-A110-005 | 3/16" · DN5 | 12 | 40 | 40 | 0.1 | 10 |
| IH-IH-A110-006 | 1/4" · DN6 | 12 | 40 | 45 | 0.15 | 10 |
| IH-IH-A110-008 | 5/16" · DN8 | 14 | 40 | 55 | 0.12 | 10 |
| IH-IH-A110-010 | 3/8" · DN10 | 17 | 40 | 60 | 0.17 | 10 |
| IH-IH-A110-013 | 1/2" · DN13 | 20 | 40 | 80 | 0.24 | 10 |
| IH-IH-A110-016 | 5/8" · DN16 | 24 | 40 | 100 | 0.33 | 10 |
| IH-IH-A110-019 | 3/4" · DN19 | 28 | 40 | 120 | 0.43 | 10 |
| IH-IH-A110-025 | 1" · DN25 | 35 | 40 | 150 | 0.62 | 10 |
O.D. — Outside diameter of the hose, which is what a clamp or a ferrule has to close on. Min burst — Minimum burst pressure. A test figure, never a working limit — never select on it. Min bend radius — Tightest centreline radius the hose may be bent to at full working pressure. Weight — Weight of the hose per metre, as published.
Working pressure is the published rating for the hose itself. A made-up assembly is limited by its lowest-rated part, so check it against the coupling, the clamp or ferrule, and the temperature you are running at.
Cut lengths and made-up assemblies are prepared in Dubai. Tell us the bore, the length and the ends you need.
What is this hose used for?▾
What sizes are available?▾
What is the maximum working pressure?▾
What is the operating temperature range?▾
What is the construction (cover / lining / reinforcement)?▾
What is the printed branding on the hose?▾
Lead time?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
