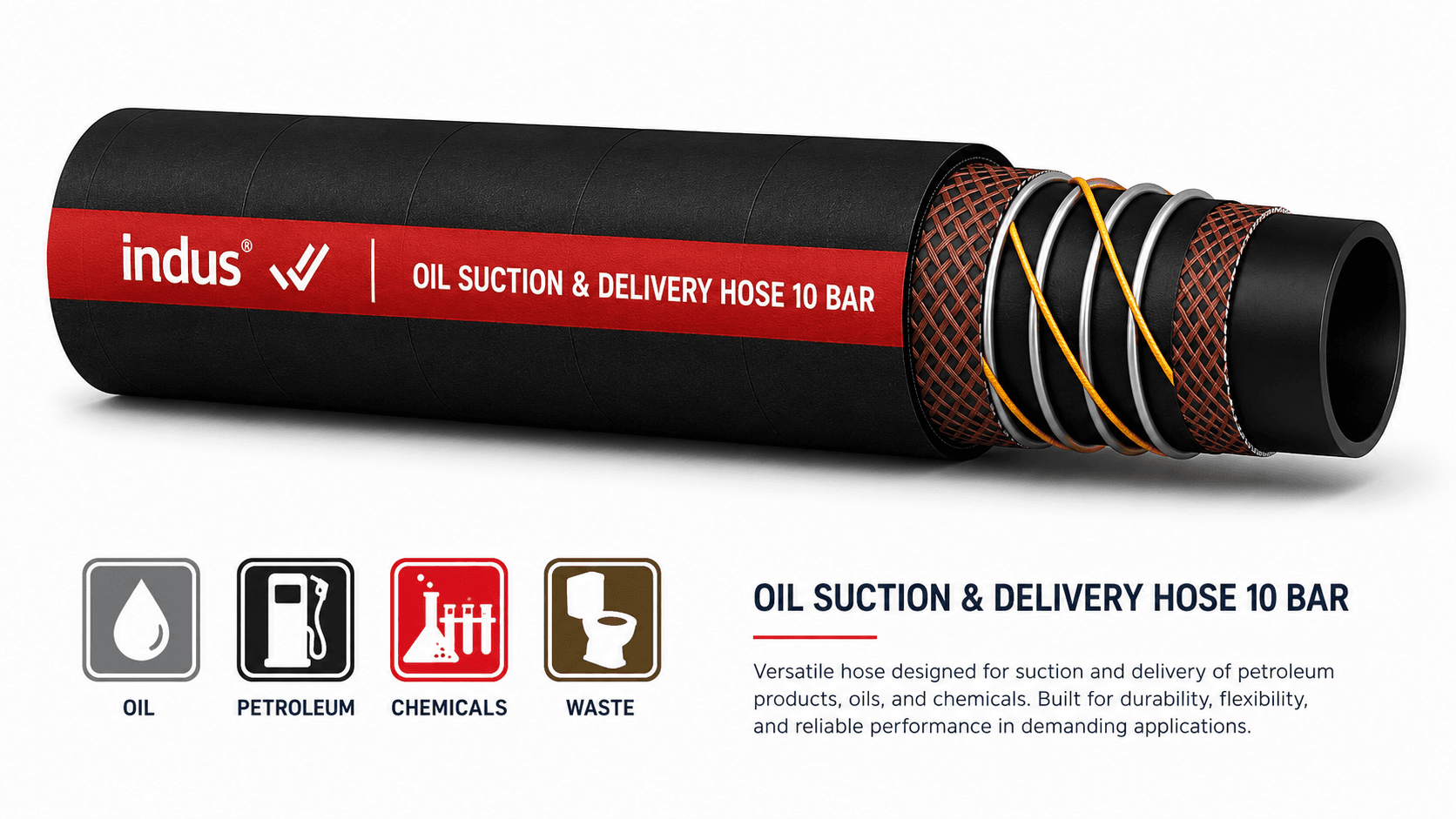

Oil Suction & Delivery Hose 10 Bar
Used in petrochemical plants and dockyards for handling unleaded fuels and hydraulic oils
Key features
- Application Family: oil-chemical-purpose
- Manufacturer Part Code: A430
- Inner Diameter Range: 25 mm to 152 mm
- Max Working Pressure: 10 bar
- Operating Temperature: From -35°C to +80°C
- Application Family
- oil-chemical-purpose
- Manufacturer Part Code
- A430
- Inner Diameter Range
- 25 mm to 152 mm
- Max Working Pressure
- 10 bar
- Operating Temperature
- From -35°C to +80°C
Product description
The Oil Suction & Delivery Hose 10 Bar (part code A430) is a Oil / Chemical / General Purpose Hose from the Indus Hydraulics industrial hose range.
Application
Used in petrochemical plants and dockyards for handling unleaded fuels and hydraulic oils
Construction
- Cover: Black mandrel wrap, oil, abrasion, ozone and weather resistant CR/NBR
- Lining / Tube: Black oil resistant NBR suitable for 50% aromatic hydrocarbons
- Reinforcement: High tensile strength textile plies, twin steel helix and anti-static wires
- Branding (printed on hose): INDUS LOGO, A430 OIL S & D 10BAR / 0.93 VAC
Performance
- Inner-diameter range: 25 mm to 152 mm
- Max working pressure: 10 bar
- Min burst pressure: 30 bar
- Min bend radius: 178-1064 mm
- Weight: 0.70-9.50 kg/m
- Operating temperature: From -35°C to +80°C
- Safety factor: 3:1
Family context
Multi-purpose hoses for oil, fuel, mineral oil, and chemical transfer. Range covers tanker reeling, oil suction & delivery, and UHMWPE chemical hoses for aggressive media. EN 1761 / EN 12115 where applicable.
How to order
Specify (a) the inner diameter from the size range, (b) the assembly length, (c) end-fitting requirements, and (d) any special requirements such as Lloyd's certification or third-party witness testing. Indus engineering will confirm the assembly drawing on the RFQ.
Companion products
Pair with matching couplings and accessories (Cam & Groove, Boss steam couplings, hose clamps, Holedall permanently-attached fittings, hose tags, and Spiral Hose Guard / Fire Jacket protective sleeves) — full range available on quote.
Identification
| Parameter | Value |
|---|---|
| Application Family | oil-chemical-purpose |
| Manufacturer Part Code | A430 |
| Hose Branding (Printed) | INDUS LOGO, A430 OIL S & D 10BAR / 0.93 VAC |
Dimensions
| Parameter | Value |
|---|---|
| Inner Diameter Range | 25 mm to 152 mm |
| Min Bend Radius | 178-1064 mm |
| Weight | 0.70-9.50 kg/m |
Performance
| Parameter | Value |
|---|---|
| Max Working Pressure | 10 bar |
| Min Burst Pressure | 30 bar |
| Operating Temperature | From -35°C to +80°C |
| Safety Factor | 3:1 |
Construction
| Parameter | Value |
|---|---|
| Cover Material | Black mandrel wrap, oil, abrasion, ozone and weather resistant CR/NBR |
| Lining / Tube Material | Black oil resistant NBR suitable for 50% aromatic hydrocarbons |
| Reinforcement | High tensile strength textile plies, twin steel helix and anti-static wires |
Shipping & lead time
Sizes & part numbers
8 sizes| Indus part no. | Hose bore | O.D. (mm) | Min burst (bar) | Min bend radius (mm) | Weight (kg/m) | Working pressure (bar) |
|---|---|---|---|---|---|---|
| IH-IH-A430-025 | 1" · DN25 | 35 | 30 | 178 | 0.7 | 10 |
| IH-IH-A430-032 | 1-1/4" · DN32 | 42 | 30 | 224 | 0.8 | 10 |
| IH-IH-A430-038 | 1-1/2" · DN38 | 47 | 30 | 266 | 0.9 | 10 |
| IH-IH-A430-051 | 2" · DN51 | 62 | 30 | 357 | 1.6 | 10 |
| IH-IH-A430-063 | 2-1/2" · DN63 | 74 | 30 | 441 | 1.9 | 10 |
| IH-IH-A430-076 | 3" · DN76 | 88 | 30 | 530 | 2.5 | 10 |
| IH-IH-A430-102 | 4" · DN102 | 114 | 30 | 714 | 3.8 | 10 |
| IH-IH-A430-152 | 6" · DN152 | 172 | 30 | 1064 | 9.5 | 10 |
O.D. — Outside diameter of the hose, which is what a clamp or a ferrule has to close on. Min burst — Minimum burst pressure. A test figure, never a working limit — never select on it. Min bend radius — Tightest centreline radius the hose may be bent to at full working pressure. Weight — Weight of the hose per metre, as published.
Working pressure is the published rating for the hose itself. A made-up assembly is limited by its lowest-rated part, so check it against the coupling, the clamp or ferrule, and the temperature you are running at.
Cut lengths and made-up assemblies are prepared in Dubai. Tell us the bore, the length and the ends you need.
What is this hose used for?▾
What sizes are available?▾
What is the maximum working pressure?▾
What is the operating temperature range?▾
What is the construction (cover / lining / reinforcement)?▾
What is the printed branding on the hose?▾
Lead time?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
