Marine Double Bollard GB/T 554-2008 Type C
Marine Double Bollard GB/T 554-2008 Type C, in 5 sizes. Indus part numbers.
Key features
- Product type: Marine Double Bollard GB/T 554-2008 Type C
- Pattern / standard: GB/T 554
- Material
- Steel plate
Product description
Bollards, cleats, fairleads and mooring springs for vessels, docks and jetties. Made to GB/T 554. Steel plate.
Sizes and ratings
5 sizes. Minimum breaking load 13 to 43 kN. Every size has its own Indus part number in the table below, with the loads in the unit the manufacturer rates them in.

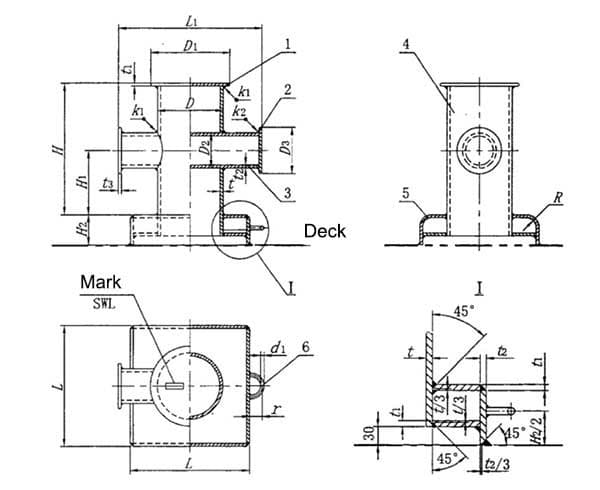

The lettered dimensions in the table refer to the dimension drawing shown with this product.
Choosing a size
Choose on the safe working load of the lines and the standard the vessel or berth is built to; the rating assumes structure that can carry it.
Ordering
Quote the Indus part number from the size table, or send the size and rating you need.
Identification
| Parameter | Value |
|---|---|
| Product type | Marine Double Bollard GB/T 554-2008 Type C |
| Pattern / standard | GB/T 554 |
| Sizes | 5 |
Performance
| Parameter | Value |
|---|---|
| Minimum breaking load | 13 to 43 kN |
Construction
| Parameter | Value |
|---|---|
| Material | Steel plate |
Shipping & lead time
Sizes & part numbers
5 sizes| Indus part no. | Size | Min breaking load (kN) | A (mm) | B (mm) | D (mm) | D1 (mm) | H (mm) | h (mm) | h1 (mm) | L (mm) | r (mm) | b (mm) | t (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IH-LR-BM-MDBG554203-DN50 | DN 50 | 13 | 180 | 100 | 50 | 65 | 115 | 9 | 26 | 310 | 20 | 32 | 6 | 4.5 |
| IH-LR-BM-MDBG554203-DN75 | DN 75 | 18 | 275 | 125 | 75 | 95 | 170 | 12 | 43 | 430 | 20 | 50 | 7 | 10.8 |
| IH-LR-BM-MDBG554203-DN100 | DN 100 | 25 | 350 | 160 | 100 | 120 | 220 | 14 | 51 | 540 | 25 | 65 | 7 | 18.6 |
| IH-LR-BM-MDBG554203-DN125 | DN 125 | 34 | 430 | 200 | 125 | 145 | 275 | 15 | 60 | 676 | 28 | 80 | 9 | 34.3 |
| IH-LR-BM-MDBG554203-DN150 | DN 150 | 43 | 500 | 230 | 150 | 170 | 330 | 16 | 70 | 800 | 35 | 100 | 9 | 49 |
Size — Nominal size as the manufacturer states it. Min breaking load — Minimum breaking load. A test figure — never lift to it. A — Dimension A on the manufacturer dimension drawing. B — Dimension B on the manufacturer dimension drawing. D — Dimension D on the manufacturer dimension drawing. D1 — Dimension D1 on the manufacturer dimension drawing. H — Dimension H on the manufacturer dimension drawing. h — Dimension h on the manufacturer dimension drawing. h1 — Dimension h1 on the manufacturer dimension drawing. L — Dimension L on the manufacturer dimension drawing. r — Dimension r on the manufacturer dimension drawing. b — Dimension b on the manufacturer dimension drawing. t — Dimension t on the manufacturer dimension drawing. Weight — Weight as the manufacturer publishes it. Ask us for the dimension drawing if you need it stamped.
WLL is the most the part may carry in service. Proof and breaking loads are test figures — never lift to them. Each load is shown in the unit the manufacturer rates the part in, and a size ships with the manufacturer’s test certificate.
This range is published with a breaking load only, not a working load limit. Tell us the duty before using it to lift, and we will confirm a rating or recommend a rated part.
What sizes does the marine double bollard GB/T 554-2008 type c come in?▾
What does the nominal size of a marine bollard mean?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
