Marine Double Cross Bollard GB/T 554-1996 Type E
Marine Double Cross Bollard GB/T 554-1996 Type E, in 9 sizes. Indus part numbers.
Key features
- Product type: Marine Double Cross Bollard GB/T 554-1996 Type E
- Pattern / standard: GB/T 554
- Material
- Steel plate
Product description
Bollards, cleats, fairleads and mooring springs for vessels, docks and jetties. Made to GB/T 554. Steel plate.
Sizes
9 sizes. Every size has its own Indus part number in the table below.
The lettered dimensions in the table refer to the dimension drawing shown with this product.
Ordering
Quote the Indus part number from the size table, or send the size and rating you need.
Identification
| Parameter | Value |
|---|---|
| Product type | Marine Double Cross Bollard GB/T 554-1996 Type E |
| Pattern / standard | GB/T 554 |
| Sizes | 9 |
Construction
| Parameter | Value |
|---|---|
| Material | Steel plate |
Shipping & lead time
Sizes & part numbers
9 sizes| Indus part no. | Size | Rope size | A (mm) | B (mm) | D (mm) | D1 (mm) | H (mm) | h (mm) | h1 (mm) | L (mm) | r (mm) | d (mm) | A1 (mm) | A2 (mm) | d1 (mm) | h2 (mm) | t (mm) | t1 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IH-LR-BM-MDCBG5541-DN50 | DN 50 | 8.7 / 75 / 16 | 180 | 130 | 50 | 65 | 190 | 8 | 85 | 310 | 20 | 32 | 270 | 90 | 40 | — | 6 | 4 | 7 |
| IH-LR-BM-MDCBG5541-DN75 | DN 75 | 11.5 / 90 / 20 | 275 | 170 | 75 | 95 | 290 | 10 | 130 | 450 | 25 | 48 | 400 | 125 | 56 | — | 7 | 5 | 16 |
| IH-LR-BM-MDCBG5541-DN100 | DN 100 | 13.5 / 100 / 24 | 350 | 200 | 100 | 120 | 350 | 12 | 160 | 550 | 28 | 65 | 494 | 144 | 75 | — | 7 | 5 | 27 |
| IH-LR-BM-MDCBG5541-DN125 | DN 125 | 15.5 / 125 / 28 | 425 | 240 | 125 | 145 | 425 | 14 | 195 | 660 | 35 | 80 | 590 | 170 | 95 | — | 9 | 7 | 49 |
| IH-LR-BM-MDCBG5541-DN150 | DN 150 | 17.5 / 150 / 30 | 500 | 270 | 150 | 170 | 500 | 16 | 210 | 770 | 35 | 90 | 700 | 200 | 110 | — | 9 | 7 | 71 |
| IH-LR-BM-MDCBG5541-DN175 | DN 175 | 19.5 / 175 / 36 | 530 | 320 | 180 | 200 | 550 | 18 | 240 | 850 | 38 | 110 | 774 | 244 | 125 | — | 10 | 8 | 103 |
| IH-LR-BM-MDCBG5541-DN200 | DN 200 | 22.5 / 200 / 40 | 600 | 360 | 203 | 225 | 795 | 145 | 275 | 960 | 20 | 130 | — | — | 145 | 60 | 12 | 9 | 181 |
| IH-LR-BM-MDCBG5541-DN250 | DN 250 | 26 / 225 / 48 | 750 | 350 | 245 | 280 | 855 | 155 | 350 | 1,200 | 25 | 159 | — | — | 180 | 60 | 14 | 12 | 310 |
| IH-LR-BM-MDCBG5541-DN300 | DN 300 | 30.5 / 250 / 56 | 900 | 540 | 290 | 330 | 1,160 | 180 | 420 | 1,440 | 30 | 194 | — | — | 215 | 73 | 16 | 14 | 576 |
Size — Nominal size as the manufacturer states it. Rope size — Rope diameter the sheave is made for. A — Dimension A on the manufacturer dimension drawing. B — Dimension B on the manufacturer dimension drawing. D — Dimension D on the manufacturer dimension drawing. D1 — Dimension D1 on the manufacturer dimension drawing. H — Dimension H on the manufacturer dimension drawing. h — Dimension h on the manufacturer dimension drawing. h1 — Dimension h1 on the manufacturer dimension drawing. L — Dimension L on the manufacturer dimension drawing. r — Dimension r on the manufacturer dimension drawing. d — Dimension d on the manufacturer dimension drawing. A1 — Dimension A1 on the manufacturer dimension drawing. A2 — Dimension A2 on the manufacturer dimension drawing. d1 — Dimension d1 on the manufacturer dimension drawing. h2 — Dimension h2 on the manufacturer dimension drawing. t — Dimension t on the manufacturer dimension drawing. t1 — Dimension t1 on the manufacturer dimension drawing. Weight — Weight as the manufacturer publishes it. Ask us for the dimension drawing if you need it stamped.
WLL is the most the part may carry in service. Proof and breaking loads are test figures — never lift to them. Each load is shown in the unit the manufacturer rates the part in, and a size ships with the manufacturer’s test certificate.
What sizes does the marine double cross bollard GB/T 554-1996 type e come in?▾
What does the nominal size of a marine bollard mean?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
The same part, in the designations used across European and Gulf trade catalogues.
- de
- Kreuzstück
- fr
- croix
- es
- cruz
- it
- croce
Engineers viewing this also looked at
Marine Double Cross Bollard GB/T 554-2008 Type DH
Marine Double Cross Bollard GB/T 554-2008 Type DL
Marine Single Cross Bollard CBT3845-2013
Marine Single Cross Bollard GB 10106 Type A
Marine Single Cross Bollard GB 10106 Type B
Marine Single Cross Bollard JIS F2804-1976

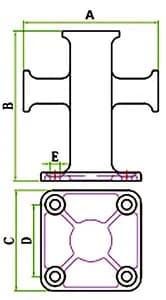

Stainless Steel Marine Single Cross Bollard DR Type
