Marine Double Bollard GB/T 554-2008 Type A
Marine Double Bollard GB/T 554-2008 Type A, in 14 sizes, WLL 29 to 981 kN. Indus part numbers.
Key features
- Product type: Marine Double Bollard GB/T 554-2008 Type A
- Pattern / standard: GB/T 554
- Working load limit: 29 to 981 kN
- Working load limit
- 29 to 981 kN
- Material
- Steel plate
Product description
Bollards, cleats, fairleads and mooring springs for vessels, docks and jetties. Made to GB/T 554. Steel plate.
Sizes and ratings
14 sizes. Working load limit 29 to 981 kN. Every size has its own Indus part number in the table below, with the loads in the unit the manufacturer rates them in.
The lettered dimensions in the table refer to the dimension drawing shown with this product.
Choosing a size
Choose on the safe working load of the lines and the standard the vessel or berth is built to; the rating assumes structure that can carry it.
Ordering
Quote the Indus part number from the size table, or send the size and rating you need.
Identification
| Parameter | Value |
|---|---|
| Product type | Marine Double Bollard GB/T 554-2008 Type A |
| Pattern / standard | GB/T 554 |
| Sizes | 14 |
Performance
| Parameter | Value |
|---|---|
| Working load limit | 29 to 981 kN |
Construction
| Parameter | Value |
|---|---|
| Material | Steel plate |
Shipping & lead time
Sizes & part numbers
14 sizes| Indus part no. | Size | WLL (kN) | A (mm) | B (mm) | D (mm) | D1 (mm) | H (mm) | h (mm) | k (mm) | L (mm) | R (mm) | l (mm) | t (mm) | t1 (mm) | t2 (mm) | t3 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IH-LR-BM-MDBG55420-DN100 | DN 100 | 29 | 250 | 165 | 114 | 145 | 196 | 50 | 4 | 445 | 15 | 70 | 10 | 6 | 7 | 6 | 19 |
| IH-LR-BM-MDBG55420-DN125 | DN 125 | 39 | 315 | 195 | 140 | 180 | 246 | 60 | 4 | 540 | 15 | 100 | 10 | 6 | 8 | 6 | 29 |
| IH-LR-BM-MDBG55420-DN160 | DN 160 | 49 | 400 | 225 | 168 | 210 | 316 | 70 | 4 | 670 | 20 | 145 | 10 | 6 | 9 | 6 | 45 |
| IH-LR-BM-MDBG55420-DN200 | DN 200 | 78 | 500 | 290 | 219 | 270 | 378 | 85 | 6 | 860 | 25 | 160 | 10 | 8 | 9 | 8 | 80 |
| IH-LR-BM-MDBG55420-DN250 | DN 250 | 118 | 630 | 360 | 273 | 335 | 470 | 100 | 8 | 1,065 | 30 | 215 | 11 | 10 | 9 | 10 | 141 |
| IH-LR-BM-MDBG55420-DN315 | DN 315 | 196 | 800 | 430 | 325 | 390 | 597 | 125 | 10 | 1,300 | 35 | 325 | 15 | 12 | 9 | 12 | 264 |
| IH-LR-BM-MDBG55420-DN355 | DN 355 | 255 | 890 | 480 | 351 | 420 | 663 | 145 | 10 | 1,475 | 40 | 360 | 17 | 13 | 12 | 13 | 358 |
| IH-LR-BM-MDBG55420-DN400 | DN 400 | 314 | 1,000 | 550 | 402 | 480 | 749 | 160 | 10 | 1,630 | 45 | 400 | 18 | 14 | 12 | 14 | 499 |
| IH-LR-BM-MDBG55420-DN450 | DN 450 | 382 | 1,130 | 620 | 450 | 545 | 841 | 170 | 12 | 1,840 | 50 | 450 | 19 | 16 | 12 | 16 | 680 |
| IH-LR-BM-MDBG55420-DN500 | DN 500 | 451 | 1,250 | 690 | 508 | 610 | 928 | 190 | 12 | 2,040 | 55 | 500 | 20 | 18 | 12 | 18 | 911 |
| IH-LR-BM-MDBG55420-DN560 | DN 560 | 549 | 1,380 | 750 | 560 | 670 | 1,025 | 210 | 14 | 2,240 | 60 | 560 | 22 | 20 | 12 | 20 | 1,208 |
| IH-LR-BM-MDBG55420-DN630 | DN 630 | 686 | 1,570 | 820 | 610 | 730 | 1,152 | 225 | 14 | 2,510 | 70 | 680 | 24 | 22 | 12 | 22 | 1,601 |
| IH-LR-BM-MDBG55420-DN710 | DN 710 | 804 | 1,750 | 960 | 712 | 840 | 1,294 | 260 | 16 | 2,840 | 80 | 710 | 25 | 24 | 12 | 24 | 2,252 |
| IH-LR-BM-MDBG55420-DN800 | DN 800 | 981 | 2,000 | 1,100 | 813 | 940 | 1,480 | 295 | 16 | 3,240 | 80 | 810 | 26 | 25 | 12 | 25 | 3,071 |
Size — Nominal size as the manufacturer states it. WLL — Working load limit — the most the part may carry in service, as the manufacturer rates it. A — Dimension A on the manufacturer dimension drawing. B — Dimension B on the manufacturer dimension drawing. D — Dimension D on the manufacturer dimension drawing. D1 — Dimension D1 on the manufacturer dimension drawing. H — Dimension H on the manufacturer dimension drawing. h — Dimension h on the manufacturer dimension drawing. k — Dimension k on the manufacturer dimension drawing. L — Dimension L on the manufacturer dimension drawing. R — Dimension R on the manufacturer dimension drawing. l — Dimension l on the manufacturer dimension drawing. t — Dimension t on the manufacturer dimension drawing. t1 — Dimension t1 on the manufacturer dimension drawing. t2 — Dimension t2 on the manufacturer dimension drawing. t3 — Dimension t3 on the manufacturer dimension drawing. Weight — Weight as the manufacturer publishes it. Ask us for the dimension drawing if you need it stamped.
WLL is the most the part may carry in service. Proof and breaking loads are test figures — never lift to them. Each load is shown in the unit the manufacturer rates the part in, and a size ships with the manufacturer’s test certificate.
What sizes does the marine double bollard GB/T 554-2008 type a come in?▾
What is the working load limit?▾
What does the nominal size of a marine bollard mean?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
Engineers viewing this also looked at
Marine Double Bollard GB/T 554-2008 Type B
Marine Double Bollard GB/T 554-2008 Type C

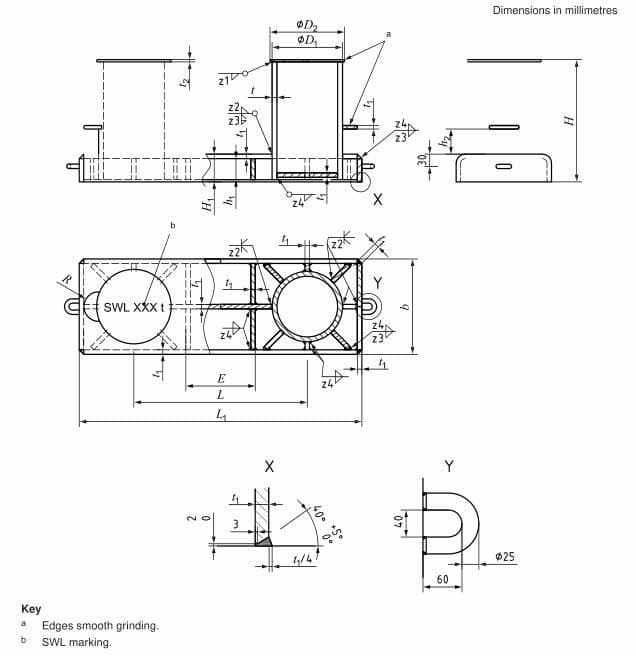

Marine Double Bollard ISO 13795 Type B

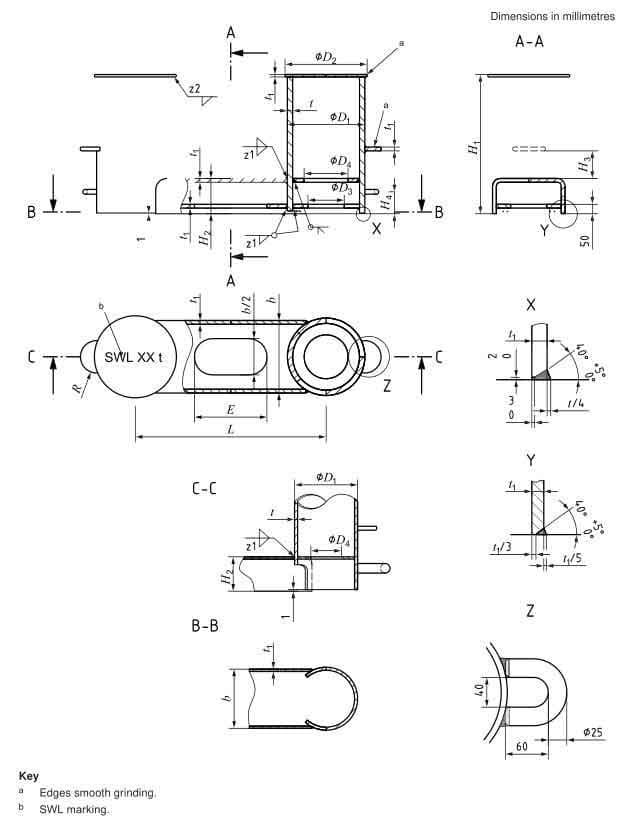

Marine Double Bollard ISO 13795 Type A
Marine Double Bollard JIS F2001-1995

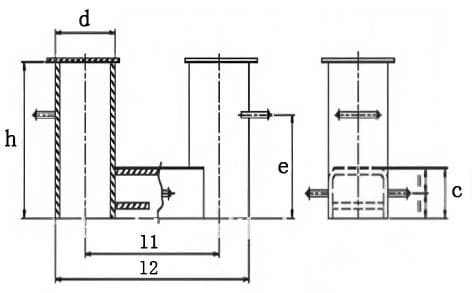

Marine Double Bollard NS 2584
