Double Loop Chain — US Standard Sizes

Double Loop Chain, in 18 sizes, No. 5 to No. 6/0. Not for overhead lifting. Indus part numbers, manufacturer's test certificate.
Key features
- Product type: Double Loop Chain
- Size range: No. 5 to No. 6/0
- Size range
- No. 5 to No. 6/0
Product description
Commercial and transport chain for tie-down, towing and general duty — not for overhead lifting.
Sizes
18 sizes, No. 5 to No. 6/0. Every size has its own Indus part number in the table below.
Choosing a size
For overhead lifting use Grade 80 or Grade 100 alloy chain instead.
Ordering
Quote the Indus part number from the size table, or send the size you need. Each consignment ships with the manufacturer's test certificate; say on the RFQ if your site needs anything more.
Identification
| Parameter | Value |
|---|---|
| Product type | Double Loop Chain |
| Sizes | 18 |
Dimensions
| Parameter | Value |
|---|---|
| Size range | No. 5 to No. 6/0 |
Compliance
| Parameter | Value |
|---|---|
| Certification | Manufacturer's test certificate |
Shipping & lead time
Sizes & part numbers
18 sizes- Indus part no.IH-LR-CH-DLC-N5
- Size
- No. 5
- Material dia. (mm)
- 1.6
- Inside length (mm)
- 23.4
- Outside width (mm)
- 7
- Indus part no.IH-LR-CH-DLC-N4
- Size
- No. 4
- Material dia. (mm)
- 1.8
- Inside length (mm)
- 24.4
- Outside width (mm)
- 8
- Indus part no.IH-LR-CH-DLC-N4L
- Size
- No. 4, long link
- Material dia. (mm)
- 1.8
- Inside length (mm)
- 30.5
- Outside width (mm)
- 8
- Indus part no.IH-LR-CH-DLC-N3
- Size
- No. 3
- Material dia. (mm)
- 2
- Inside length (mm)
- 28
- Outside width (mm)
- 9
- Indus part no.IH-LR-CH-DLC-N3Z
- Size
- No. 3Z
- Material dia. (mm)
- 2
- Inside length (mm)
- 36.3
- Outside width (mm)
- 9
- Indus part no.IH-LR-CH-DLC-N3L
- Size
- No. 3, long link
- Material dia. (mm)
- 2
- Inside length (mm)
- 38
- Outside width (mm)
- 10.5
- Indus part no.IH-LR-CH-DLC-N2
- Size
- No. 2
- Material dia. (mm)
- 2.3
- Inside length (mm)
- 34
- Outside width (mm)
- 10
- Indus part no.IH-LR-CH-DLC-N1
- Size
- No. 1
- Material dia. (mm)
- 2.7
- Inside length (mm)
- 39.5
- Outside width (mm)
- 12
Show all 18 sizesShow fewer sizes
- Indus part no.IH-LR-CH-DLC-N1Z
- Size
- No. 1Z
- Material dia. (mm)
- 2.7
- Inside length (mm)
- 49
- Outside width (mm)
- 13.5
- Indus part no.IH-LR-CH-DLC-N1L
- Size
- No. 1, long link
- Material dia. (mm)
- 2.7
- Inside length (mm)
- 52
- Outside width (mm)
- 12
- Indus part no.IH-LR-CH-DLC-N1-0
- Size
- No. 1/0
- Material dia. (mm)
- 3
- Inside length (mm)
- 45.5
- Outside width (mm)
- 14
- Indus part no.IH-LR-CH-DLC-N1-0L
- Size
- No. 1/0, long link
- Material dia. (mm)
- 3
- Inside length (mm)
- 56
- Outside width (mm)
- 14
- Indus part no.IH-LR-CH-DLC-N2-0
- Size
- No. 2/0
- Material dia. (mm)
- 3.4
- Inside length (mm)
- 46.5
- Outside width (mm)
- 15.5
- Indus part no.IH-LR-CH-DLC-N2-0Z
- Size
- No. 2/0Z
- Material dia. (mm)
- 3.4
- Inside length (mm)
- 53
- Outside width (mm)
- 15.5
- Indus part no.IH-LR-CH-DLC-N2-0L
- Size
- No. 2/0, long link
- Material dia. (mm)
- 3.4
- Inside length (mm)
- 57
- Outside width (mm)
- 15.5
- Indus part no.IH-LR-CH-DLC-N3-0
- Size
- No. 3/0
- Material dia. (mm)
- 3.8
- Inside length (mm)
- 55.5
- Outside width (mm)
- 17
- Indus part no.IH-LR-CH-DLC-N4-0
- Size
- No. 4/0
- Material dia. (mm)
- 4.1
- Inside length (mm)
- 56
- Outside width (mm)
- 19
- Indus part no.IH-LR-CH-DLC-N6-0
- Size
- No. 6/0
- Material dia. (mm)
- 4.9
- Inside length (mm)
- 74
- Outside width (mm)
- 21

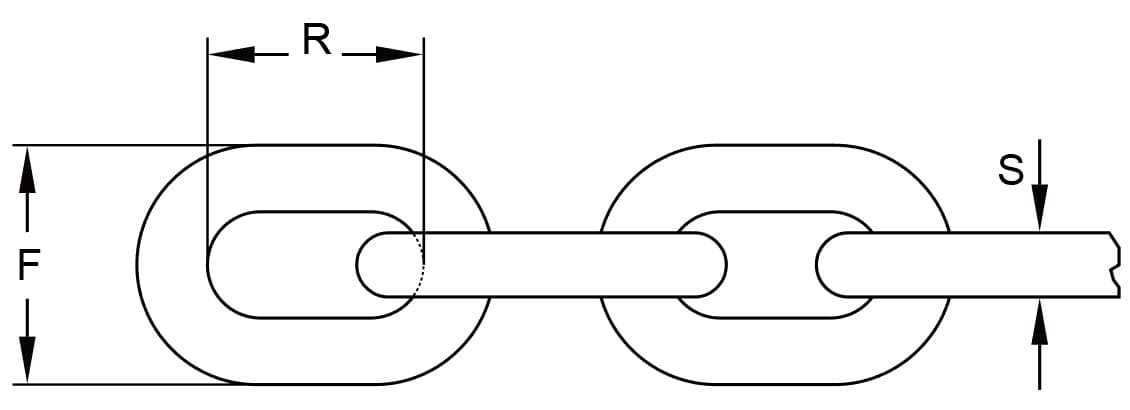

Size — Nominal size as the manufacturer states it. Material dia. — Diameter of the link or bar stock. Inside length — Inside length of the link or bow. Outside width — Outside width of the link. Ask us for the dimension drawing if you need it stamped.
WLL is the most the part may carry in service. Proof and breaking loads are test figures — never lift to them. Each load is shown in the unit the manufacturer rates the part in, and a size ships with the manufacturer’s test certificate.
