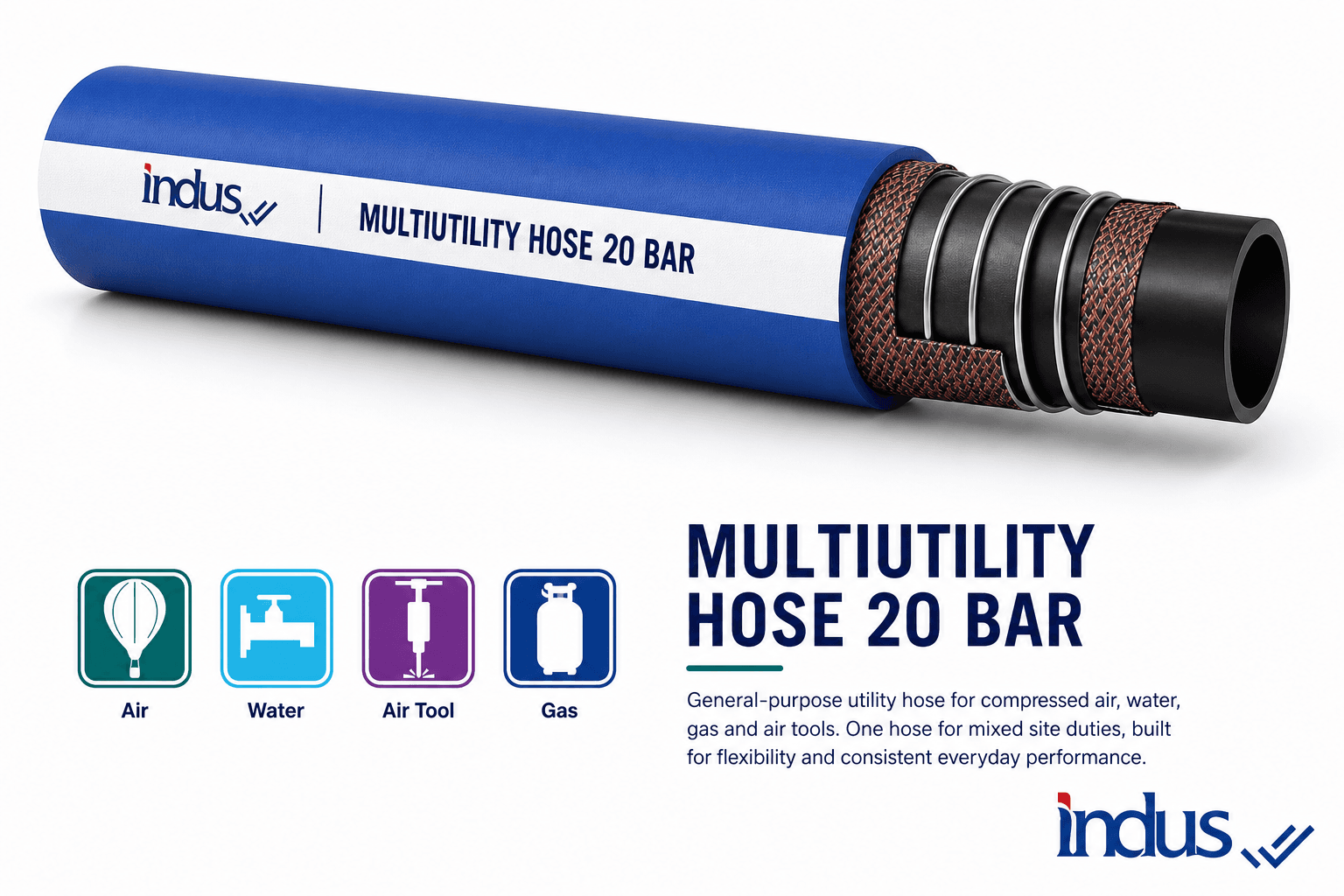

Blue Multi Utility Hose 20 Bar

The Blue Multi Utility Hose 20 Bar (part code A103HP) is a Air / Water Hose from the Indus Hydraulics industrial hose range.

Application

Multi-purpose hose used in steel mills, shipyard, foundries, automotive and construction industries.

Construction

• Cover: Blue smooth extruded, oil mist, abrasion, ozone and weather resistant EPDM/SBR
• Lining / Tube: Black extruded SBR/NR oil mist resistant
• Reinforcement: High tensile strength textile plies
• Branding (printed on hose): INDUS A103HP Multi Utility 20 BAR SF 3:1

Performance

• Inner-diameter range: 19 mm to 25 mm
• Max working pressure: 20 bar
• Min burst pressure: 60 bar
• Min bend radius: 190-250 mm
• Weight: 0.65-0.88 kg/m
• Operating temperature: From -20°C to +90°C
• Safety factor: 3:1

Family context

Air & water hoses for compressed air, pneumatic tools, water transfer, and general industrial utility — typically 20 bar working pressure with EPDM/SBR rubber tube and textile reinforcement. BS 5118/2, ISO 2398.

How to order

Specify (a) the inner diameter from the size range, (b) the assembly length, (c) end-fitting requirements, and (d) any special requirements such as Lloyd's certification or third-party witness testing. Indus engineering will confirm the assembly drawing on the RFQ.

Companion products

Pair with matching couplings and accessories (Cam & Groove, Boss steam couplings, hose clamps, Holedall permanently-attached fittings, hose tags, and Spiral Hose Guard / Fire Jacket protective sleeves) — full range available on quote.
