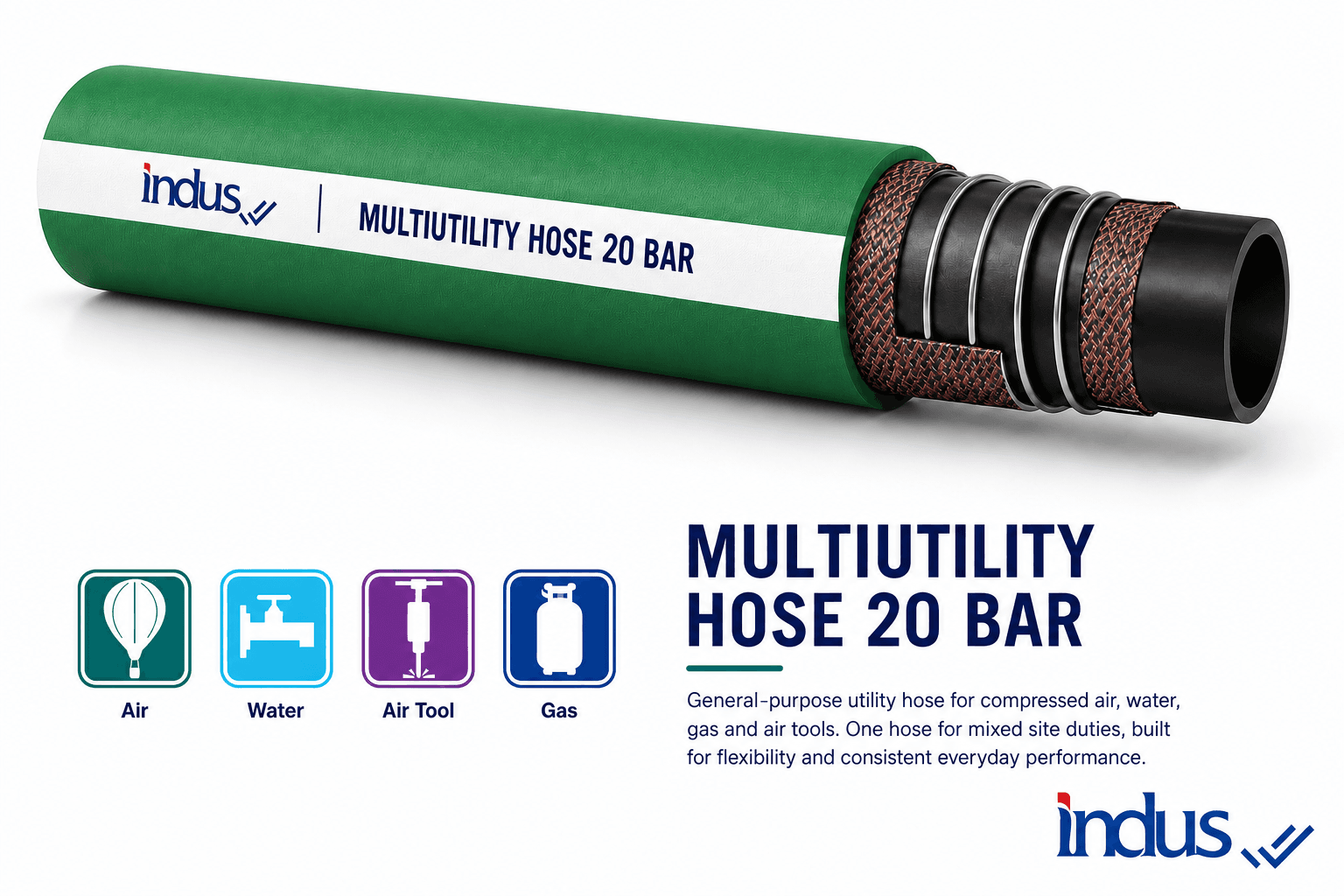

Green Multi Utility Hose 20 Bar
Multi-purpose hose used in steel mills, shipyard, foundries, automotive and construction industries.
Key features
- Application Family: air-water
- Manufacturer Part Code: A105HP
- Inner Diameter Range: 19 mm to 25 mm
- Max Working Pressure: 20 bar
- Operating Temperature: From -20°C to +90°C
- Application Family
- air-water
- Manufacturer Part Code
- A105HP
- Inner Diameter Range
- 19 mm to 25 mm
- Max Working Pressure
- 20 bar
- Operating Temperature
- From -20°C to +90°C
Product description
The Green Multi Utility Hose 20 Bar (part code A105HP) is a Air / Water Hose from the Indus Hydraulics industrial hose range.
Application
Multi-purpose hose used in steel mills, shipyard, foundries, automotive and construction industries.
Construction
- Cover: Green smooth extruded, oil mist, abrasion, ozone and weather resistant EPDM/SBR
- Lining / Tube: Black extruded SBR/NR oil mist resistant
- Reinforcement: High tensile strength textile plies
- Branding (printed on hose): INDUS A105HP Multi Utility 20 BAR SF 3:1
Performance
- Inner-diameter range: 19 mm to 25 mm
- Max working pressure: 20 bar
- Min burst pressure: 60 bar
- Min bend radius: 190-250 mm
- Weight: 0.65-0.88 kg/m
- Operating temperature: From -20°C to +90°C
- Safety factor: 3:1
Family context
Air & water hoses for compressed air, pneumatic tools, water transfer, and general industrial utility — typically 20 bar working pressure with EPDM/SBR rubber tube and textile reinforcement. BS 5118/2, ISO 2398.
How to order
Specify (a) the inner diameter from the size range, (b) the assembly length, (c) end-fitting requirements, and (d) any special requirements such as Lloyd's certification or third-party witness testing. Indus engineering will confirm the assembly drawing on the RFQ.
Companion products
Pair with matching couplings and accessories (Cam & Groove, Boss steam couplings, hose clamps, Holedall permanently-attached fittings, hose tags, and Spiral Hose Guard / Fire Jacket protective sleeves) — full range available on quote.
Identification
| Parameter | Value |
|---|---|
| Application Family | air-water |
| Manufacturer Part Code | A105HP |
| Hose Branding (Printed) | INDUS A105HP Multi Utility 20 BAR SF 3:1 |
Dimensions
| Parameter | Value |
|---|---|
| Inner Diameter Range | 19 mm to 25 mm |
| Min Bend Radius | 190-250 mm |
| Weight | 0.65-0.88 kg/m |
Performance
| Parameter | Value |
|---|---|
| Max Working Pressure | 20 bar |
| Min Burst Pressure | 60 bar |
| Operating Temperature | From -20°C to +90°C |
| Safety Factor | 3:1 |
Construction
| Parameter | Value |
|---|---|
| Cover Material | Green smooth extruded, oil mist, abrasion, ozone and weather resistant EPDM/SBR |
| Lining / Tube Material | Black extruded SBR/NR oil mist resistant |
| Reinforcement | High tensile strength textile plies |
Shipping & lead time
Sizes & part numbers
2 sizes| Indus part no. | Hose bore | O.D. (mm) | Min burst (bar) | Min bend radius (mm) | Weight (kg/m) | Working pressure (bar) |
|---|---|---|---|---|---|---|
| IH-IH-A105HP-019 | 3/4" · DN19 | 29 | 60 | 190 | 0.65 | 20 |
| IH-IH-A105HP-025 | 1" · DN25 | 36 | 60 | 250 | 0.88 | 20 |
O.D. — Outside diameter of the hose, which is what a clamp or a ferrule has to close on. Min burst — Minimum burst pressure. A test figure, never a working limit — never select on it. Min bend radius — Tightest centreline radius the hose may be bent to at full working pressure. Weight — Weight of the hose per metre, as published.
Working pressure is the published rating for the hose itself. A made-up assembly is limited by its lowest-rated part, so check it against the coupling, the clamp or ferrule, and the temperature you are running at.
Cut lengths and made-up assemblies are prepared in Dubai. Tell us the bore, the length and the ends you need.
