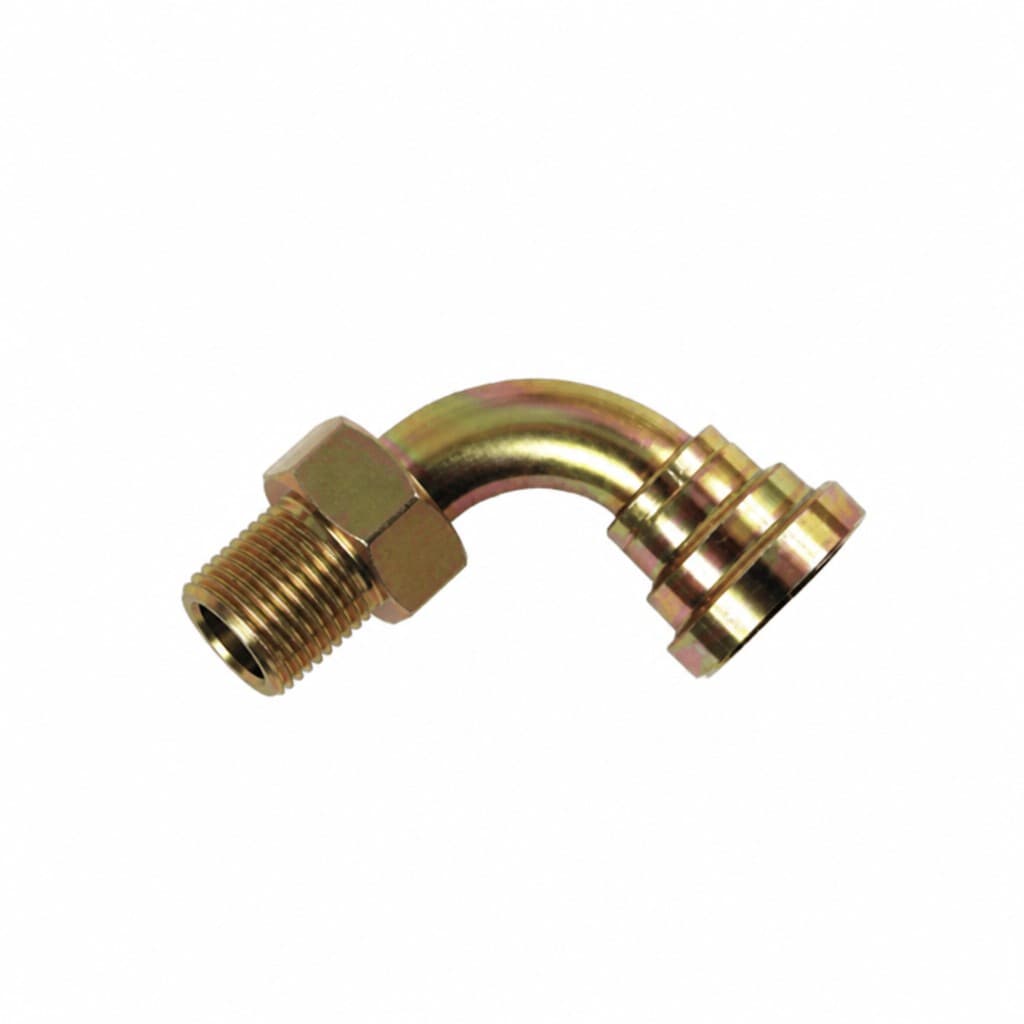

90° Metric Male Bite Type × SAE Flange (L-Series, 3000 psi)
90° Metric Male Bite Type × SAE Flange (L-Series, 3000 psi) — SAE flange adapter, 90 elbow body, 22 orderable sizes on this page. RFQ-only; standard Indus zinc-plated carbon-steel construction.
Key features
- Body Configuration: 90 elbow
- Port A Thread: Metric M22×1.5 to M42×2
- Nominal Size Range: -20 to -52
- Body Configuration
- 90 elbow
- Port A Thread
- Metric M22×1.5 to M42×2
- Nominal Size Range
- -20 to -52
Product description
The 90° Metric Male Bite Type × SAE Flange (L-Series, 3000 psi) is a 90 elbow hydraulic adapter in the Indus SAE flange range. Every size the manufacturer publishes is listed in the Sizes & Part Numbers tab, with the thread on each end, the dimensions and the part number to quote.
Construction
- Body configuration: 90 elbow
- Port A: 90° Metric Male Bite Type
- Port B: Flange
- Material: carbon steel (stainless steel available on request)
- Surface treatment: zinc-plated, Cr3+ passivated, RoHS-compliant
Threads
- Port A: Metric M22×1.5 to M42×2
- Port B: Metric M8×25 to M12×35
Sealing
SAE flange face with O-ring. Match the seat as well as the thread — a thread that engages against the wrong seat will weep under pressure, and several of these families share a thread while sealing differently.
Performance
The manufacturer publishes no pressure rating for this family. Tell us the working pressure your line sees and we will confirm the fitting is rated for it before you order.
Applicable standards
ISO 6162.
Light and heavy series
Both the light and the heavy series are listed on this page. They share a nominal size but not a tube outside diameter, so pick the row by the tube O.D. column, not by the thread alone.
How to order
Quote the Indus part number from the size table. If you have only the ports, send us the thread on each end and whether you need carbon steel or stainless, and Indus engineering will confirm the part number against your equipment.
Companion products
These are tube and port adapters, not hose ends. For hose assemblies pair them with Indus crimp ferrules and the matching hose-end fitting; for tube runs, with Indus cutting rings and end nuts.
Identification
| Parameter | Value |
|---|---|
| Body Configuration | 90 elbow |
Port A
| Parameter | Value |
|---|---|
| Port A Thread | Metric M22×1.5 to M42×2 |
| Port A Gender | male |
Port B
| Parameter | Value |
|---|---|
| Port B Thread | Metric M8×25 to M12×35 |
| Port B Sealing | SAE flange face with O-ring |
Dimensions
| Parameter | Value |
|---|---|
| Nominal Size Range | -20 to -52 |
Construction
| Parameter | Value |
|---|---|
| Material | Carbon steel (stainless on request) |
| Surface Treatment | Zinc-plated, Cr3+ passivated, RoHS-compliant |
Compliance
| Parameter | Value |
|---|---|
| Applicable Standards | ISO 6162 |
