SAE 100R18 Thermoplastic Hydraulic Hose, Low-Friction Black Cover
SAE 100R18 Thermoplastic Hydraulic Hose, Low-Friction Black Cover: 6 part numbers, 3/16" to 5/8".
Key features
- Application Family: thermoplastic hydraulic hose
- Inner Diameter Range: 3/16" to 5/8"
- Operating Temperature: −67 °F to 212 °F (−55 °C to 100 °C)
- Application Family
- thermoplastic hydraulic hose
Product description
Thermoplastic hydraulic hose to SAE 100R18 with a low-friction black polyester cover, for forklifts and for industrial and agricultural machines working in the cold or through quick temperature swings.

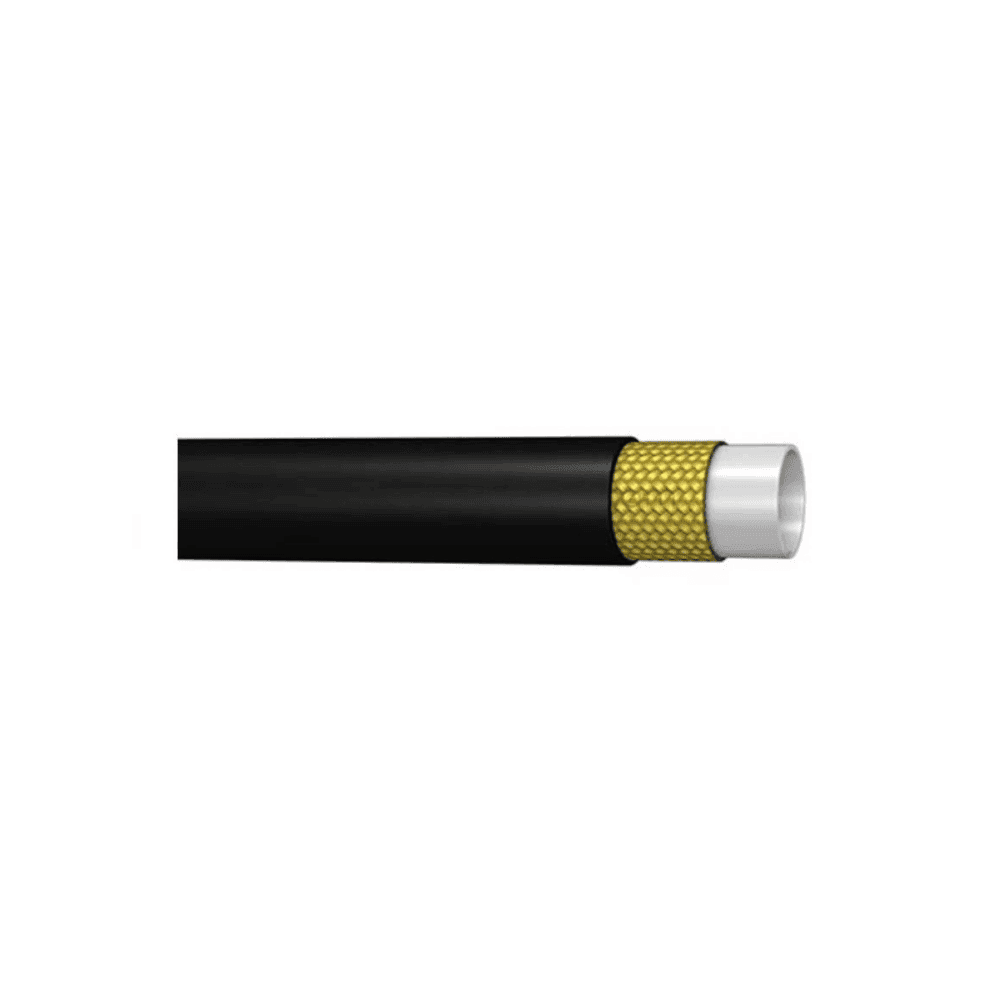

Construction
- Tube: polyester elastomer
- Reinforcement: one or two synthetic-fibre braids
- Cover: low-friction polyester, black, not pin-pricked
- Temperature: −67 °F to 212 °F (−55 °C to 100 °C)
- SAE 100R18 specifies 3,000 psi working pressure in every size
Pressure
SAE J517 100R18 sets a 3,000 psi working pressure for every size from 3/16" to 1"; the manufacturer publishes no separate figure. Use fittings made for thermoplastic hose.
Sizes and supply
6 part numbers, 3/16" to 5/8". Each part number is one size in one supply form; the Sizes & Part Numbers tab lists them.
How to order
Quote the Indus part number, or send the hose bore, the length and the service. Price and lead time are confirmed with the quotation.
Identification
| Parameter | Value |
|---|---|
| Application Family | thermoplastic hydraulic hose |
Dimensions
| Parameter | Value |
|---|---|
| Inner Diameter Range | 3/16" to 5/8" |
Performance
| Parameter | Value |
|---|---|
| Operating Temperature | −67 °F to 212 °F (−55 °C to 100 °C) |
Construction
| Parameter | Value |
|---|---|
| Construction | Tube: polyester elastomer; Reinforcement: one or two synthetic-fibre braids; Cover: low-friction polyester, black, not pin-pricked |
Compliance
| Parameter | Value |
|---|---|
| Applicable Standards | SAE J517 100R18 |
Shipping & lead time
Sizes & part numbers
6 sizes| Indus part no. | Supply | Hose bore |
|---|---|---|
| IH-HS-R18LF-03 | per foot | -03 · 3/16" |
| IH-HS-R18LF-04 | per foot | -04 · 1/4" |
| IH-HS-R18LF-05 | per foot | -05 · 5/16" |
| IH-HS-R18LF-06 | per foot | -06 · 3/8" |
| IH-HS-R18LF-08 | per foot | -08 · 1/2" |
| IH-HS-R18LF-10 | per foot | -10 · 5/8" |
Supply — Length and packaging the part number is supplied in, as published. Ask us for the dimension drawing if you need it stamped.
