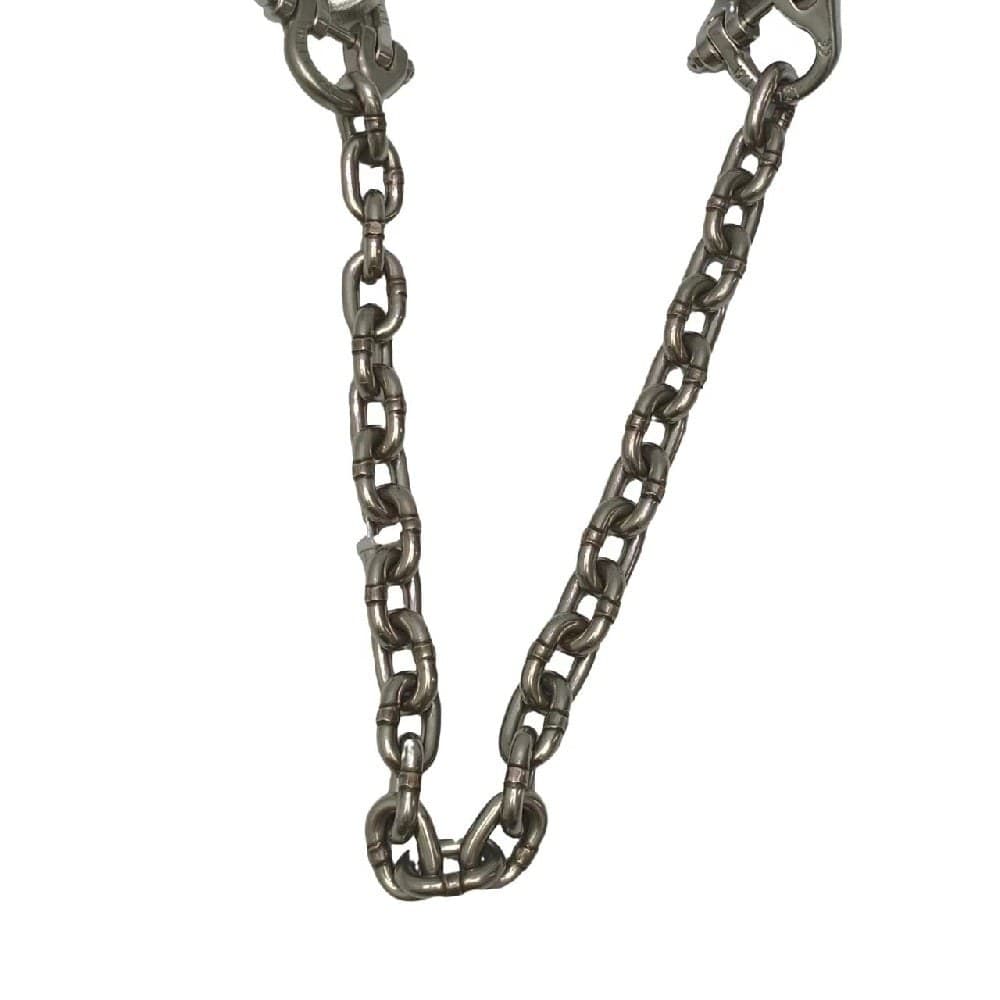

Grade 60 Stainless Steel Lifting Chain
Grade 60 Stainless Steel Lifting Chain, 12 sizes, 3 mm to 26 mm, WLL 0.2 to 15 t. Indus part numbers, manufacturer's test certificate.
Key features
- Product type: Stainless steel lifting chain
- Pattern / standard: Grade 60, dimensions similar to DIN 5687
- Size range: 3 mm to 26 mm
- Working load limit: 0.2 to 15 t
- Size range
- 3 mm to 26 mm
- Working load limit
- 0.2 to 15 t
- Material
- AISI 316L to 16 mm; AISI 318LN duplex from 16 mm
- Finish
- Blasted
Product description
Short link lifting chain in stainless steel to a Grade 60 rating, from 3 mm to 26 mm. AISI 316L covers the smaller sizes and 318LN duplex the larger ones, for lifting in food, pharmaceutical, chemical and marine plant where carbon steel chain would corrode.
Sizes and ratings
12 sizes, 3 mm to 26 mm. Working load limit 0.2 to 15 t. Every row has its own Indus part number in the table below.
Choosing a size
Choose by working load limit for a straight vertical lift, at a 4:1 design factor; in a multi-leg sling the leg angle reduces the rating as for any chain sling. Use it with stainless fittings of a matching rating, never with a lower-rated part.
Ordering
Quote the Indus part number from the table, or send the size and grade you need. Each consignment ships with the manufacturer's test certificate; say on the RFQ if your site needs anything more.
Identification
| Parameter | Value |
|---|---|
| Product type | Stainless steel lifting chain |
| Pattern / standard | Grade 60, dimensions similar to DIN 5687 |
| Sizes | 12 |
Dimensions
| Parameter | Value |
|---|---|
| Size range | 3 mm to 26 mm |
Performance
| Parameter | Value |
|---|---|
| Working load limit | 0.2 to 15 t |
Construction
| Parameter | Value |
|---|---|
| Material | AISI 316L to 16 mm; AISI 318LN duplex from 16 mm |
| Finish | Blasted |
Compliance
| Parameter | Value |
|---|---|
| Certification | Manufacturer's test certificate |
Shipping & lead time
Sizes & part numbers
12 sizes| Indus part no. | Size | Grade | WLL (t) | Inside width (mm) | Outside width (mm) | Pitch (mm) |
|---|---|---|---|---|---|---|
| IH-LR-SC-G60-3MM | 3 mm | AISI 316L | 0.2 | 5 | 12.5 | 14 |
| IH-LR-SC-G60-4MM | 4 mm | AISI 316L | 0.4 | 5 | 13.7 | 12 |
| IH-LR-SC-G60-5MM | 5 mm | AISI 316L | 0.63 | 6.3 | 18.5 | 15 |
| IH-LR-SC-G60-6MM | 6 mm | AISI 316L | 0.9 | 7.8 | 22.2 | 18 |
| IH-LR-SC-G60-7MM | 7 mm | AISI 316L | 1.25 | 9.1 | 25.9 | 21 |
| IH-LR-SC-G60-8MM | 8 mm | AISI 316L | 1.55 | 10.4 | 29.6 | 24 |
| IH-LR-SC-G60-10MM | 10 mm | AISI 316L | 2.45 | 13 | 37 | 30 |
| IH-LR-SC-G60-13MM | 13 mm | AISI 316L | 3.85 | 16.9 | 48.1 | 39 |
| IH-LR-SC-G60-16MM | 16 mm | AISI 316L or 318LN duplex | 6 | 20.8 | 59.2 | 48 |
| IH-LR-SC-G60-18MM | 18 mm | AISI 318LN duplex | 8 | 24.3 | 64.8 | 54 |
| IH-LR-SC-G60-22MM | 22 mm | AISI 318LN duplex | 11 | 29.5 | 79.2 | 66 |
| IH-LR-SC-G60-26MM | 26 mm | AISI 318LN duplex | 15 | 35 | 93.6 | 78 |
Size — Nominal size as the manufacturer states it. Grade — Material grade of this row — carbon and alloy versions share a frame but not a rating. WLL — Working load limit — the most the part may carry in service, as the manufacturer rates it. Inside width — Inside width of the link or jaw. Outside width — Outside width of the link. Pitch — Thread pitch or link pitch, as the source heads it. Ask us for the dimension drawing if you need it stamped.
WLL is the most the part may carry in service. Proof and breaking loads are test figures — never lift to them. Each load is shown in the unit the manufacturer rates the part in, and a size ships with the manufacturer’s test certificate.
What sizes does the Grade 60 stainless steel lifting chain come in?▾
What is the working load limit?▾
Do the parts come with a test certificate?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
From the blog
Written about this part
Engineers viewing this also looked at
Stainless Steel Chain — AS/NZS
Stainless Steel DIN 5685 A/C Chain
Stainless Steel DIN 763 Long Link Chain

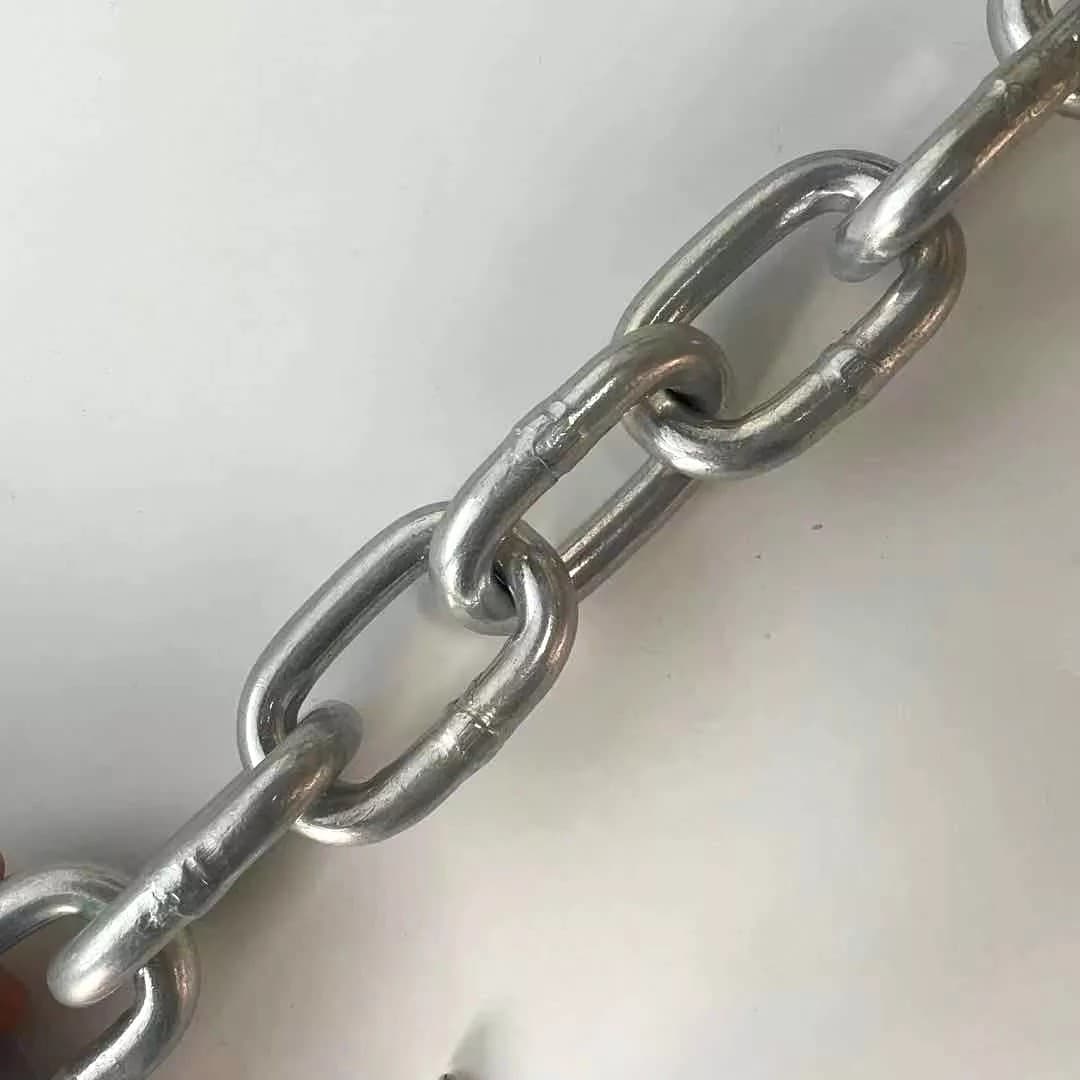

Stainless Steel DIN 764 Medium Link Chain

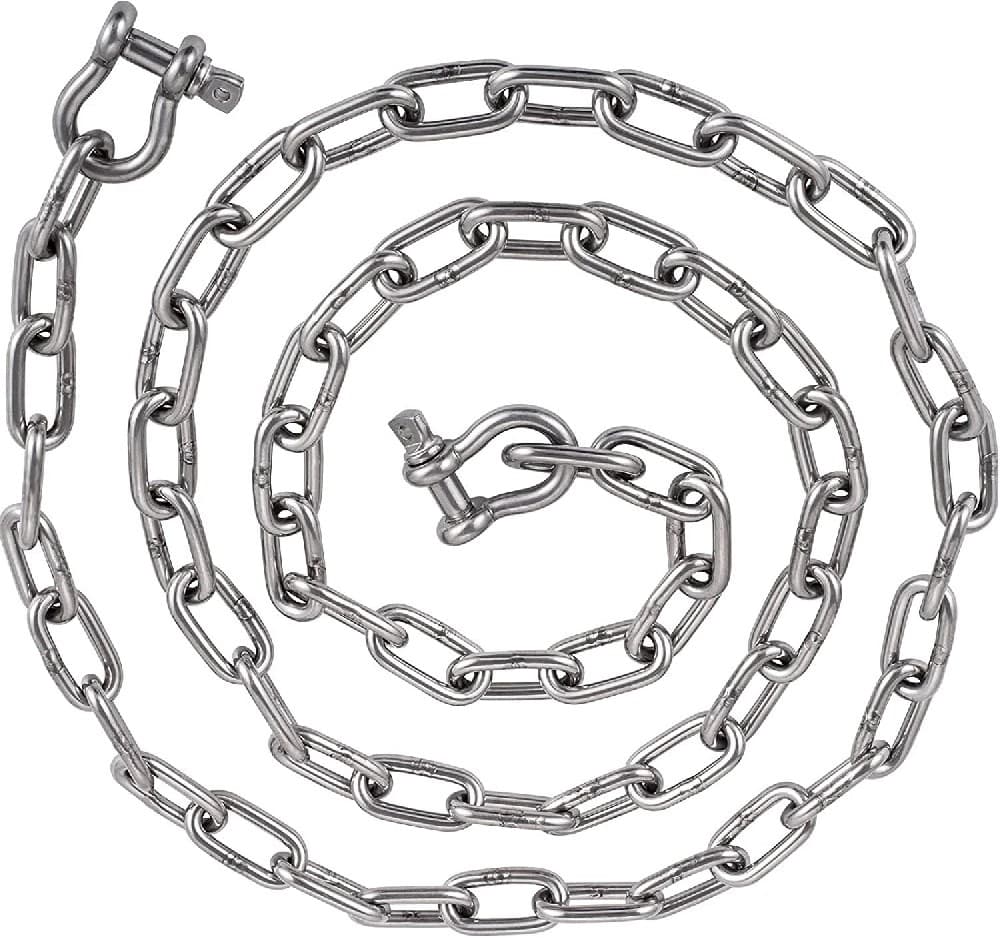

Stainless Steel DIN 766 Calibrated Chain

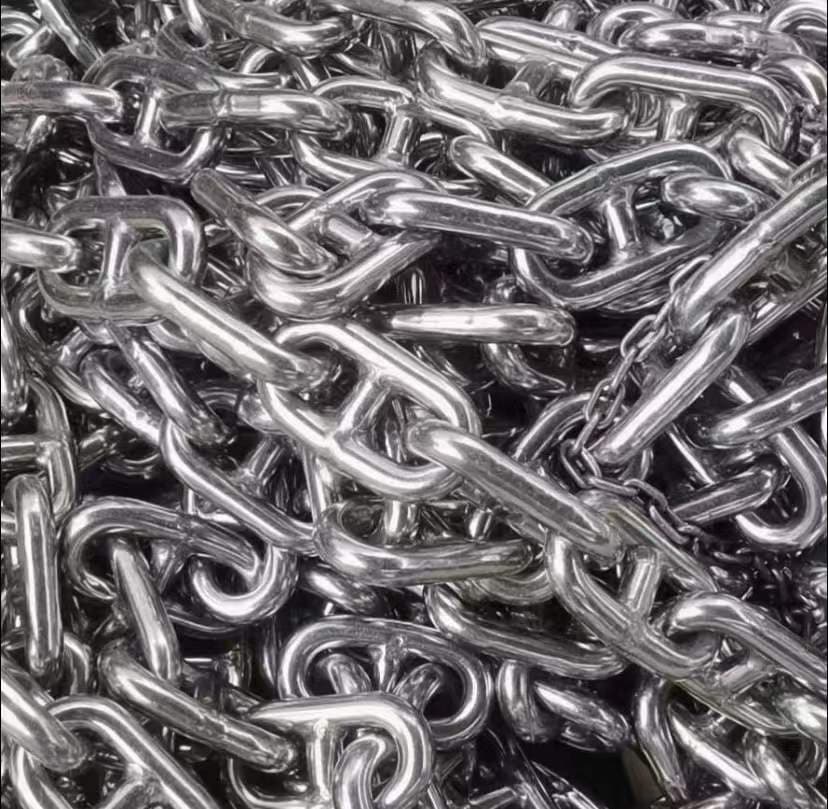

Stainless Steel DIN 766 Short Link Chain
