Duplex Swaging Sleeve — S-506 Pattern

Duplex Swaging Sleeve (S-506), in 10 sizes. Load rating on request. Indus part numbers.
Key features
- Product type: Duplex Swaging Sleeve
- Pattern / standard: S-506
- Material
- Mild steel duplex sleeve
- Finish
- Electro-galvanized / self colour
Product description
Ferrules and sleeves are pressed onto wire rope to form an eye, a splice or a stop. This range follows the S-506 pattern, sized to interchange in an existing rigging plan. Mild steel duplex sleeve, electro-galvanized / self colour.
Sizes
10 sizes. Every size has its own Indus part number in the table below.
No load rating is published for this range. Tell us the duty and we will confirm the rating with the quotation. Do not use it to lift until you have that rating in writing.

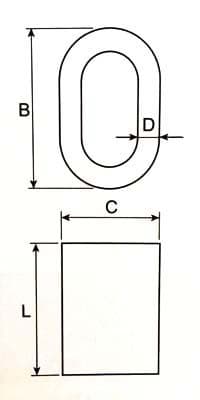

The lettered dimensions in the table refer to the dimension drawing shown with this product.
Manufacturer's data
- Machining + extruded.
Choosing a size
Size the ferrule to the rope and press it with the die made for that ferrule — the finished diameter is what makes the termination. Aluminium suits steel rope in normal service, copper suits stainless rope.
Ordering
Quote the Indus part number from the size table, or send the size and rating you need.
Identification
| Parameter | Value |
|---|---|
| Product type | Duplex Swaging Sleeve |
| Pattern / standard | S-506 |
| Sizes | 10 |
Construction
| Parameter | Value |
|---|---|
| Material | Mild steel duplex sleeve |
| Finish | Electro-galvanized / self colour |
Shipping & lead time
Sizes & part numbers
10 sizesReplaces the Crosby S-506 series. Quote the Indus part number, or send us the Crosby number and we will cross it.
- Indus part no.IH-LR-FS-DSSS506-5168MM
- Size
- 5/16″ / 8mm
- Rope size
- 5/16″ / 8mm
- B (mm)
- 27.43
- C (mm)
- 20.57
- D (mm)
- 4.826
- L (mm)
- 31.75
- Weight (lbs/100 pcs)
- 17
- Indus part no.IH-LR-FS-DSSS506-389-10MM
- Size
- 3/8″ / 9-10mm
- Rope size
- 3/8″ / 9-10mm
- B (mm)
- 28.45
- C (mm)
- 20.57
- D (mm)
- 3.556
- L (mm)
- 31.75
- Weight (lbs/100 pcs)
- 13
- Indus part no.IH-LR-FS-DSSS506-71611MM
- Size
- 7/16″ / 11mm
- Rope size
- 7/16″ / 11mm
- B (mm)
- 35.81
- C (mm)
- 25.91
- D (mm)
- 4.826
- L (mm)
- 41.4
- Weight (lbs/100 pcs)
- 31
- Indus part no.IH-LR-FS-DSSS506-1213MM
- Size
- 1/2″ / 13mm
- Rope size
- 1/2″ / 13mm
- B (mm)
- 36.58
- C (mm)
- 25.91
- D (mm)
- 4.064
- L (mm)
- 41.4
- Weight (lbs/100 pcs)
- 27
- Indus part no.IH-LR-FS-DSSS506-91614MM
- Size
- 9/16″ / 14mm
- Rope size
- 9/16″ / 14mm
- B (mm)
- 43.69
- C (mm)
- 31.24
- D (mm)
- 5.842
- L (mm)
- 57.15
- Weight (lbs/100 pcs)
- 63
- Indus part no.IH-LR-FS-DSSS506-5816MM
- Size
- 5/8″ / 16mm
- Rope size
- 5/8″ / 16mm
- B (mm)
- 46.74
- C (mm)
- 32.51
- D (mm)
- 5.08
- L (mm)
- 57.15
- Weight (lbs/100 pcs)
- 54
- Indus part no.IH-LR-FS-DSSS506-3418-20MM
- Size
- 3/4″ / 18-20mm
- Rope size
- 3/4″ / 18-20mm
- B (mm)
- 54.86
- C (mm)
- 38.61
- D (mm)
- 5.842
- L (mm)
- 66.8
- Weight (lbs/100 pcs)
- 90
- Indus part no.IH-LR-FS-DSSS506-7822MM
- Size
- 7/8″ / 22mm
- Rope size
- 7/8″ / 22mm
- B (mm)
- 63.5
- C (mm)
- 44.45
- D (mm)
- 6.858
- L (mm)
- 73.15
- Weight (lbs/100 pcs)
- 126
Show all 10 sizesShow fewer sizes
- Indus part no.IH-LR-FS-DSSS506-125-26MM
- Size
- 1″ / 25-26mm
- Rope size
- 1″ / 25-26mm
- B (mm)
- 72.14
- C (mm)
- 50.8
- D (mm)
- 8.382
- L (mm)
- 77.72
- Weight (lbs/100 pcs)
- 187
- Indus part no.IH-LR-FS-DSSS506-1-1430-32MM
- Size
- 1-1/4″ / 30-32mm
- Rope size
- 1-1/4″ / 30-32mm
- B (mm)
- 88.9
- C (mm)
- 63.5
- D (mm)
- 9.652
- L (mm)
- 103.1
- Weight (lbs/100 pcs)
- 384
Size — Nominal size as the manufacturer states it. Rope size — Rope diameter the sheave is made for. B — Dimension B on the manufacturer dimension drawing. C — Dimension C on the manufacturer dimension drawing. D — Dimension D on the manufacturer dimension drawing. L — Dimension L on the manufacturer dimension drawing. Weight — Weight of 100 pieces, as published. Ask us for the dimension drawing if you need it stamped.
WLL is the most the part may carry in service. Proof and breaking loads are test figures — never lift to them. Each load is shown in the unit the manufacturer rates the part in, and a size ships with the manufacturer’s test certificate.
Indus Hydraulics is not affiliated with Crosby. Crosby part numbers are shown for cross-reference only, so you can order from an existing bill of materials.
