Stainless Steel Ferrule — EN 13411-3 (DIN 3093)
Stainless Steel Ferrule (EN 13411-3), in 42 sizes. Load rating on request. Indus part numbers.
Key features
- Product type: Stainless Steel Ferrule
- Pattern / standard: EN 13411-3
- Material
- Stainless steel AISI304 / AISI316
Product description
Ferrules and sleeves are pressed onto wire rope to form an eye, a splice or a stop. Made to EN 13411-3. Stainless steel AISI304 / AISI316.
Sizes
42 sizes. Every size has its own Indus part number in the table below.
No load rating is published for this range. Tell us the duty and we will confirm the rating with the quotation. Do not use it to lift until you have that rating in writing.
The lettered dimensions in the table refer to the dimension drawing shown with this product.
Manufacturer's data
- Machining + extruded.
Choosing a size
Size the ferrule to the rope and press it with the die made for that ferrule — the finished diameter is what makes the termination. Aluminium suits steel rope in normal service, copper suits stainless rope.
Ordering
Quote the Indus part number from the size table, or send the size and rating you need.
Identification
| Parameter | Value |
|---|---|
| Product type | Stainless Steel Ferrule |
| Pattern / standard | EN 13411-3 |
| Sizes | 42 |
Construction
| Parameter | Value |
|---|---|
| Material | Stainless steel AISI304 / AISI316 |
Shipping & lead time
Sizes & part numbers
42 sizes| Indus part no. | Size | A (mm) | B (mm) | L (mm) | S (mm) | L′ (mm) | Weight (kg/1000 pcs) |
|---|---|---|---|---|---|---|---|
| IH-LR-FS-SSFE13411-NOP1 | No. 1 | 1.2 | 2.4 | 5 | 0.65 | — | 0.098 |
| IH-LR-FS-SSFE13411-NOP1P5 | No. 1.5 | 1.7 | 3.4 | 6 | 0.75 | — | 0.176 |
| IH-LR-FS-SSFE13411-NOP2 | No. 2 | 2.2 | 4.4 | 7 | 0.85 | — | 0.285 |
| IH-LR-FS-SSFE13411-NOP2P5 | No. 2.5 | 2.7 | 5.4 | 9 | 1.05 | — | 0.439 |
| IH-LR-FS-SSFE13411-NOP3 | No. 3 | 3.3 | 6.6 | 11 | 1.25 | — | 0.907 |
| IH-LR-FS-SSFE13411-NOP3P5 | No. 3.5 | 3.8 | 7.6 | 13 | 1.5 | — | 1.18 |
| IH-LR-FS-SSFE13411-NOP4 | No. 4 | 4.4 | 8.8 | 14 | 1.7 | — | 1.63 |
| IH-LR-FS-SSFE13411-NOP4P5 | No. 4.5 | 4.9 | 9.8 | 16 | 1.9 | — | 2.39 |
| IH-LR-FS-SSFE13411-NOP5 | No. 5 | 5.5 | 11 | 18 | 2.1 | — | 3.62 |
| IH-LR-FS-SSFE13411-NOP6 | No. 6 | 6.6 | 13.2 | 21 | 2.5 | 25 | 5.87 |
| IH-LR-FS-SSFE13411-NOP6P5 | No. 6.5 | 7.2 | 14.4 | 23 | 2.7 | — | 7.18 |
| IH-LR-FS-SSFE13411-NOP7 | No. 7 | 7.8 | 15.6 | 25 | 2.9 | 30 | 9.83 |
| IH-LR-FS-SSFE13411-NOP8 | No. 8 | 8.8 | 17.6 | 28 | 3.3 | 34 | 12.96 |
| IH-LR-FS-SSFE13411-NOP9 | No. 9 | 9.9 | 19.8 | 32 | 3.7 | 38 | 18.94 |
| IH-LR-FS-SSFE13411-NOP10 | No. 10 | 10.9 | 21.8 | 35 | 4.1 | 42 | 24.09 |
| IH-LR-FS-SSFE13411-NOP11 | No. 11 | 12.1 | 24.2 | 39 | 4.5 | 47 | 35.35 |
| IH-LR-FS-SSFE13411-NOP12 | No. 12 | 13.2 | 26.4 | 42 | 4.9 | 50 | 44.18 |
| IH-LR-FS-SSFE13411-NOP13 | No. 13 | 14.2 | 28.4 | 46 | 5.4 | 55 | 59.86 |
| IH-LR-FS-SSFE13411-NOP14 | No. 14 | 15.3 | 30.6 | 49 | 5.8 | 59 | 73.5 |
| IH-LR-FS-SSFE13411-NOP16 | No. 16 | 17.5 | 35 | 56 | 6.7 | 67 | 111 |
| IH-LR-FS-SSFE13411-NOP18 | No. 18 | 19.6 | 39.2 | 63 | 7.6 | 76 | 156 |
| IH-LR-FS-SSFE13411-NOP20 | No. 20 | 21.7 | 43.4 | 70 | 8.4 | 84 | 217 |
| IH-LR-FS-SSFE13411-NOP22 | No. 22 | 24.3 | 48.6 | 77 | 9.2 | 92 | 292 |
| IH-LR-FS-SSFE13411-NOP24 | No. 24 | 26.4 | 52.8 | 84 | 10 | 101 | 376 |
| IH-LR-FS-SSFE13411-NOP26 | No. 26 | 28.5 | 57 | 91 | 10.9 | 109 | 481 |
| IH-LR-FS-SSFE13411-NOP28 | No. 28 | 31 | 62 | 98 | 11.7 | 118 | 603 |
| IH-LR-FS-SSFE13411-NOP30 | No. 30 | 33.1 | 66.2 | 105 | 12.5 | 126 | 739 |
| IH-LR-FS-SSFE13411-NOP32 | No. 32 | 35.2 | 70.4 | 112 | 13.4 | 134 | 897 |
| IH-LR-FS-SSFE13411-NOP34 | No. 34 | 37.8 | 75.6 | 119 | 14.2 | 143 | 1,077 |
| IH-LR-FS-SSFE13411-NOP36 | No. 36 | 39.8 | 79.6 | 126 | 15 | 152 | 1,275 |
| IH-LR-FS-SSFE13411-NOP38 | No. 38 | 41.9 | 83.8 | 133 | 15.8 | 160 | 1,503 |
| IH-LR-FS-SSFE13411-NOP40 | No. 40 | 44 | 88 | 140 | 16.6 | 168 | 1,734 |
| IH-LR-FS-SSFE13411-NOP42 | No. 42 | 46.2 | 92.4 | 147 | 17.5 | — | 2,024 |
| IH-LR-FS-SSFE13411-NOP44 | No. 44 | 48.4 | 96.8 | 154 | 18.3 | 184 | 2,314 |
| IH-LR-FS-SSFE13411-NOP46 | No. 46 | 50.6 | 101.2 | 161 | 19.2 | — | 2,662 |
| IH-LR-FS-SSFE13411-NOP48 | No. 48 | 52.8 | 105.6 | 168 | 20 | 200 | 3,010 |
| IH-LR-FS-SSFE13411-NOP50 | No. 50 | 55 | 110 | 175 | 20.8 | — | 3,412 |
| IH-LR-FS-SSFE13411-NOP52 | No. 52 | 57.2 | 114.4 | 182 | 21.6 | 216 | 3,813 |
| IH-LR-FS-SSFE13411-NOP54 | No. 54 | 59.4 | 118.8 | 189 | 22.5 | — | 4,293 |
| IH-LR-FS-SSFE13411-NOP56 | No. 56 | 61.6 | 123.2 | 196 | 23.3 | 232 | 4,772 |
| IH-LR-FS-SSFE13411-NOP58 | No. 58 | 63.8 | 127.6 | 203 | 24.2 | — | 5,326 |
| IH-LR-FS-SSFE13411-NOP60 | No. 60 | 66 | 132 | 210 | 25 | 248 | 5,880 |
Size — Nominal size as the manufacturer states it. A — Dimension A on the manufacturer dimension drawing. B — Dimension B on the manufacturer dimension drawing. L — Dimension L on the manufacturer dimension drawing. S — Dimension S on the manufacturer dimension drawing. L′ — Dimension L′ on the manufacturer dimension drawing. Weight — Weight of 1,000 pieces, as published. Ask us for the dimension drawing if you need it stamped.
WLL is the most the part may carry in service. Proof and breaking loads are test figures — never lift to them. Each load is shown in the unit the manufacturer rates the part in, and a size ships with the manufacturer’s test certificate.
What sizes does the stainless steel ferrule come in?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
The same part, in the designations used across European and Gulf trade catalogues.
- de
- Presshülse
- fr
- jupe de sertissage
- es
- casquillo de prensado
- it
- boccola di pressatura
From the blog
Written about this part
Engineers viewing this also looked at
Aluminium Ferrule — EN 13411-3 (DIN 3093)
Aluminium Ferrule — Form C (Tapered)
Aluminium Hourglass Sleeve
Aluminium Ferrule — JIS Type

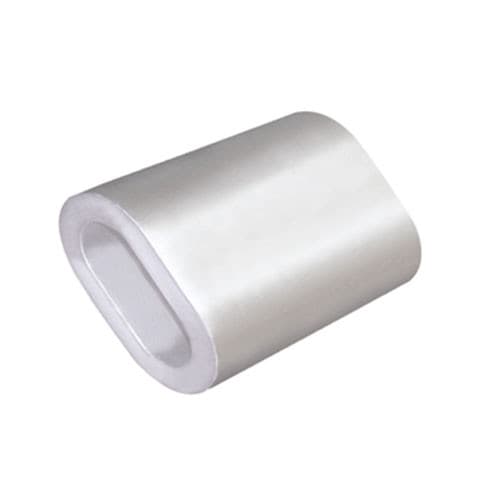

Aluminium Oval Sleeve

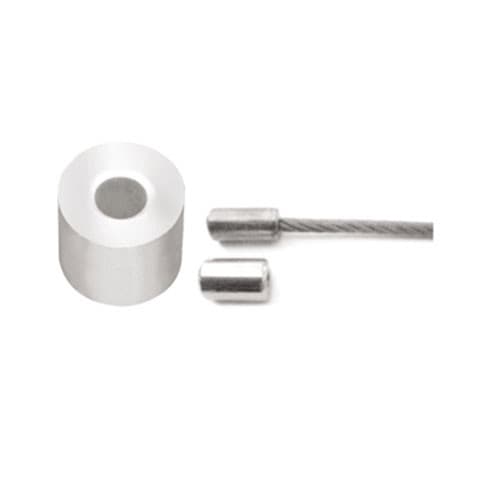

Aluminium Stop Button

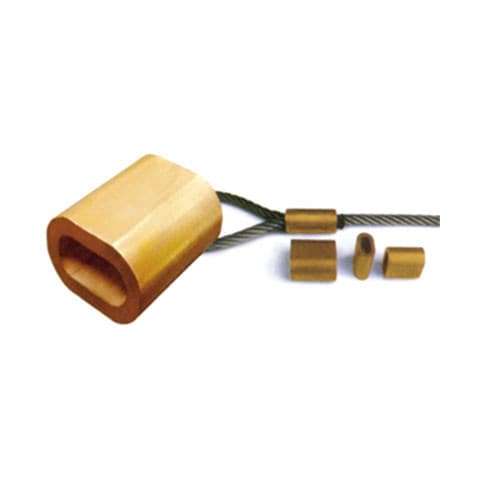

Copper Ferrule
