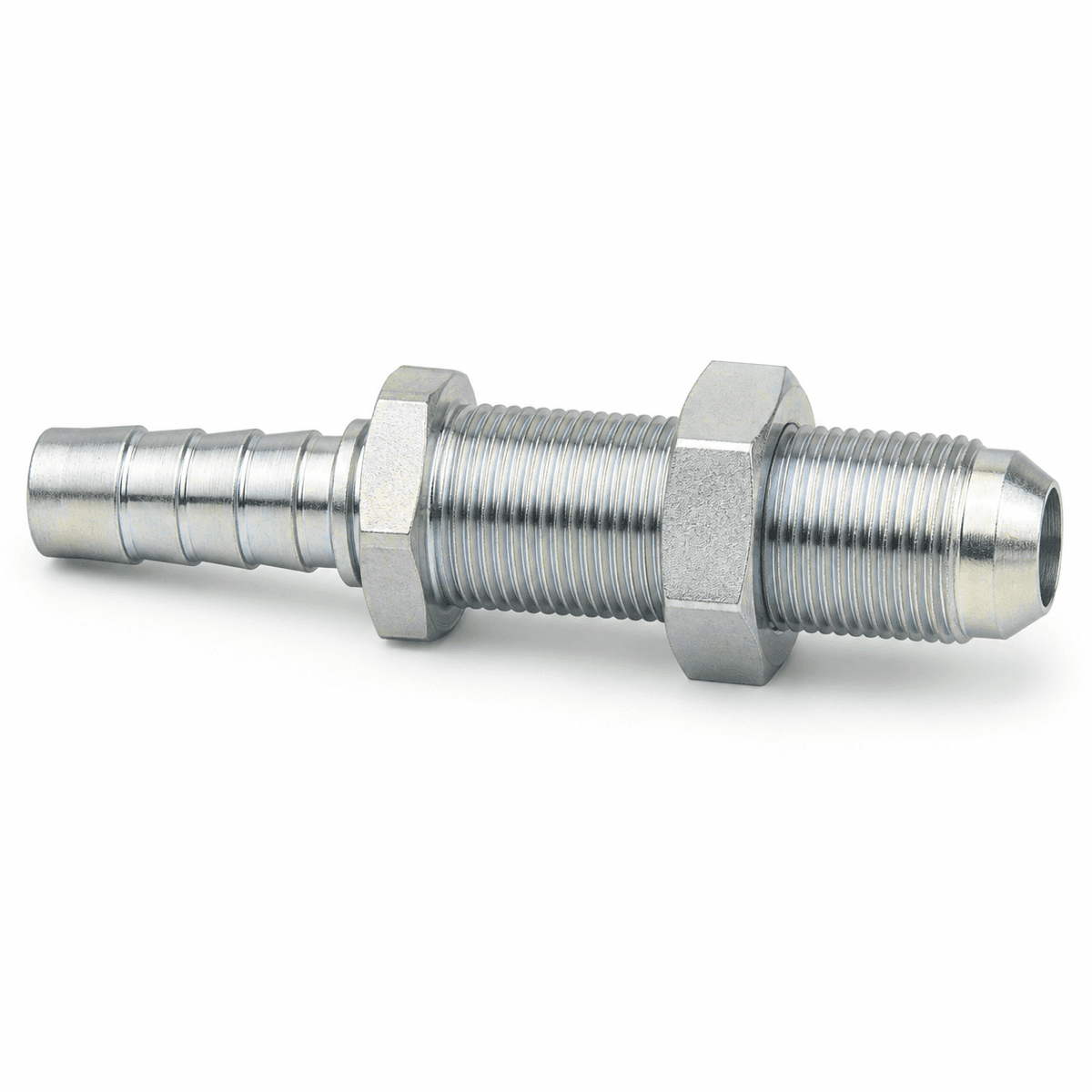

BSP Male 60° Cone Bulkhead Hose Fitting
Bulkhead version of the BSP male 60° cone hose fitting — passes through a panel or tank wall and locks with a bulkhead nut. straight, BSP parallel (G1/4 to G2 — common sizes), extended bulkhead shank, 60° cone (BSPP).
Key features
- Fitting Configuration: straight
- Thread Form: BSP parallel (G1/4 to G2 — common sizes), extended bulkhead shank
- Sealing Form: 60° cone (BSPP)
- Nominal Size Range: DN6 – DN51 (1/4" – 2")
- Fitting Configuration
- straight
- Thread Form
- BSP parallel (G1/4 to G2 — common sizes), extended bulkhead shank
- Sealing Form
- 60° cone (BSPP)
- Nominal Size Range
- DN6 – DN51 (1/4" – 2")
Product description
The BSP Male 60° Cone Bulkhead Hose Fitting is a straight hydraulic hose fitting in the BSP family — male thread with 60° cone (BSPP) sealing form. Compliant with ISO 228, BS 5200, ISO 12151-6.
Construction
- Configuration: straight
- Thread form: BSP parallel (G1/4 to G2 — common sizes), extended bulkhead shank
- Sealing form: 60° cone (BSPP)
- Gender: male
- Material: Carbon steel (stainless steel available on request)
- Surface treatment: Zinc-plated, Cr3+ passivated, RoHS-compliant
- Notes: Supplied with bulkhead locknut. Panel thickness and hole diameter must be confirmed on the RFQ — shank length is size-dependent.
Performance
Pressure rating matches the matching ferrule and host hose grade — see Indus Crimp Ferrules for compatibility tables. Tested to manufacturer-recommended impulse cycles when crimped to the correct ferrule diameter. Operating temperature -40°C to +120°C; refer to fluid compatibility chart for aggressive media.
Applicable Standards
- ISO 228
- BS 5200
- ISO 12151-6
How to order
Specify (a) the host hose grade and bore size, (b) the matching crimp ferrule (see the Crimp Ferrules category), and (c) the thread size you need. Indus crimps and pressure-tests the assembly before dispatch.
Companion products
Pair with Indus crimp ferrules from the matching hose grade. For other thread families see the Metric, BSP, JIC 37°, DIN, and Japanese sub-categories under Hose Fittings.
Identification
| Parameter | Value |
|---|---|
| Fitting Configuration | straight |
| Thread Form | BSP parallel (G1/4 to G2 — common sizes), extended bulkhead shank |
| Sealing Form | 60° cone (BSPP) |
| Thread Gender | male |
Dimensions
| Parameter | Value |
|---|---|
| Nominal Size Range | DN6 – DN51 (1/4" – 2") |
Construction
| Parameter | Value |
|---|---|
| Material | Carbon steel (stainless on request) |
| Surface Treatment | Zinc-plated, Cr3+ passivated, RoHS-compliant |
Compliance
| Parameter | Value |
|---|---|
| Applicable Standards | ISO 228, BS 5200, ISO 12151-6 |
Shipping & lead time
What thread family does this fitting use?▾
What thread sizes are available?▾
What is the sealing form?▾
What is the maximum working pressure?▾
What materials and finishes are available?▾
Which crimp ferrule should I pair with this fitting?▾
Is crimping included?▾
Lead time?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
The same part, in the designations used across European and Gulf trade catalogues.
- de
- gerade BSP Außengewinde 60° Konus Schottverschraubung
- fr
- mâle BSP cône 60° traversée de cloison
- es
- macho BSP cono 60° pasamuros
- it
- maschio BSP cono 60° passaparatia
From the blog
Written about this range
Thread & fitting identification
Measuring a fitting without gauges: what you can establish in the field
No seat gauge, no pitch gauge, a machine down and a phone with two bars. What a caliper and a known bolt will actually tell you, and what to send.
3 min read
Buying fittings & adapters
Consolidating fittings with a hose order
One consignment, one set of documents, one clearance. The saving is not in the parts — it is in everything that happens to a parcel between here and your gate.
3 min read
Thread & fitting identification
BSPP vs BSPT: why a parallel thread needs a seal and a tapered one does not
They share a thread form and a size designation, and they do not seal the same way. How to tell them apart on the bench, and what happens when they are mixed.
3 min read
Engineers viewing this also looked at
BSP Male 60° Cone or Bonded Seal Hose Fitting
BSP Male Flat Seal Hose Fitting

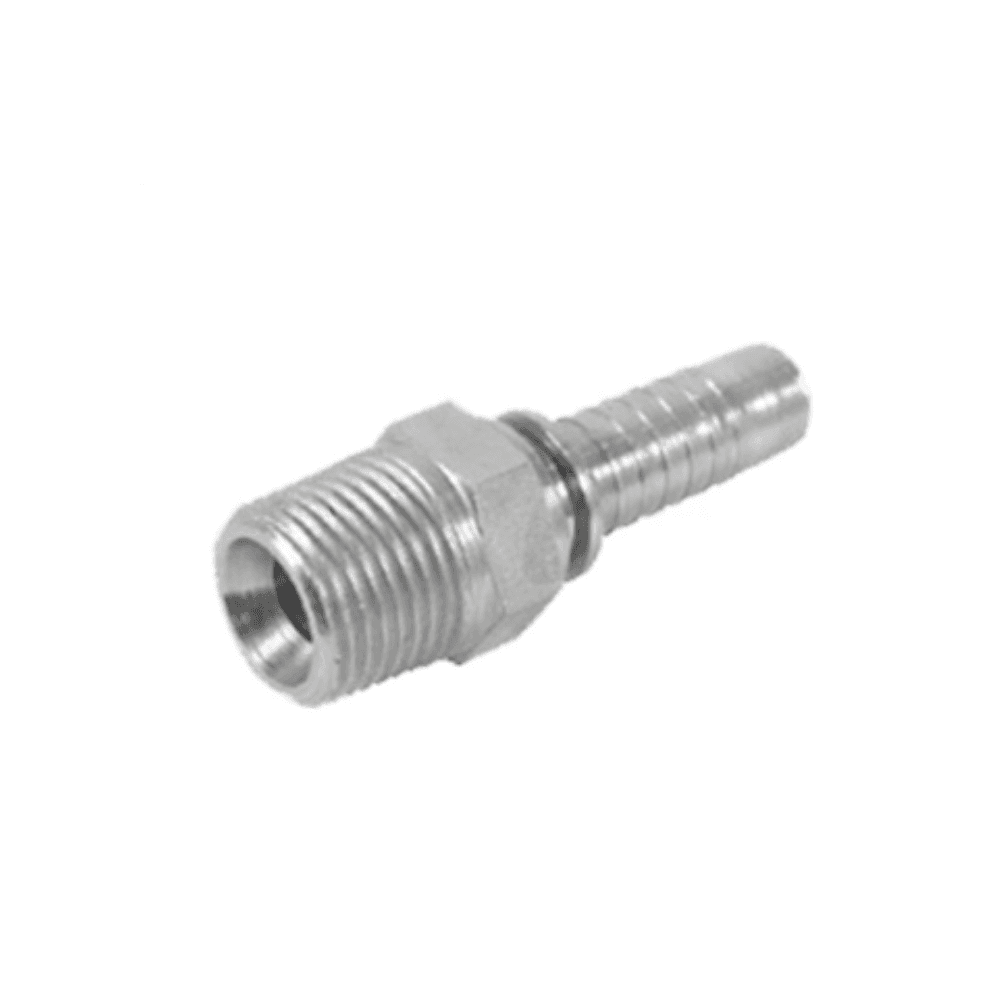

BSPT Male Hose Fitting (Tapered Thread)
BSPT Male Tapered Hose Fitting (SP Body)

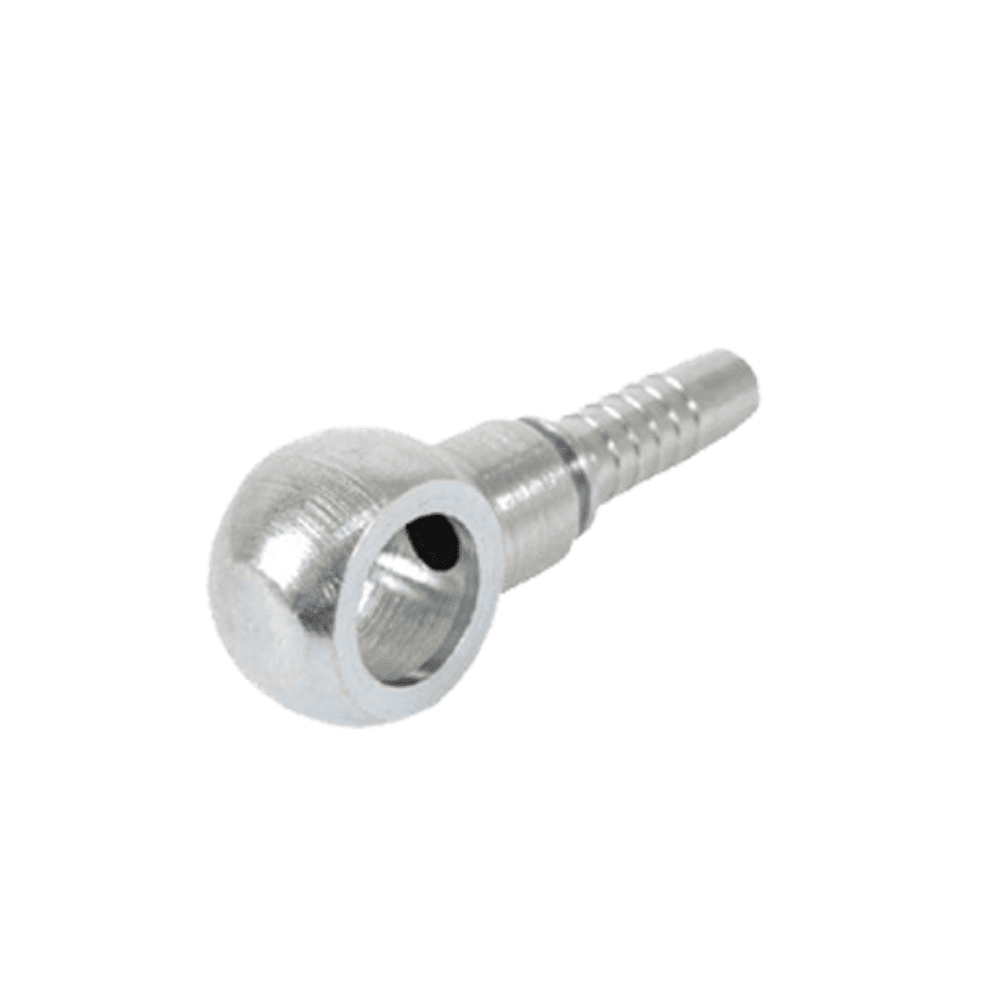

BSP Banjo Eye Fitting
