What sizes does the 90° Elbow Metric Male 74° Cone × NPT Male come in?

21 sizes are listed, covering -12 to -52. The Sizes & Part Numbers tab gives the thread on each end, the dimensions and the Indus part number for every one.

Is it available in stainless steel?

Yes. Every size is available in 316 stainless steel on request — add "-SS" to the part number when you enquire. Lead time is longer than for the zinc-plated carbon-steel stock.

Can I get it faster than the quoted lead time?

Tell us it is a plant-down job when you enquire. Common sizes are held in Jebel Ali and go out the same day if you order before 14:00 GST.

What thread family does this adapter use?

metric. ISO 8434-2 profile, metric thread, ANSI/ASME B1.20.1. The seat is metric 37° cone (74° included) and NPT taper thread. Check the thread on each end against the size table before ordering.

What are the port specs?

Port A: Metric Male 74° Cone. Port B: NPT Male. Port A: Metric M12×1.5 to M52×2. Port B: NPT 1/8-27 to 1.1/2-11.5.

What sizes are available?

21 sizes are listed, covering -12 to -52. The Sizes & Part Numbers tab gives the thread on each end, the dimensions and the Indus part number for every one. Sizes outside the table are quoted on request.

What is the maximum working pressure?

The manufacturer publishes no pressure rating for this family, so this page does not state one. Tell us the working pressure your line sees and we will confirm the fitting is rated for it before you order.

What materials and finishes are available?

Standard: carbon steel with a zinc-plated, Cr3+ passivated, RoHS-compliant finish. 316 stainless steel is available on request for marine, chemical or food-grade service — add "-SS" to the part number when you enquire.

Is this adapter interchangeable with other thread families?

No. metric is a thread family in its own right and does not interchange with BSP, JIC, NPT, metric or ORFS. Where you need to cross between families, use the adapter built for that pair rather than forcing a thread that nearly fits.

Do I need to crimp this onto a hose?

No. These are tube and port adapters, not hose ends — they thread into a port or join two threaded ends. For a hose assembly use Indus crimp ferrules with the matching Indus hose-end fitting.

Common sizes are held in Jebel Ali and go out the same day if you order before 14:00 GST. Less-common combinations ship within 7 working days of RFQ confirmation; say if it is a plant-down job and we will prioritise it.

INDUS HYDRAULICSIH-AD-MET-037

90° Elbow Metric Male 74° Cone × NPT Male

Name: 90° Elbow Metric Male 74° Cone × NPT Male
Brand: Indus Hydraulics
SKU: IH-AD-MET-037

Metric AdaptersEx-stock · delivery in 3 days

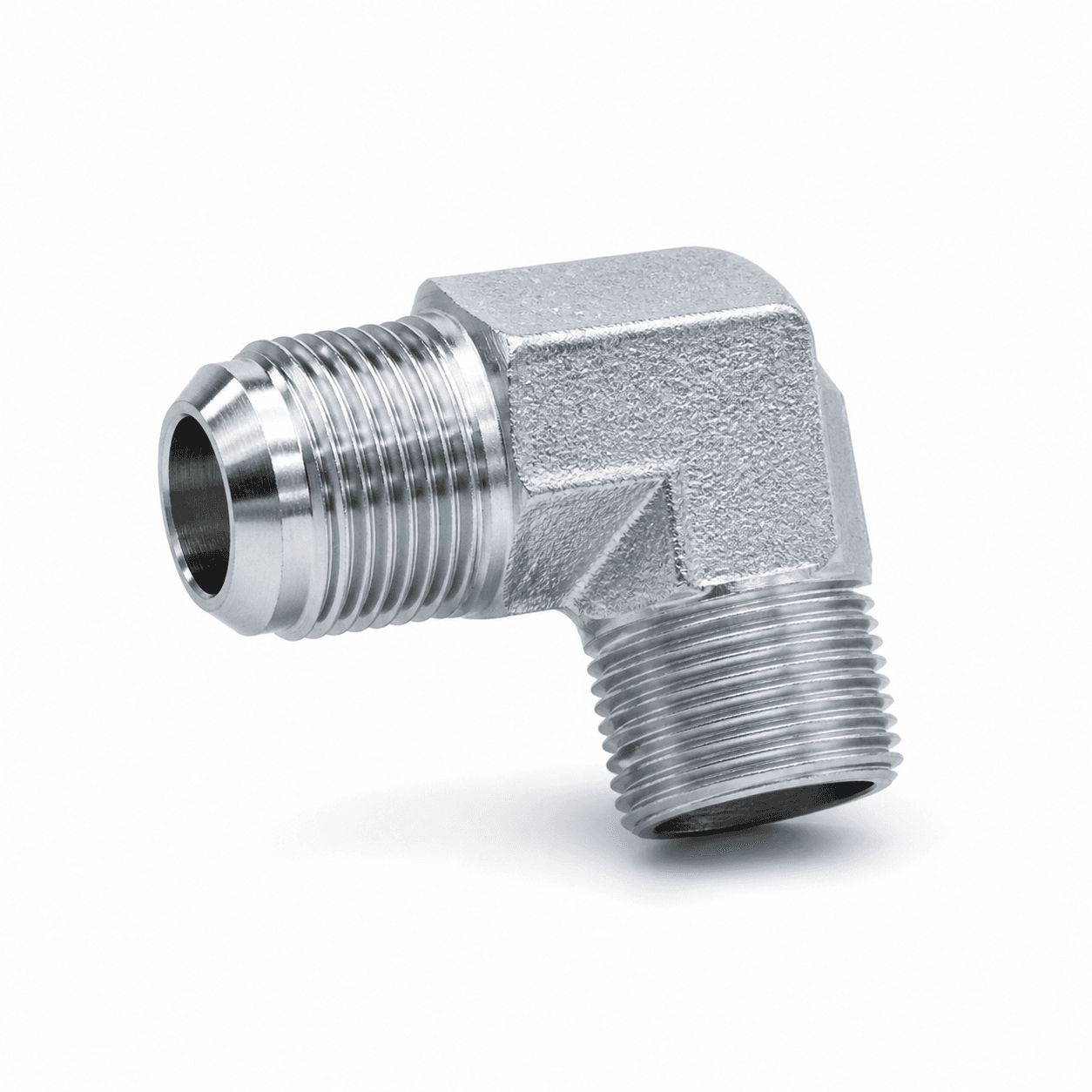

VIEW 01·90° elbow adapter, metric male 74° cone × NPT male, forged zinc-plated steel

90° Elbow Metric Male 74° Cone × NPT Male — metric adapter, 90 elbow body, 21 orderable sizes on this page. RFQ-only; standard Indus zinc-plated carbon-steel construction.

Key features

Body Configuration: 90 elbow
Port A Thread: Metric M12×1.5 to M52×2
Port A Sealing: Metric 37° cone (74° included)
Nominal Size Range: -12 to -52

Body Configuration: 90 elbow
Port A Thread: Metric M12×1.5 to M52×2
Port A Sealing: Metric 37° cone (74° included)
Nominal Size Range: -12 to -52

Enquire on WhatsApp Email for a quotation

Ships in 24h

Order before 14:00 GST · Jebel Ali

24-month warranty

Manufacturer-backed · genuine parts

Engineering support

A real applications engineer

Product description

The 90° Elbow Metric Male 74° Cone × NPT Male is a 90 elbow hydraulic adapter in the Indus metric range. Every size the manufacturer publishes is listed in the Sizes & Part Numbers tab, with the thread on each end, the dimensions and the part number to quote.

Construction

Body configuration: 90 elbow
Port A: Metric Male 74° Cone
Port B: NPT Male
Material: carbon steel (stainless steel available on request)
Surface treatment: zinc-plated, Cr3+ passivated, RoHS-compliant

Threads

Port A: Metric M12×1.5 to M52×2
Port B: NPT 1/8-27 to 1.1/2-11.5

Sealing

Metric 37° cone (74° included) and NPT taper thread. Match the seat as well as the thread — a thread that engages against the wrong seat will weep under pressure, and several of these families share a thread while sealing differently.

Performance

The manufacturer publishes no pressure rating for this family. Tell us the working pressure your line sees and we will confirm the fitting is rated for it before you order.

Applicable standards

ISO 8434-2 profile, metric thread, ANSI/ASME B1.20.1.

How to order

Quote the Indus part number from the size table. If you have only the ports, send us the thread on each end and whether you need carbon steel or stainless, and Indus engineering will confirm the part number against your equipment.

Companion products

These are tube and port adapters, not hose ends. For hose assemblies pair them with Indus crimp ferrules and the matching hose-end fitting; for tube runs, with Indus cutting rings and end nuts.

Identification

Parameter	Value
Body Configuration	90 elbow

Port A

Parameter	Value
Port A Thread	Metric M12×1.5 to M52×2
Port A Sealing	Metric 37° cone (74° included)
Port A Gender	male

Port B

Parameter	Value
Port B Thread	NPT 1/8-27 to 1.1/2-11.5
Port B Sealing	NPT taper thread
Port B Gender	male

Dimensions

Parameter	Value
Nominal Size Range	-12 to -52

Construction

Parameter	Value
Material	Carbon steel (stainless on request)
Surface Treatment	Zinc-plated, Cr3+ passivated, RoHS-compliant

Compliance

Parameter	Value
Applicable Standards	ISO 8434-2 profile, metric thread, ANSI/ASME B1.20.1

Shipping & lead time

Lead TimeEx-stock from Dubai — delivered within 3 working days in the UAE. Export orders ship on the lane stated for the destination.

Sizes & part numbers

21 sizes

Indus part no.	End 1	End 2	S1 (mm)	L1 (mm)	L2 (mm)
IH-AD-MET-037-1202	M12X1.5	NPT1/8"X27	11	24	24
IH-AD-MET-037-1204	M12X1.5	NPT1/4"X18	14	25	25.5
IH-AD-MET-037-1402	M14X1.5	NPT1/8"X27	14	28.5	23.5
IH-AD-MET-037-1404	M14X1.5	NPT1/4"X18	14	28.5	28.5
IH-AD-MET-037-1604	M16X1.5	NPT1/4"X18	16	30.5	30.5
IH-AD-MET-037-1606	M16X1.5	NPT3/8"X18	16	30.5	30.5
IH-AD-MET-037-1608	M16X1.5	NPT1/2"X14	22	34	34
IH-AD-MET-037-1804	M18X1.5	NPT1/4"X18	19	31.5	28.7
IH-AD-MET-037-1806	M18X1.5	NPT3/8"X18	19	31.5	31.5
IH-AD-MET-037-2206	M22X1.5	NPT3/8"X18	22	34	34
IH-AD-MET-037-2208	M22X1.5	NPT1/2"X14	22	35.5	35.5
IH-AD-MET-037-2708	M27X1.5	NPT1/2"X14	27	37.5	37.5
IH-AD-MET-037-2712	M27X1.5	NPT3/4"X14	27	37.5	43
IH-AD-MET-037-2716	M27X1.5	NPT1"X11.5	33	43	47
IH-AD-MET-037-3012	M30X1.5	NPT3/4"X14	30	43	43
IH-AD-MET-037-3616	M36X2	NPT1"X11.5	36	47	47
IH-AD-MET-037-3916	M39X2	NPT1"X11.5	41	50	50
IH-AD-MET-037-4220	M42X2	NPT1.1/4"X11.5	41	52.5	52.5
IH-AD-MET-037-4516	M45X2	NPT1"X11.5	46	54	54
IH-AD-MET-037-4520	M45X2	NPT1.1/4"X11.5	46	54	54
IH-AD-MET-037-5224	M52X2	NPT1.1/2"X11.5	50	56	63

End 1 — Thread or flange nominal size at this end, exactly as the manufacturer prints it. End 2 — Thread or flange nominal size at this end, exactly as the manufacturer prints it. S1 — Dimension S1 on the manufacturer dimension drawing. L1 — Dimension L1 on the manufacturer dimension drawing. L2 — Dimension L2 on the manufacturer dimension drawing. Ask us for the dimension drawing if you need it stamped.

Every size is available in 316 stainless steel on request — add “-SS” to the part number when you enquire.

Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
