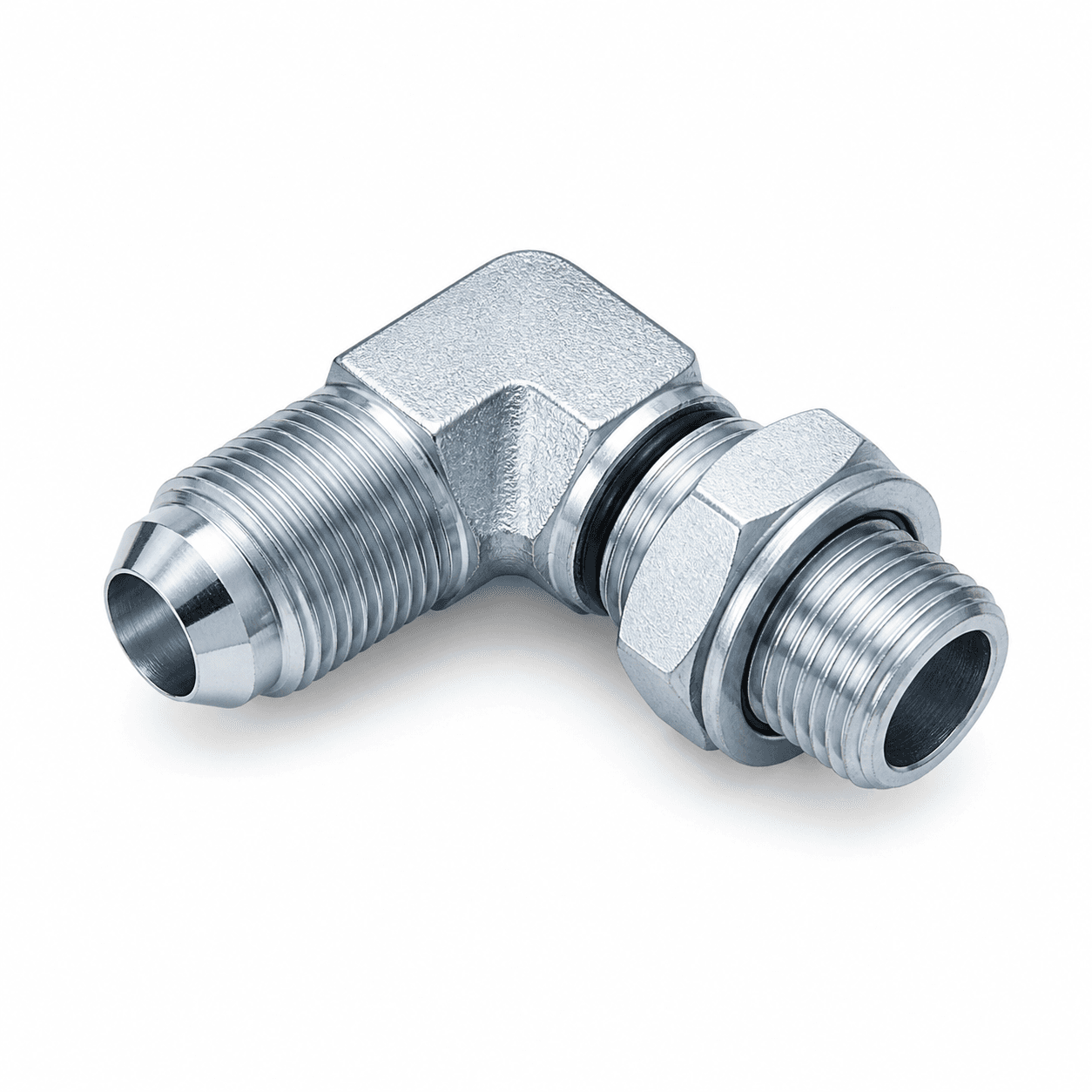

90° Elbow Metric Male 74° Cone × BSP Male O-Ring Adjustable Stud End
90° Elbow Metric Male 74° Cone × BSP Male O-Ring Adjustable Stud End — metric adapter, 90 elbow body, 11 orderable sizes on this page. RFQ-only; standard Indus zinc-plated carbon-steel construction.
Key features
- Body Configuration: 90 elbow
- Port A Thread: Metric M14×1.5 to M45×2
- Port A Sealing: Metric 37° cone (74° included)
- Nominal Size Range: -14 to -45
- Max Working Pressure: up to 315 bar (4,569 psi), manufacturer stated
- Body Configuration
- 90 elbow
- Port A Thread
- Metric M14×1.5 to M45×2
- Port A Sealing
- Metric 37° cone (74° included)
- Nominal Size Range
- -14 to -45
- Max Working Pressure
- up to 315 bar (4,569 psi), manufacturer stated
Product description
The 90° Elbow Metric Male 74° Cone × BSP Male O-Ring Adjustable Stud End is a 90 elbow hydraulic adapter in the Indus metric range. Every size the manufacturer publishes is listed in the Sizes & Part Numbers tab, with the thread on each end, the dimensions, the weight and the working pressure.
Construction
- Body configuration: 90 elbow
- Port A: Metric Male 74° Cone
- Port B: BSP Male O-Ring Adjustable Stud End
- Material: carbon steel (stainless steel available on request)
- Surface treatment: zinc-plated, Cr3+ passivated, RoHS-compliant
Threads
- Port A: Metric M14×1.5 to M45×2
- Port B: BSP (G) G1/4-19 to G1.1/4-11
Sealing
Metric 37° cone (74° included). Match the seat as well as the thread — a thread that engages against the wrong seat will weep under pressure, and several of these families share a thread while sealing differently.
Performance
The manufacturer states 100 to 315 bar depending on size, printed against every size in the table. That is the rating of the adapter; an assembly is limited by whichever component is rated lowest — the hose, the tube or the port.
Applicable standards
ISO 8434-2 profile, metric thread.
How to order
Quote the Indus part number from the size table. If you have only the ports, send us the thread on each end and whether you need carbon steel or stainless, and Indus engineering will confirm the part number against your equipment.
Companion products
These are tube and port adapters, not hose ends. For hose assemblies pair them with Indus crimp ferrules and the matching hose-end fitting; for tube runs, with Indus cutting rings and end nuts.
Identification
| Parameter | Value |
|---|---|
| Body Configuration | 90 elbow |
Port A
| Parameter | Value |
|---|---|
| Port A Thread | Metric M14×1.5 to M45×2 |
| Port A Sealing | Metric 37° cone (74° included) |
| Port A Gender | male |
Port B
| Parameter | Value |
|---|---|
| Port B Thread | BSP (G) G1/4-19 to G1.1/4-11 |
| Port B Gender | male |
Dimensions
| Parameter | Value |
|---|---|
| Nominal Size Range | -14 to -45 |
Performance
| Parameter | Value |
|---|---|
| Max Working Pressure | up to 315 bar (4,569 psi), manufacturer stated |
Construction
| Parameter | Value |
|---|---|
| Material | Carbon steel (stainless on request) |
| Surface Treatment | Zinc-plated, Cr3+ passivated, RoHS-compliant |
Compliance
| Parameter | Value |
|---|---|
| Applicable Standards | ISO 8434-2 profile, metric thread |
Shipping & lead time
The same part, in the designations used across European and Gulf trade catalogues.
- de
- Adapter 90° Bogen metrisch Außengewinde auf BSP Außengewinde
- fr
- adaptateur coude 90° métrique mâle sur BSP mâle
- es
- adaptador codo 90° métrica macho a BSP macho
- it
- adattatore gomito 90° metrica maschio a BSP maschio
