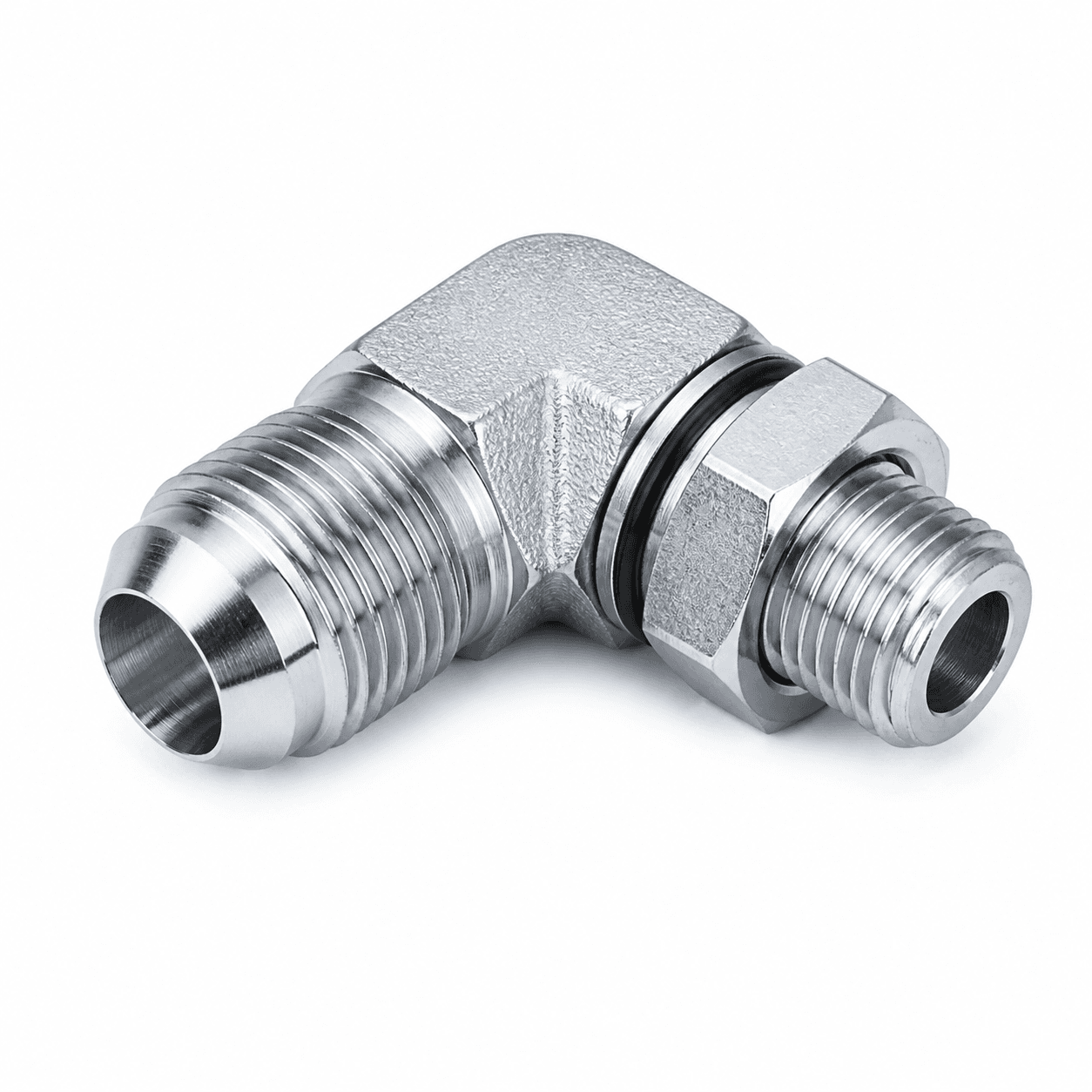

90° Elbow Metric Male 74° Cone × Metric Male Adjustable Stud End ISO
90° Elbow Metric Male 74° Cone × Metric Male Adjustable Stud End ISO — metric adapter, 90 elbow body, 10 orderable sizes on this page. RFQ-only; standard Indus zinc-plated carbon-steel construction.
Key features
- Body Configuration: 90 elbow
- Port A Thread: Metric M14×1.5 to M45×2
- Port A Sealing: Metric 37° cone (74° included)
- Nominal Size Range: -14 to -45
- Body Configuration
- 90 elbow
- Port A Thread
- Metric M14×1.5 to M45×2
- Port A Sealing
- Metric 37° cone (74° included)
- Nominal Size Range
- -14 to -45
Product description
The 90° Elbow Metric Male 74° Cone × Metric Male Adjustable Stud End ISO is a 90 elbow hydraulic adapter in the Indus metric range. Every size the manufacturer publishes is listed in the Sizes & Part Numbers tab, with the thread on each end, the dimensions and the part number to quote.
Construction
- Body configuration: 90 elbow
- Port A: Metric Male 74° Cone
- Port B: Metric Male Adjustable Stud End L-Series ISO
- Material: carbon steel (stainless steel available on request)
- Surface treatment: zinc-plated, Cr3+ passivated, RoHS-compliant
Threads
- Port A: Metric M14×1.5 to M45×2
- Port B: Metric M12×1.5 to M42×2
Sealing
Metric 37° cone (74° included). Match the seat as well as the thread — a thread that engages against the wrong seat will weep under pressure, and several of these families share a thread while sealing differently.
Performance
The manufacturer publishes no pressure rating for this family. Tell us the working pressure your line sees and we will confirm the fitting is rated for it before you order.
Applicable standards
ISO 8434-2 profile, metric thread.
How to order
Quote the Indus part number from the size table. If you have only the ports, send us the thread on each end and whether you need carbon steel or stainless, and Indus engineering will confirm the part number against your equipment.
Companion products
These are tube and port adapters, not hose ends. For hose assemblies pair them with Indus crimp ferrules and the matching hose-end fitting; for tube runs, with Indus cutting rings and end nuts.
Identification
| Parameter | Value |
|---|---|
| Body Configuration | 90 elbow |
Port A
| Parameter | Value |
|---|---|
| Port A Thread | Metric M14×1.5 to M45×2 |
| Port A Sealing | Metric 37° cone (74° included) |
| Port A Gender | male |
Port B
| Parameter | Value |
|---|---|
| Port B Thread | Metric M12×1.5 to M42×2 |
| Port B Gender | male |
Dimensions
| Parameter | Value |
|---|---|
| Nominal Size Range | -14 to -45 |
Construction
| Parameter | Value |
|---|---|
| Material | Carbon steel (stainless on request) |
| Surface Treatment | Zinc-plated, Cr3+ passivated, RoHS-compliant |
Compliance
| Parameter | Value |
|---|---|
| Applicable Standards | ISO 8434-2 profile, metric thread |
