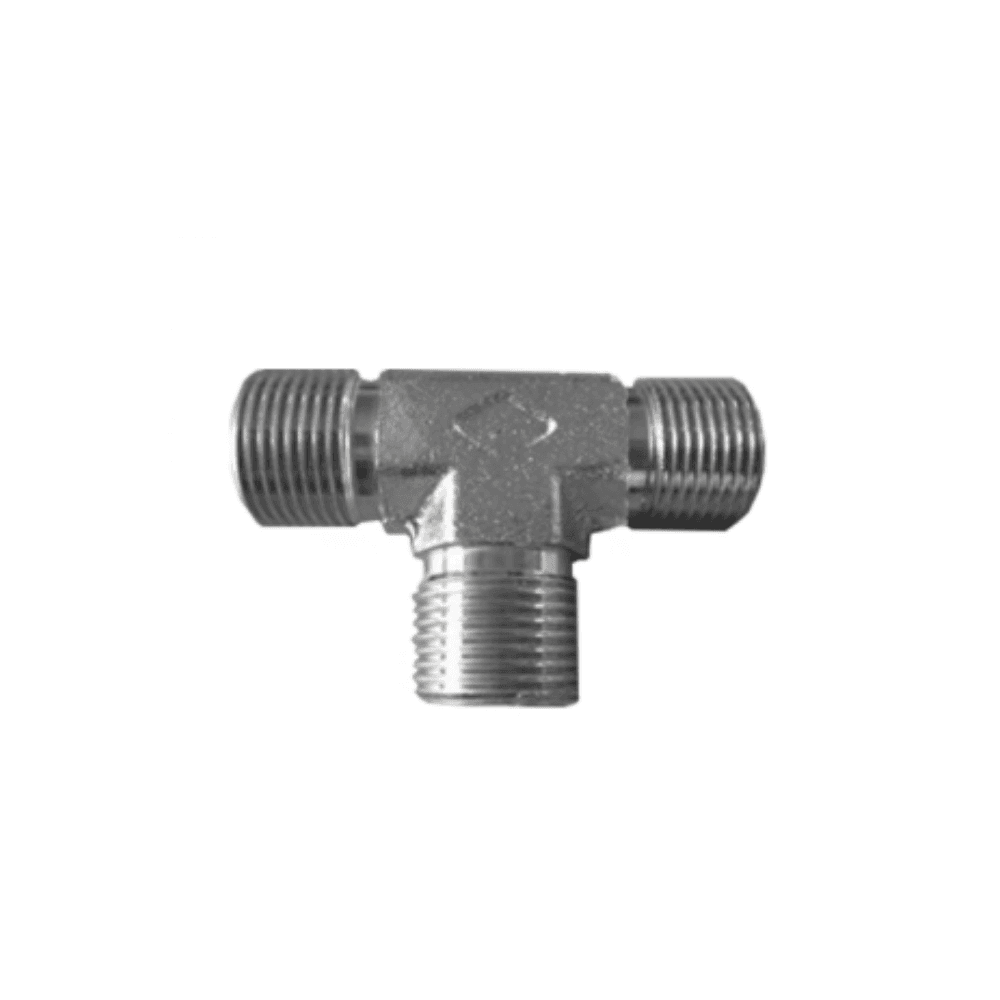

Steel JIC 37° Male × Metric Adjustable Branch Tee
Steel JIC 37° Male × Metric Adjustable Branch Tee, carbon steel. 8 part numbers, 1/4" to 1"; the size table gives the size on each end for every Indus part number.
Key features
- Body Configuration: adjustable branch tee
- Port A Thread: 37° JIC, 1/4" to 1" (7/16-20 to 1-5/16-12)
- Port A Sealing: 37° flare, a metal-to-metal seat on a 74° included cone
- Nominal Size Range: 1/4" to 1"
- Body Configuration
- adjustable branch tee
- Port A Thread
- 37° JIC, 1/4" to 1" (7/16-20 to 1-5/16-12)
- Port A Sealing
- 37° flare, a metal-to-metal seat on a 74° included cone
Product description
The Steel JIC 37° Male × Metric Adjustable Branch Tee is an adjustable branch tee, in carbon steel. Its ends are 37° JIC male, 37° JIC male and metric adjustable male. Metric adapters join metric ports and 24° cone tube ends to JIC, BSP and NPT lines.
Construction
- Body: adjustable branch tee
- End 1: 37° JIC male
- End 2: 37° JIC male
- End 3: metric adjustable male
- Material: carbon steel
Ends and sealing
- 37° JIC: 37° flare, a metal-to-metal seat on a 74° included cone; SAE J514 / ISO 8434-2.
- metric: metric thread; the sealing method depends on the mating port, so confirm it before ordering.
Sizes
8 part numbers, 1/4" to 1". The Sizes & Part Numbers tab lists the size on each end for every one.
- End 1: 37° JIC, 1/4" to 1" (7/16-20 to 1-5/16-12)
- End 2: 37° JIC, 1/4" to 1" (7/16-20 to 1-5/16-12)
- End 3: metric, M10×1 to M33×2
Pressure rating
The manufacturer publishes no pressure rating for this family. Tell us the working pressure your line sees and we will confirm the fitting is rated for it before you order.
How to order
Quote the Indus part number from the size table. If you only have the fitting, send the thread or tube size on each end, and Indus engineering will confirm the part number. Price and lead time are confirmed with the quotation.
Identification
| Parameter | Value |
|---|---|
| Body Configuration | adjustable branch tee |
| Adjustable | yes |
Port A
| Parameter | Value |
|---|---|
| Port A Thread | 37° JIC, 1/4" to 1" (7/16-20 to 1-5/16-12) |
| Port A Sealing | 37° flare, a metal-to-metal seat on a 74° included cone |
| Port A Gender | male |
Port B
| Parameter | Value |
|---|---|
| Port B Thread | 37° JIC, 1/4" to 1" (7/16-20 to 1-5/16-12) |
| Port B Sealing | 37° flare, a metal-to-metal seat on a 74° included cone |
| Port B Gender | male |
Port C
| Parameter | Value |
|---|---|
| Additional Ports | metric adjustable male |
Dimensions
| Parameter | Value |
|---|---|
| Nominal Size Range | 1/4" to 1" |
Construction
| Parameter | Value |
|---|---|
| Material | carbon steel |
Compliance
| Parameter | Value |
|---|---|
| Applicable Standards | SAE J514, ISO 8434-2 |
Shipping & lead time
Sizes & part numbers
8 sizes| Indus part no. | End 1 | End 2 | End 3 |
|---|---|---|---|
| IH-ST-9169-04-04-10 | 1/4" JIC 37° (7/16-20) | 1/4" JIC 37° (7/16-20) | M10×1 metric |
| IH-ST-9169-04-04-12 | 1/4" JIC 37° (7/16-20) | 1/4" JIC 37° (7/16-20) | M12×1.5 metric |
| IH-ST-9169-06-06-14 | 3/8" JIC 37° (9/16-18) | 3/8" JIC 37° (9/16-18) | M14×1.5 metric |
| IH-ST-9169-08-08-16 | 1/2" JIC 37° (3/4-16) | 1/2" JIC 37° (3/4-16) | M16×1.5 metric |
| IH-ST-9169-08-08-18 | 1/2" JIC 37° (3/4-16) | 1/2" JIC 37° (3/4-16) | M18×1.5 metric |
| IH-ST-9169-10-10-22 | 5/8" JIC 37° (7/8-14) | 5/8" JIC 37° (7/8-14) | M22×1.5 metric |
| IH-ST-9169-12-12-27 | 3/4" JIC 37° (1-1/16-12) | 3/4" JIC 37° (1-1/16-12) | M27×2 metric |
| IH-ST-9169-16-16-33 | 1" JIC 37° (1-5/16-12) | 1" JIC 37° (1-5/16-12) | M33×2 metric |
End 1 — Thread or flange nominal size at this end, exactly as the manufacturer prints it. End 2 — Thread or flange nominal size at this end, exactly as the manufacturer prints it. End 3 — Thread or flange nominal size at this end, exactly as the manufacturer prints it. Ask us for the dimension drawing if you need it stamped.
Every size is available in 316 stainless steel on request — add “-SS” to the part number when you enquire.
What is it made from?▾
Which sizes are available?▾
What pressure is it rated to?▾
How does it seal?▾
What is the lead time?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
The same part, in the designations used across European and Gulf trade catalogues.
- de
- T-Stück JIC Außengewinde 37° Bördel auf metrisch
- fr
- té JIC mâle cône 37° sur métrique
- es
- te JIC macho cono 37° a métrica
- it
- raccordo a T JIC maschio cono 37° a metrica
From the blog
Written about this range
Thread & fitting identification
Korean excavator hydraulic fittings: expect more than one convention
These machines sit between the Japanese and European worlds, and the honest answer is that a single machine can carry both. What that means for how you identify and how you stock.
3 min read
Thread & fitting identification
BSPP bonded seals and dowty washers: getting the size right
A bonded seal is sized by the thread it sits under, not by the bore of the fitting or the size printed on the box. That one sentence resolves most of the confusion.
5 min read
Failure analysis
Why a new hose assembly weeps, and what to check before blaming the crimp
A hose fitted this morning is damp by the afternoon. The crimp is the last thing to suspect, not the first — and there are five checks ahead of it that take a minute each.
6 min read
Engineers viewing this also looked at
Steel Metric Male × NPTF Female Adapter
Steel NPTF Male × Metric Female Adapter
Steel Metric Dual-Purpose Male (Port or 24° Tube) × NPTF Female Adapter, L Series
Steel Metric Dual-Purpose Male (Port or 24° Tube) × NPTF Female Adapter, S Series
BSM Bonded Seal
Male Cross Metric

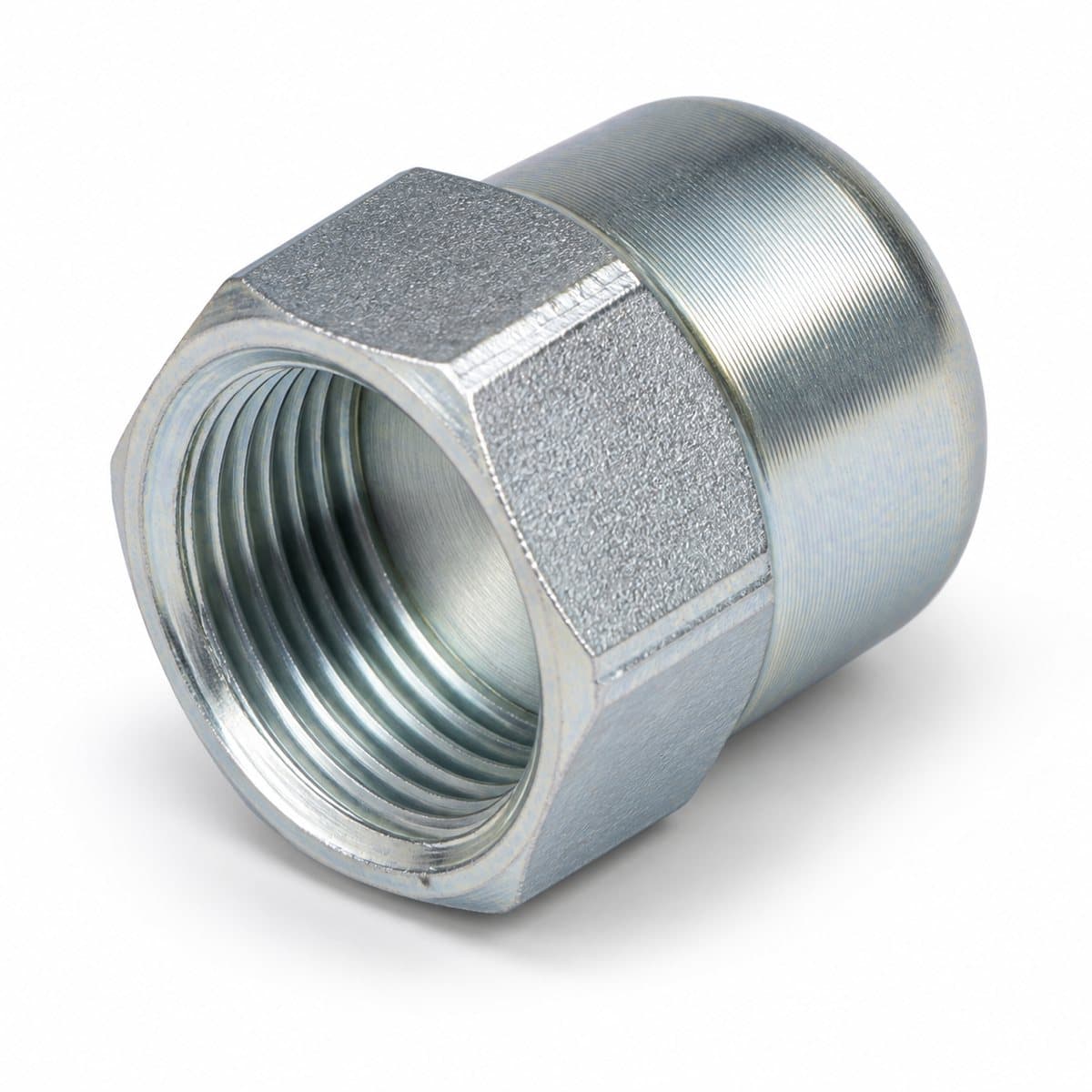

Swivel Cap Metric
