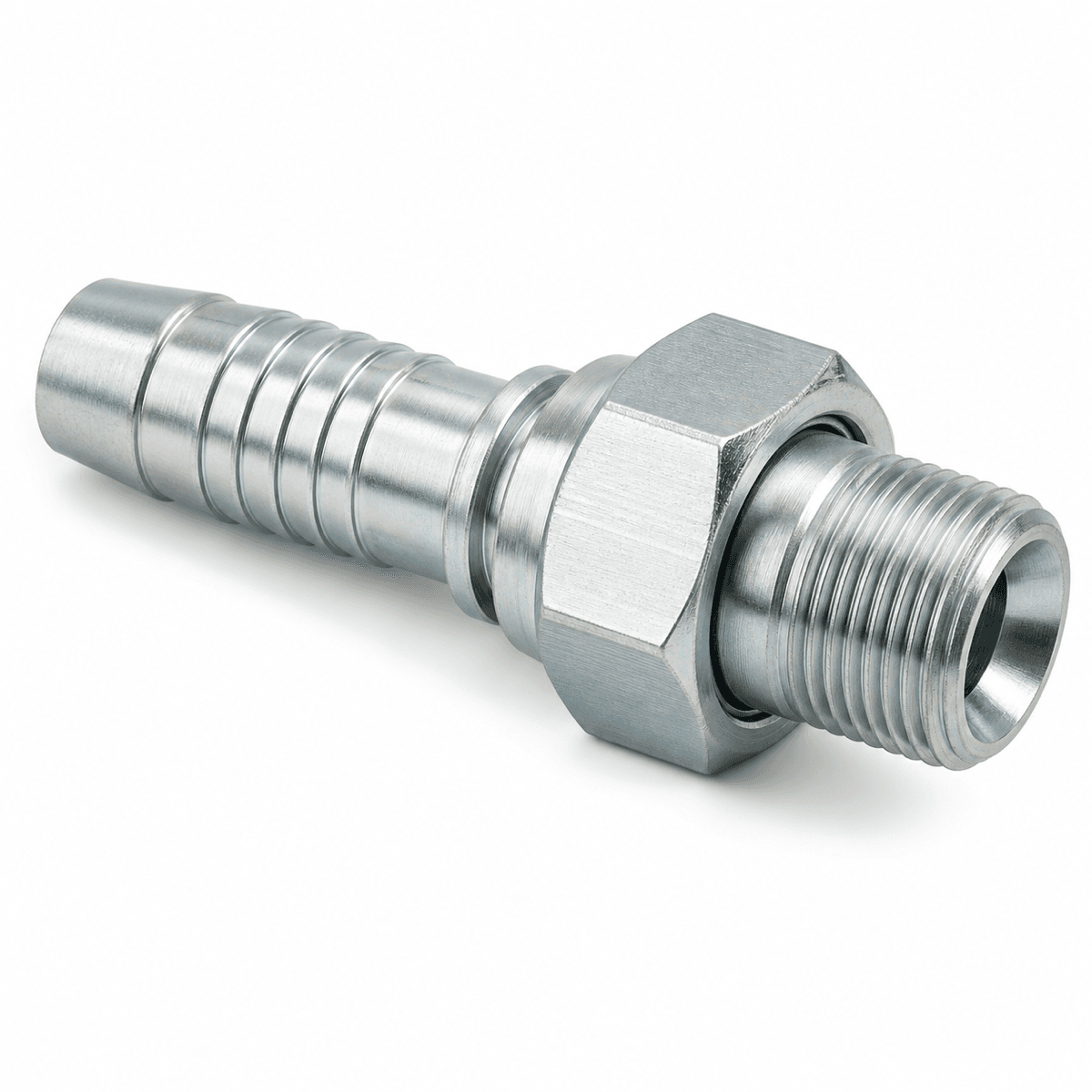

NPSM Male Swivel Hose Fitting
Straight male swivel hose fitting on NPSM straight pipe thread — the nut turns freely so the hose is not twisted during installation. straight, NPSM straight pipe thread (1/4" – 2" NPSM), 60° internal cone (swivel nut — seal on the cone, not the thread).
Key features
- Fitting Configuration: straight
- Thread Form: NPSM straight pipe thread (1/4" – 2" NPSM)
- Sealing Form: 60° internal cone (swivel nut — seal on the cone, not the thread)
- Nominal Size Range: DN6 – DN51 (1/4" – 2")
- Fitting Configuration
- straight
- Thread Form
- NPSM straight pipe thread (1/4" – 2" NPSM)
- Sealing Form
- 60° internal cone (swivel nut — seal on the cone, not the thread)
- Nominal Size Range
- DN6 – DN51 (1/4" – 2")
Product description
The NPSM Male Swivel Hose Fitting is a straight hydraulic hose fitting in the NPSM family — male thread with 60° internal cone (swivel nut — seal on the cone, not the thread) sealing form. Compliant with SAE J514, ASME B1.20.1.
Construction
- Configuration: straight
- Thread form: NPSM straight pipe thread (1/4" – 2" NPSM)
- Sealing form: 60° internal cone (swivel nut — seal on the cone, not the thread)
- Gender: male
- Material: Carbon steel (stainless steel available on request)
- Surface treatment: Zinc-plated, Cr3+ passivated, RoHS-compliant
- Notes: Swivel nut removes installation torque from the hose. Mates to NPSM/NPTF male ports with a 60° seat — do not treat as a taper-thread NPT fitting.
Performance
Pressure rating matches the matching ferrule and host hose grade — see Indus Crimp Ferrules for compatibility tables. Tested to manufacturer-recommended impulse cycles when crimped to the correct ferrule diameter. Operating temperature -40°C to +120°C; refer to fluid compatibility chart for aggressive media.
Applicable Standards
- SAE J514
- ASME B1.20.1
How to order
Specify (a) the host hose grade and bore size, (b) the matching crimp ferrule (see the Crimp Ferrules category), and (c) the thread size you need. Indus crimps and pressure-tests the assembly before dispatch.
Companion products
Pair with Indus crimp ferrules from the matching hose grade. For other thread families see the Metric, BSP, JIC 37°, DIN, and Japanese sub-categories under Hose Fittings.
Identification
| Parameter | Value |
|---|---|
| Fitting Configuration | straight |
| Thread Form | NPSM straight pipe thread (1/4" – 2" NPSM) |
| Sealing Form | 60° internal cone (swivel nut — seal on the cone, not the thread) |
| Thread Gender | male |
Dimensions
| Parameter | Value |
|---|---|
| Nominal Size Range | DN6 – DN51 (1/4" – 2") |
Construction
| Parameter | Value |
|---|---|
| Material | Carbon steel (stainless on request) |
| Surface Treatment | Zinc-plated, Cr3+ passivated, RoHS-compliant |
Compliance
| Parameter | Value |
|---|---|
| Applicable Standards | SAE J514, ASME B1.20.1 |
Shipping & lead time
Sizes & part numbers
14 sizes| Indus part no. | Hose bore | Size | S2 (mm) | A (mm) | B (mm) |
|---|---|---|---|---|---|
| IH-PT-NPSM-SWV-0404 | -04 · 1/4" · DN6 | 1/4"×18 | 19 | 22 | 4.6 |
| IH-PT-NPSM-SWV-0406 | -04 · 1/4" · DN6 | 3/8"×18 | 22 | 23 | 6 |
| IH-PT-NPSM-SWV-0506 | -05 · 5/16" · DN8 | 3/8"×18 | 22 | 23 | 6 |
| IH-PT-NPSM-SWV-0604 | -06 · 3/8" · DN10 | 1/4"×18 | 19 | 22 | 4.6 |
| IH-PT-NPSM-SWV-0606 | -06 · 3/8" · DN10 | 3/8"×18 | 22 | 23 | 6 |
| IH-PT-NPSM-SWV-0808 | -08 · 1/2" · DN12 | 1/2"×14 | 27 | 23.5 | 7.5 |
| IH-PT-NPSM-SWV-1012 | -10 · 5/8" · DN16 | 3/4"×14 | 32 | 27 | 8.9 |
| IH-PT-NPSM-SWV-1212 | -12 · 3/4" · DN20 | 3/4"×14 | 32 | 27 | 8.9 |
| IH-PT-NPSM-SWV-1216 | -12 · 3/4" · DN25 | 1"×11.5 | 41 | 25 | 10.5 |
| IH-PT-NPSM-SWV-1616 | -16 · 1" · DN32 | 1"×11.5 | 41 | 28.5 | 10.5 |
| IH-PT-NPSM-SWV-2020 | -20 · 1.1/4" · DN32 | 1.1/4"×11.5 | 50 | 29.5 | 11.2 |
| IH-PT-NPSM-SWV-2024 | -20 · 1.1/4" · DN32 | 1.1/2"×11.5 | 55 | 29.5 | 11.2 |
| IH-PT-NPSM-SWV-2424 | -24 · 1.1/2" · DN40 | 1.1/2"×11.5 | 55 | 31.5 | 11.2 |
| IH-PT-NPSM-SWV-3232 | -32 · 2" · DN50 | 2"×11.5 | 70 | 31 | 11.2 |
S2 — Dimension S2 on the manufacturer dimension drawing. A — Dimension A on the manufacturer dimension drawing. B — Dimension B on the manufacturer dimension drawing. Ask us for the dimension drawing if you need it stamped.
Every size is available in 316 stainless steel on request — add “-SS” to the part number when you enquire.
What thread family does this fitting use?▾
What thread sizes are available?▾
What is the sealing form?▾
What is the maximum working pressure?▾
What materials and finishes are available?▾
Which crimp ferrule should I pair with this fitting?▾
Is crimping included?▾
Lead time?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
The same part, in the designations used across European and Gulf trade catalogues.
- de
- gerade NPSM Außengewinde 60° Konus Schlaucharmatur
- fr
- mâle NPSM cône 60° embout de flexible
- es
- macho NPSM cono 60° racor de manguera
- it
- maschio NPSM cono 60° raccordo per tubo flessibile
From the blog
Written about this part
Thread & fitting identification
NPT, NPSM and SAE hose fittings: taper, swivel, flare and O-ring boss
Five American hose-end families that get confused because they share inch sizes. Which seals on the thread, which on a cone, which on an O-ring — and how to tell NPT from NPSM before it leaks.
4 min read
Thread & fitting identification
Hydraulic fittings and adapters: the complete guide to thread families, seats and seals
BSP, JIC, ORFS, NPT, NPSM, SAE flare, O-ring boss, metric 24° cone, Japanese 30° and SAE flanges: how each family seals, how to tell them apart, and which standard each one is made to.
6 min read
Engineers viewing this also looked at

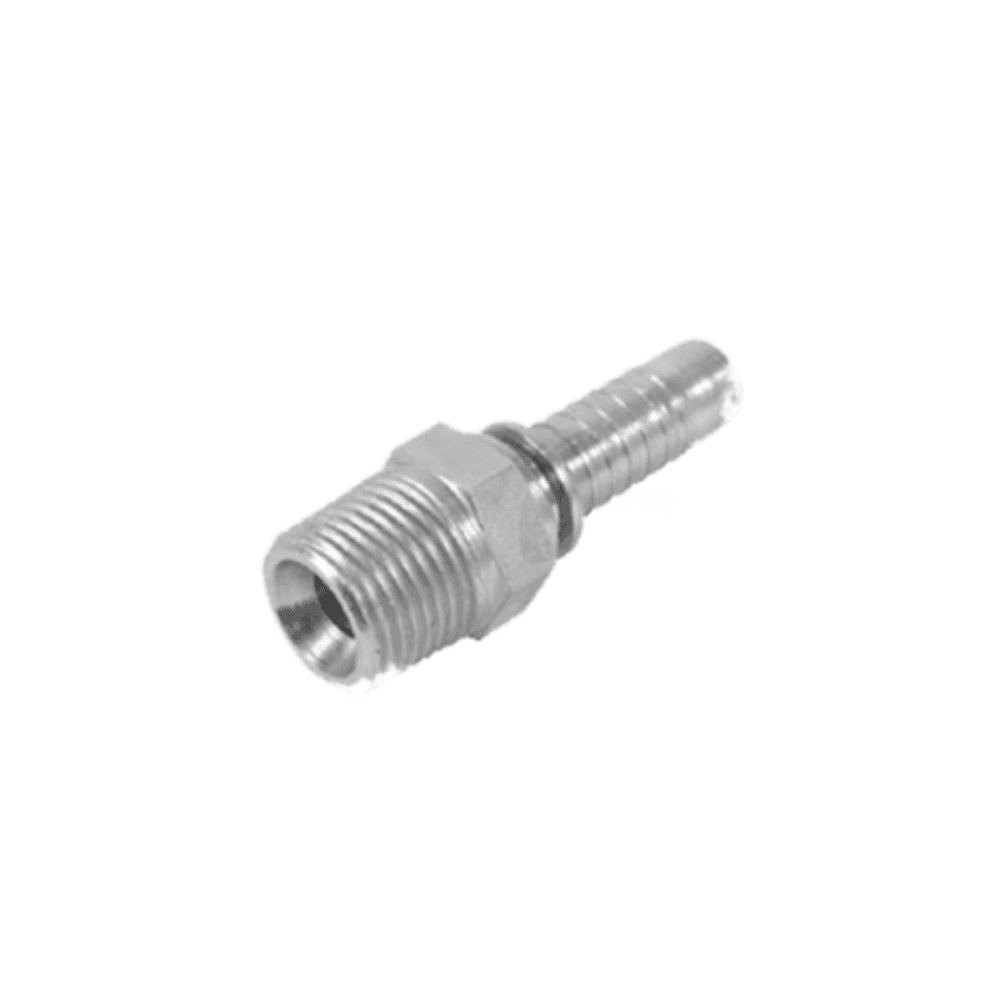

NPT Male Hose Fitting
SAE Female 45° Cone Hose Fitting
45° SAE Female 45° Cone Hose Fitting

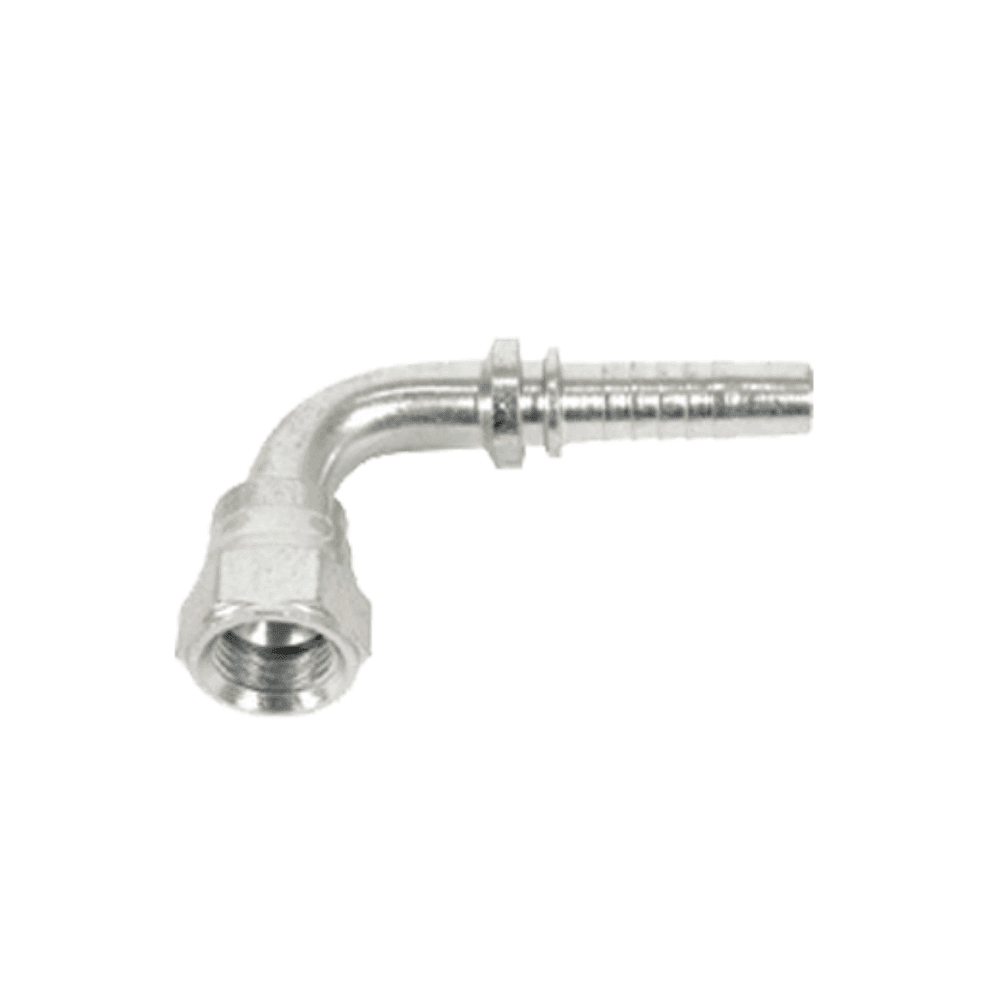

90° SAE Female 45° Cone Hose Fitting

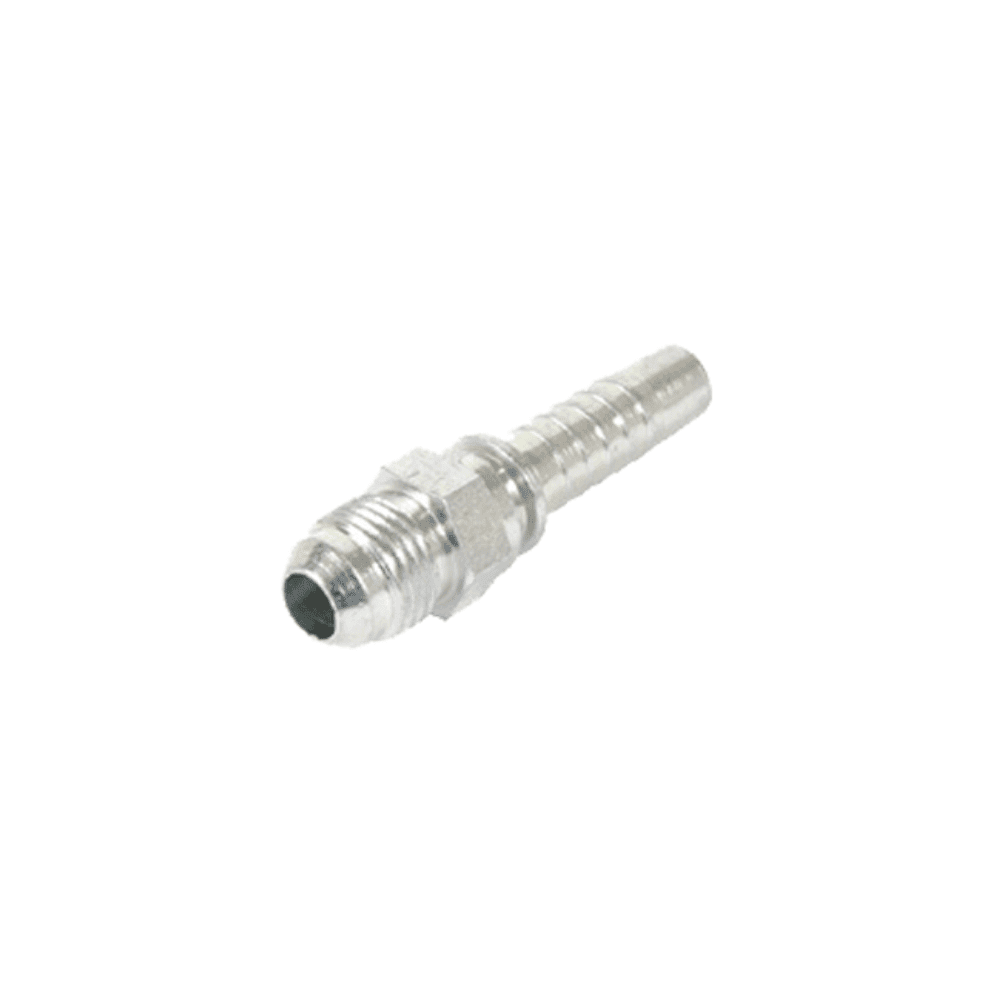

SAE Male 45° Cone Hose Fitting
SAE O-Ring Male Hose Fitting

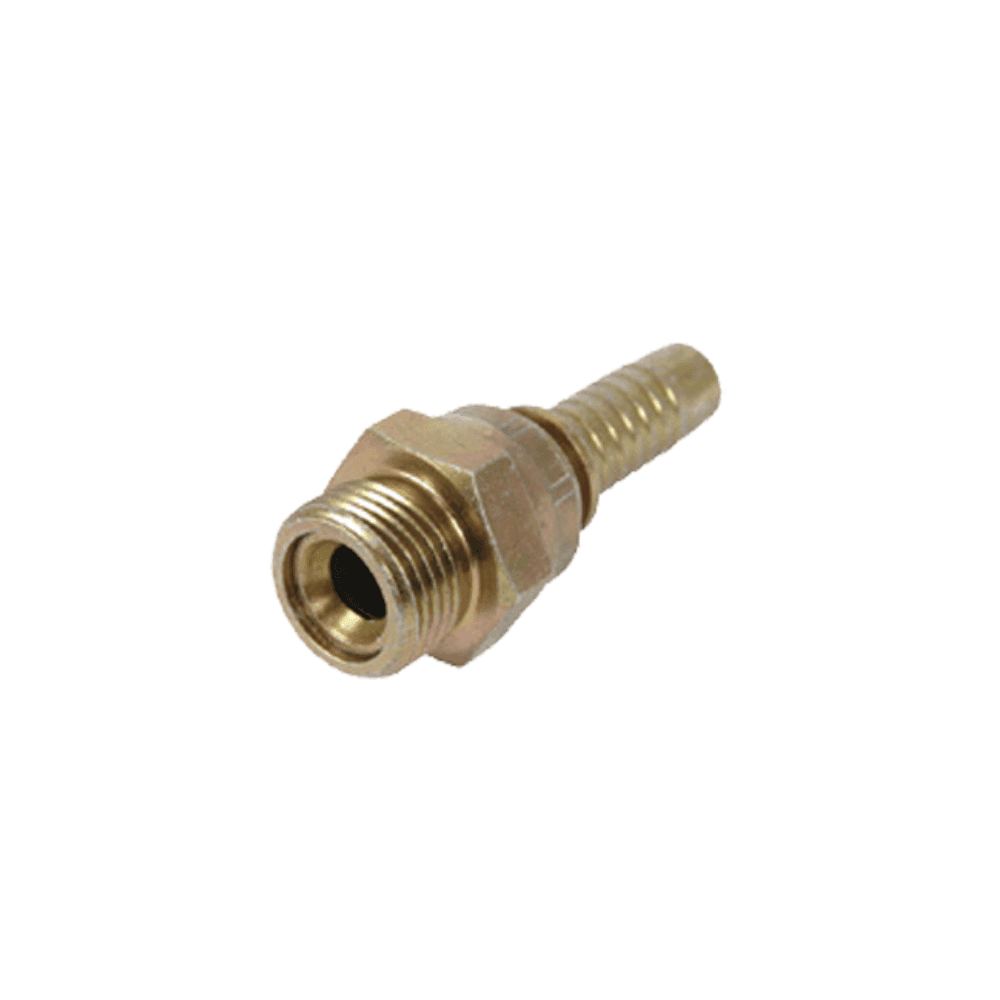

SAE Male Boss Swivel O-Ring Hose Fitting
