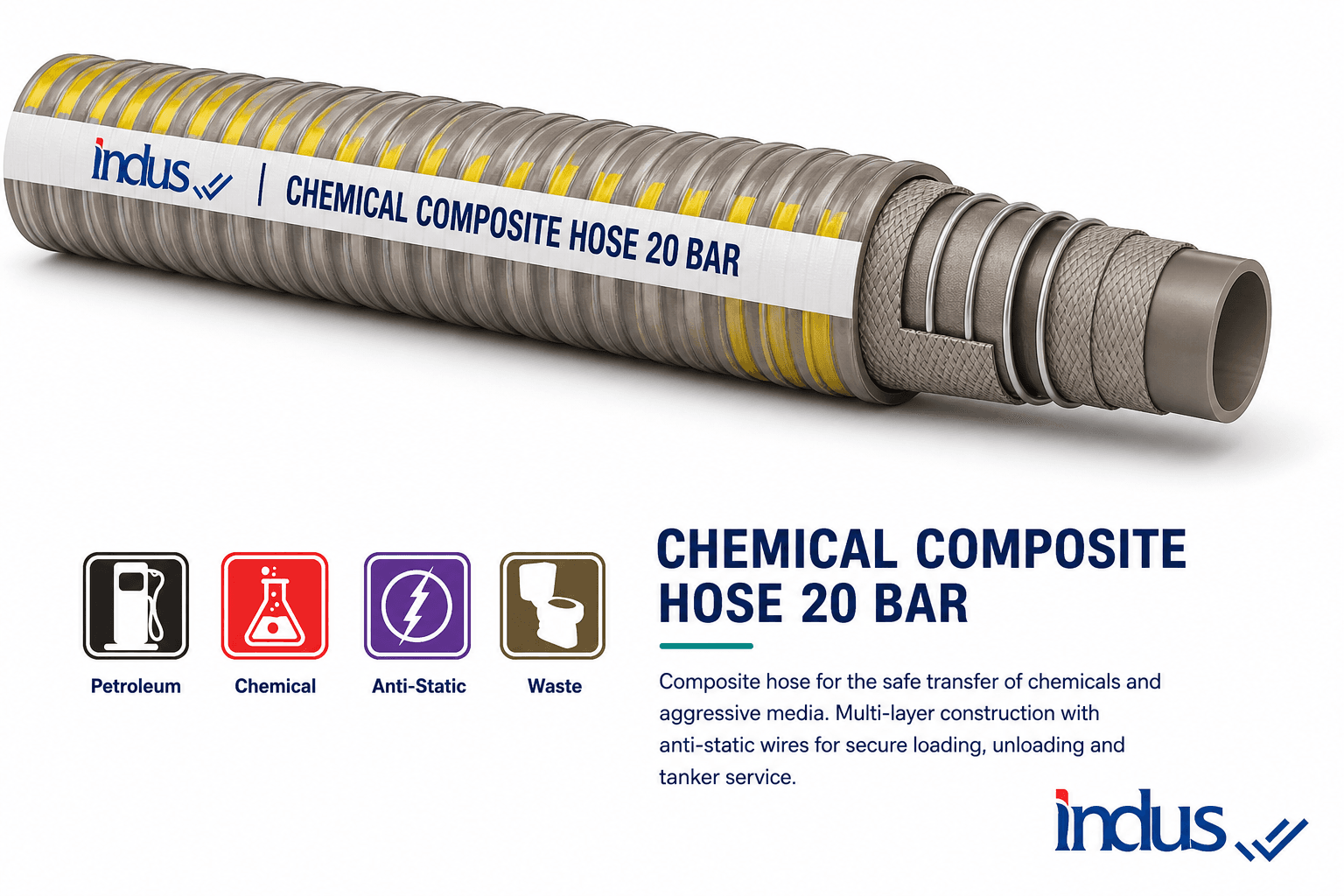

Chemical Composite Hose 20 Bar
Highly flexible hose for petrochemical plants and road tankers
Key features
- Application Family: composite
- Manufacturer Part Code: A906PG
- Inner Diameter Range: 25 mm to 100 mm
- Max Working Pressure: 20 bar
- Operating Temperature: -30°C TO +80°C
- Application Family
- composite
- Manufacturer Part Code
- A906PG
- Inner Diameter Range
- 25 mm to 100 mm
- Max Working Pressure
- 20 bar
- Operating Temperature
- -30°C TO +80°C
Product description
The Chemical Composite Hose 20 Bar (part code A906PG) is a Composite Hose from the Indus Hydraulics industrial hose range.
Application
Highly flexible hose for petrochemical plants and road tankers
Construction
- Cover: Grey weatherproof UV, ozone and abrasion resistant
- Lining / Tube: internal wire with polypropylene, polyethylene films and fabrics
- Reinforcement: High-tensile textile / synthetic reinforcement
- Branding (printed on hose): INDUS LOGO TYPE 3 EN13765:2015 20 BAR 80°C Reinforcement/ Polypropylene coated galvanised carbon steel
Performance
- Inner-diameter range: 25 mm to 100 mm
- Max working pressure: 20 bar
- Min burst pressure: 80 bar
- Min bend radius: 75-250 mm
- Weight: 0.80-4.80 kg/m
- Operating temperature: -30°C TO +80°C
- Safety factor: 4:1
Family context
Lightweight composite hoses with multi-ply polypropylene/polyester construction over an internal wire helix and external wire helix. EN 13765:2015 Type 3. For oil tanker, vapour recovery, and chemical service. Working pressure 20 bar.
How to order
Specify (a) the inner diameter from the size range, (b) the assembly length, (c) end-fitting requirements, and (d) any special requirements such as Lloyd's certification or third-party witness testing. Indus engineering will confirm the assembly drawing on the RFQ.
Companion products
Pair with matching couplings and accessories (Cam & Groove, Boss steam couplings, hose clamps, Holedall permanently-attached fittings, hose tags, and Spiral Hose Guard / Fire Jacket protective sleeves) — full range available on quote.
Identification
| Parameter | Value |
|---|---|
| Application Family | composite |
| Manufacturer Part Code | A906PG |
| Hose Branding (Printed) | INDUS LOGO, CHEMICAL COMPOSITE HOSE 20 BAR |
Dimensions
| Parameter | Value |
|---|---|
| Inner Diameter Range | 25 mm to 100 mm |
| Min Bend Radius | 75-250 mm |
| Weight | 0.80-4.80 kg/m |
Performance
| Parameter | Value |
|---|---|
| Max Working Pressure | 20 bar |
| Operating Temperature | -30°C TO +80°C |
| Safety Factor | 4:1 |
| Min Burst Pressure | 80 bar |
Construction
| Parameter | Value |
|---|---|
| Cover Material | Grey weatherproof UV, ozone and abrasion resistant |
| Lining / Tube Material | internal wire with polypropylene, polyethylene films and fabrics |
| Reinforcement | High-tensile textile / synthetic reinforcement |
Shipping & lead time
Sizes & part numbers
7 sizes| Indus part no. | Hose bore | Min bend radius (mm) | Weight (kg/m) |
|---|---|---|---|
| IH-IH-A906PG-025 | 1" · DN25 | 75 | 0.8 |
| IH-IH-A906PG-032 | 1-1/4" · DN32 | 80 | 1 |
| IH-IH-A906PG-040 | DN40 | 85 | 1.4 |
| IH-IH-A906PG-050 | DN50 | 125 | 2 |
| IH-IH-A906PG-065 | DN65 | 150 | 2.8 |
| IH-IH-A906PG-075 | DN75 | 175 | 3.5 |
| IH-IH-A906PG-100 | DN100 | 250 | 4.8 |
Min bend radius — Tightest centreline radius the hose may be bent to at full working pressure. Weight — Weight of the hose per metre, as published.
Cut lengths and made-up assemblies are prepared in Dubai. Tell us the bore, the length and the ends you need.
What is this hose used for?▾
What sizes are available?▾
What is the maximum working pressure?▾
What is the operating temperature range?▾
What is the construction (cover / lining / reinforcement)?▾
What is the printed branding on the hose?▾
Lead time?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
