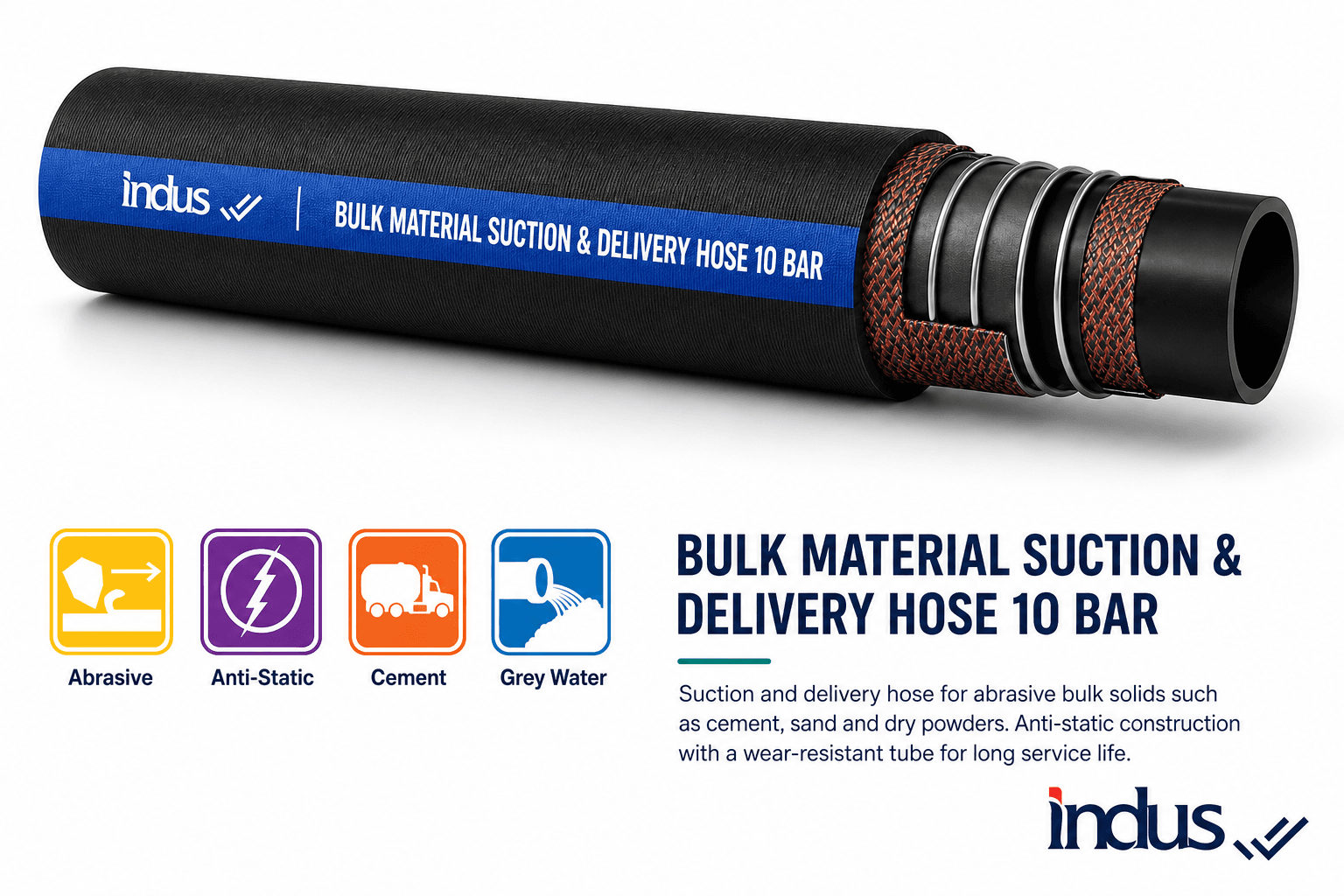

Bulk Material Suction & Delivery Hose 10 bar
Heavy duty hose for use in mining, construction, civil engineering, foundries and bulk transportation
Key features
- Application Family: abrasive
- Manufacturer Part Code: A361
- Inner Diameter Range: 76 mm to 102 mm
- Max Working Pressure: 10 bar
- Operating Temperature: From -40°C to +70°C
- Application Family
- abrasive
- Manufacturer Part Code
- A361
- Inner Diameter Range
- 76 mm to 102 mm
- Max Working Pressure
- 10 bar
- Operating Temperature
- From -40°C to +70°C
Product description
The Bulk Material Suction & Delivery Hose 10 bar (part code A361) is a Abrasive / Bulk Material Hose from the Indus Hydraulics industrial hose range.
Application
Heavy duty hose for use in mining, construction, civil engineering, foundries and bulk transportation
Construction
- Cover: Black abrasion, weather & ozone resistant synthetic rubber
- Lining / Tube: Black anti-static natural rubber
- Reinforcement: High tensile strength textile plies, steel helix and anti-static wires
- Branding (printed on hose): INDUS LOGO, A361 BULK MATERIAL S & D HOSE 10 BAR
Performance
- Inner-diameter range: 76 mm to 102 mm
- Max working pressure: 10 bar
- Min burst pressure: 30 bar
- Min bend radius: 380-550 mm
- Weight: 3.76-4.55 kg/m
- Operating temperature: From -40°C to +70°C
- Safety factor: 3:1
Family context
Bulk-material and abrasive-handling hoses for sand, cement, dry powders, slurry, and grain. Heavy-duty NR / PVC tube with helical wire reinforcement.
How to order
Specify (a) the inner diameter from the size range, (b) the assembly length, (c) end-fitting requirements, and (d) any special requirements such as Lloyd's certification or third-party witness testing. Indus engineering will confirm the assembly drawing on the RFQ.
Companion products
Pair with matching couplings and accessories (Cam & Groove, Boss steam couplings, hose clamps, Holedall permanently-attached fittings, hose tags, and Spiral Hose Guard / Fire Jacket protective sleeves) — full range available on quote.
Identification
| Parameter | Value |
|---|---|
| Application Family | abrasive |
| Manufacturer Part Code | A361 |
| Hose Branding (Printed) | INDUS LOGO, A361 BULK MATERIAL S & D HOSE 10 BAR |
Dimensions
| Parameter | Value |
|---|---|
| Inner Diameter Range | 76 mm to 102 mm |
| Min Bend Radius | 380-550 mm |
| Weight | 3.76-4.55 kg/m |
Performance
| Parameter | Value |
|---|---|
| Max Working Pressure | 10 bar |
| Min Burst Pressure | 30 bar |
| Operating Temperature | From -40°C to +70°C |
| Safety Factor | 3:1 |
Construction
| Parameter | Value |
|---|---|
| Cover Material | Black abrasion, weather & ozone resistant synthetic rubber |
| Lining / Tube Material | Black anti-static natural rubber |
| Reinforcement | High tensile strength textile plies, steel helix and anti-static wires |
Shipping & lead time
Sizes & part numbers
2 sizes| Indus part no. | Hose bore | O.D. (mm) | Min burst (bar) | Min bend radius (mm) | Weight (kg/m) | Working pressure (bar) |
|---|---|---|---|---|---|---|
| IH-IH-A361-076 | 3" · DN76 | 92 | 30 | 380 | 3.76 | 10 |
| IH-IH-A361-102 | 4" · DN102 | 120 | 30 | 550 | 4.55 | 10 |
O.D. — Outside diameter of the hose, which is what a clamp or a ferrule has to close on. Min burst — Minimum burst pressure. A test figure, never a working limit — never select on it. Min bend radius — Tightest centreline radius the hose may be bent to at full working pressure. Weight — Weight of the hose per metre, as published.
Working pressure is the published rating for the hose itself. A made-up assembly is limited by its lowest-rated part, so check it against the coupling, the clamp or ferrule, and the temperature you are running at.
Cut lengths and made-up assemblies are prepared in Dubai. Tell us the bore, the length and the ends you need.
What is this hose used for?▾
What sizes are available?▾
What is the maximum working pressure?▾
What is the operating temperature range?▾
What is the construction (cover / lining / reinforcement)?▾
What is the printed branding on the hose?▾
Lead time?▾
Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations
