Is it available in stainless steel?

Yes. Every size is available in 316 stainless steel on request — add "-SS" to the part number when you enquire. Lead time is longer than for the zinc-plated carbon-steel stock.

Can I get it faster than the quoted lead time?

Tell us it is a plant-down job when you enquire. Common sizes are held in Jebel Ali and go out the same day if you order before 14:00 GST.

What thread family does this adapter use?

metric. JIS B8363, ISO 6149. The seat is JIS 30° cone (60° included), metric thread and Metric O-ring stud end. Check the thread on each end against the size table before ordering.

What are the port specs?

Port A: JIS Metric Male 60° Cone. Port B: Metric Male Adjustable Stud End S-Series ISO 6149-2. Port A: Metric M14×1.5 to M36×1.5. Port B: Metric M12×1.5 to M33×2.

What sizes are available?

13 sizes are listed, covering -14 to -36. The Sizes & Part Numbers tab gives the thread on each end, the dimensions and the Indus part number for every one. Sizes outside the table are quoted on request.

What is the maximum working pressure?

The manufacturer publishes no pressure rating for this family, so this page does not state one. Tell us the working pressure your line sees and we will confirm the fitting is rated for it before you order.

What materials and finishes are available?

Standard: carbon steel with a zinc-plated, Cr3+ passivated, RoHS-compliant finish. 316 stainless steel is available on request for marine, chemical or food-grade service — add "-SS" to the part number when you enquire.

Is this adapter interchangeable with other thread families?

No. metric is a thread family in its own right and does not interchange with BSP, JIC, NPT, metric or ORFS. Where you need to cross between families, use the adapter built for that pair rather than forcing a thread that nearly fits.

Do I need to crimp this onto a hose?

No. These are tube and port adapters, not hose ends — they thread into a port or join two threaded ends. For a hose assembly use Indus crimp ferrules with the matching Indus hose-end fitting.

Common sizes are held in Jebel Ali and go out the same day if you order before 14:00 GST. Less-common combinations ship within 7 working days of RFQ confirmation; say if it is a plant-down job and we will prioritise it.

INDUS HYDRAULICSIH-AD-MET-054

90° Elbow JIS Metric Male 60° Cone × Metric Male Adjustable Stud End

Name: 90° Elbow JIS Metric Male 60° Cone × Metric Male Adjustable Stud End
Brand: Indus Hydraulics
SKU: IH-AD-MET-054

Metric AdaptersEx-stock · delivery in 3 days

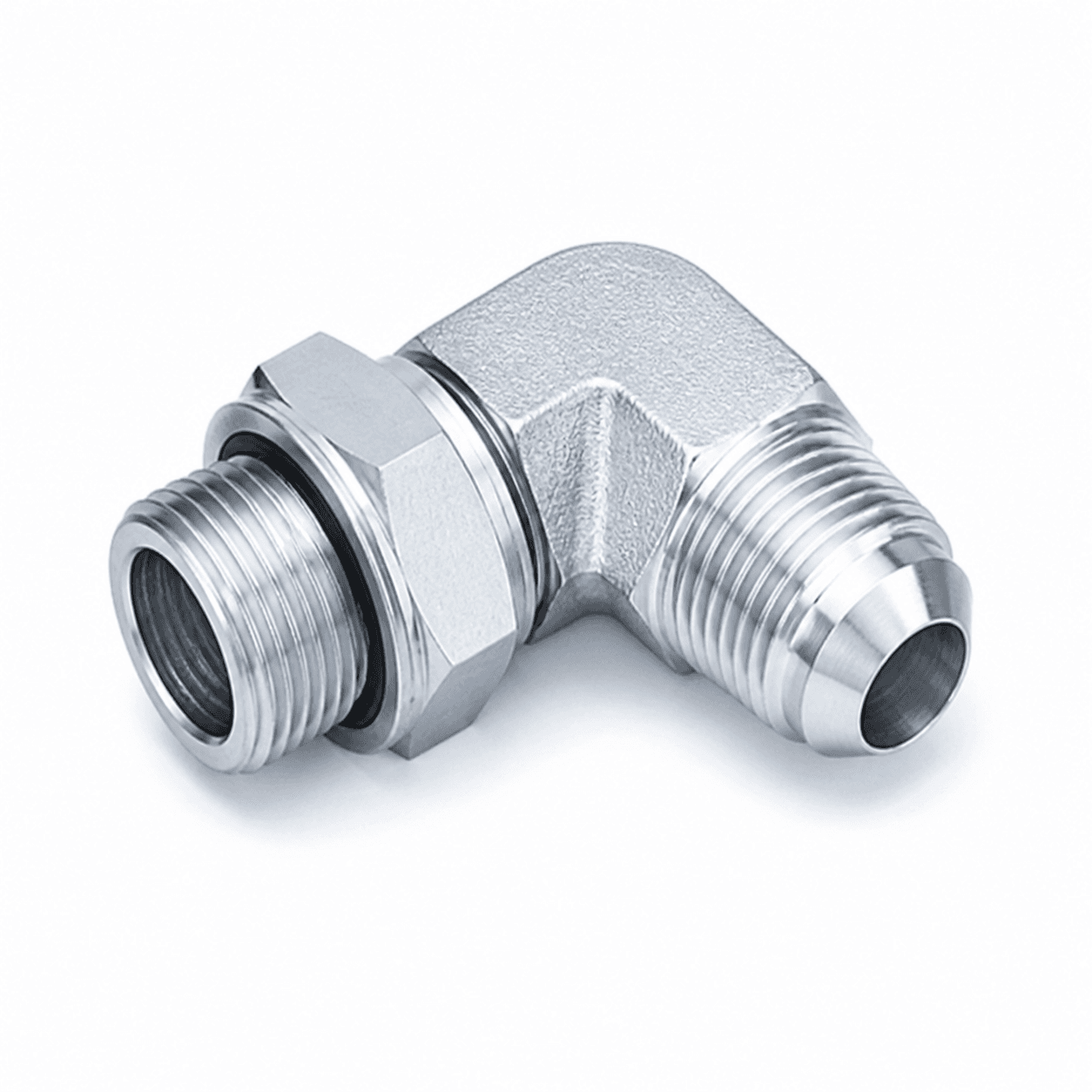

VIEW 01·90° elbow adapter, JIS metric male 60° cone × metric adjustable stud end

90° Elbow JIS Metric Male 60° Cone × Metric Male Adjustable Stud End — metric adapter, 90 elbow body, 13 orderable sizes on this page. RFQ-only; standard Indus zinc-plated carbon-steel construction.

Key features

Body Configuration: 90 elbow
Port A Thread: Metric M14×1.5 to M36×1.5
Port A Sealing: JIS 30° cone (60° included), metric thread
Nominal Size Range: -14 to -36

Body Configuration: 90 elbow
Port A Thread: Metric M14×1.5 to M36×1.5
Port A Sealing: JIS 30° cone (60° included), metric thread
Nominal Size Range: -14 to -36

Enquire on WhatsApp Email for a quotation

Ships in 24h

Order before 14:00 GST · Jebel Ali

24-month warranty

Manufacturer-backed · genuine parts

Engineering support

A real applications engineer

Product description

The 90° Elbow JIS Metric Male 60° Cone × Metric Male Adjustable Stud End is a 90 elbow hydraulic adapter in the Indus metric range. Every size the manufacturer publishes is listed in the Sizes & Part Numbers tab, with the thread on each end, the dimensions and the part number to quote.

Construction

Body configuration: 90 elbow
Port A: JIS Metric Male 60° Cone
Port B: Metric Male Adjustable Stud End S-Series ISO 6149-2
Material: carbon steel (stainless steel available on request)
Surface treatment: zinc-plated, Cr3+ passivated, RoHS-compliant

Threads

Port A: Metric M14×1.5 to M36×1.5
Port B: Metric M12×1.5 to M33×2

Sealing

JIS 30° cone (60° included), metric thread and Metric O-ring stud end. Match the seat as well as the thread — a thread that engages against the wrong seat will weep under pressure, and several of these families share a thread while sealing differently.

Performance

The manufacturer publishes no pressure rating for this family. Tell us the working pressure your line sees and we will confirm the fitting is rated for it before you order.

Applicable standards

JIS B8363, ISO 6149.

How to order

Quote the Indus part number from the size table. If you have only the ports, send us the thread on each end and whether you need carbon steel or stainless, and Indus engineering will confirm the part number against your equipment.

Companion products

These are tube and port adapters, not hose ends. For hose assemblies pair them with Indus crimp ferrules and the matching hose-end fitting; for tube runs, with Indus cutting rings and end nuts.

Identification

Parameter	Value
Body Configuration	90 elbow

Port A

Parameter	Value
Port A Thread	Metric M14×1.5 to M36×1.5
Port A Sealing	JIS 30° cone (60° included), metric thread
Port A Gender	male

Port B

Parameter	Value
Port B Thread	Metric M12×1.5 to M33×2
Port B Sealing	Metric O-ring stud end
Port B Gender	male

Dimensions

Parameter	Value
Nominal Size Range	-14 to -36

Construction

Parameter	Value
Material	Carbon steel (stainless on request)
Surface Treatment	Zinc-plated, Cr3+ passivated, RoHS-compliant

Compliance

Parameter	Value
Applicable Standards	JIS B8363, ISO 6149

Shipping & lead time

Lead TimeEx-stock from Dubai — delivered within 3 working days in the UAE. Export orders ship on the lane stated for the destination.

Sizes & part numbers

13 sizes

Indus part no.	End 1	End 2	S1 (mm)	L1 (mm)	L2 (mm)
IH-AD-MET-054-1412OG	M14X1.5	M12X1.5	14	26.5	31
IH-AD-MET-054-14OG	M14X1.5	M14X1.5	14	26.5	31
IH-AD-MET-054-1614OG	M16X1.5	M14X1.5	16	29.5	31
IH-AD-MET-054-1814OG	M18X1.5	M14X1.5	19	30.8	33.5
IH-AD-MET-054-1816OG	M18X1.5	M16X1.5	19	30.8	33.5
IH-AD-MET-054-1820OG	M18X1.5	M20X1.5	19	30.8	41.5
IH-AD-MET-054-2018OG	M20X1.5	M18X1.5	19	33	37.5
IH-AD-MET-054-2220OG	M22X1.5	M20X1.5	22	35	41.5
IH-AD-MET-054-2420OG	M24X1.5	M20X1.5	24	37	41.5
IH-AD-MET-054-2422OG	M24X1.5	M22X1.5	24	37	41.5
IH-AD-MET-054-3027OG	M30X1.5	M27X2	30	45	48.5
IH-AD-MET-054-33OG	M33X1.5	M33X2	33	50	51.5
IH-AD-MET-054-3633OG	M36X1.5	M33X2	36	57	51.5

End 1 — Thread or flange nominal size at this end, exactly as the manufacturer prints it. End 2 — Thread or flange nominal size at this end, exactly as the manufacturer prints it. S1 — Dimension S1 on the manufacturer dimension drawing. L1 — Dimension L1 on the manufacturer dimension drawing. L2 — Dimension L2 on the manufacturer dimension drawing. Ask us for the dimension drawing if you need it stamped.

Every size is available in 316 stainless steel on request — add “-SS” to the part number when you enquire.

Shipped worldwide from our Dubai warehouse. Transit, routes and documentation for 126 destinations

Also known as

The same part, in the designations used across European and Gulf trade catalogues.

de: Adapter 90° Bogen metrisch Außengewinde 60° Konus auf metrisch Außengewinde
fr: adaptateur coude 90° métrique mâle cône 60° sur métrique mâle
es: adaptador codo 90° métrica macho cono 60° a métrica macho
it: adattatore gomito 90° metrica maschio cono 60° a metrica maschio
