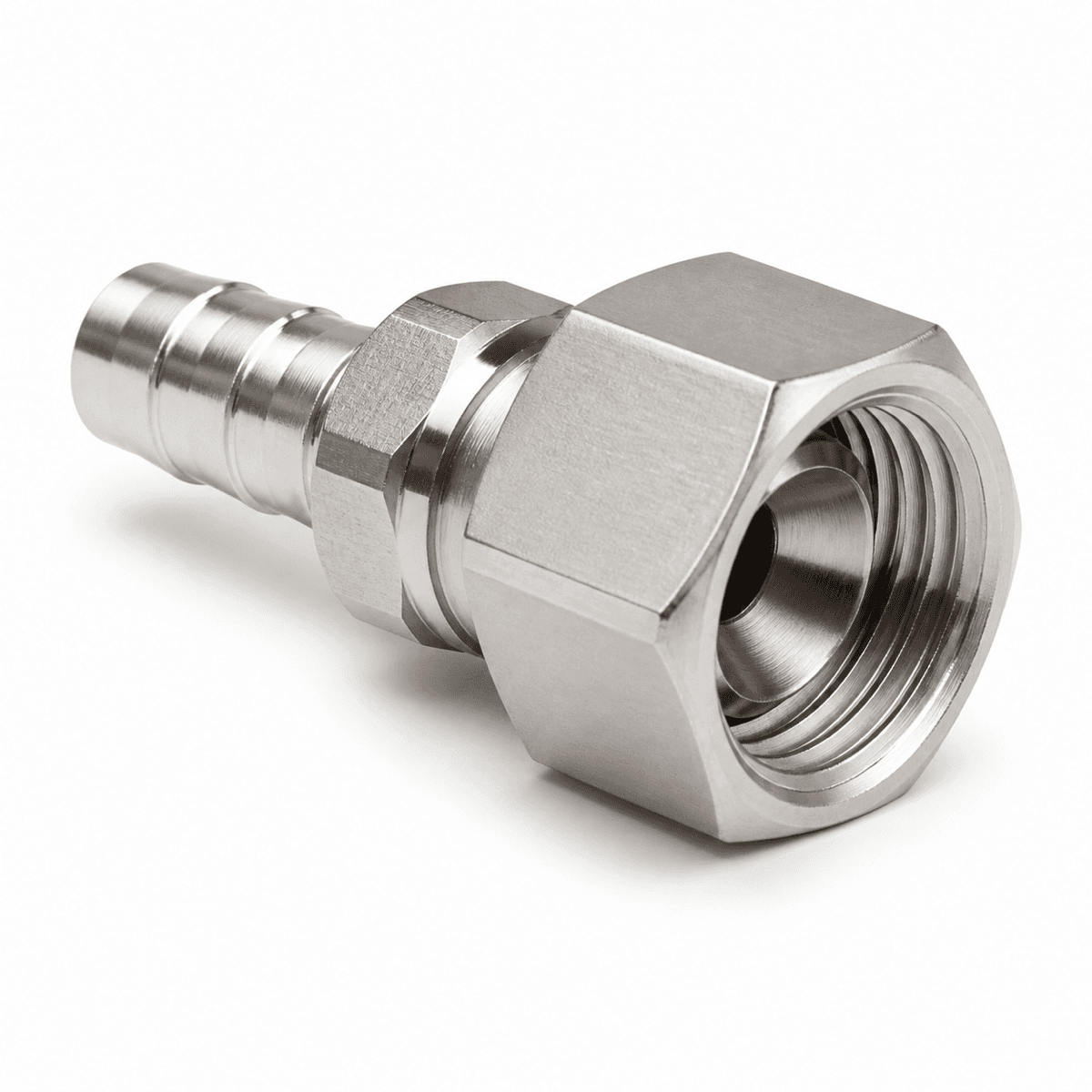

Pressure Washer / Waterjet Female Hose Fitting
Female swivel hose fitting for cold and hot water pressure washers and low-volume waterjet lines — M22 × 1.5 standard, 3/8" BSP on request. straight, M22 × 1.5 female (3/8" BSP female also available), 15 mm internal cone / O-ring seat, depending on variant.
Key features
- Fitting Configuration: straight
- Thread Form: M22 × 1.5 female (3/8" BSP female also available)
- Sealing Form: 15 mm internal cone / O-ring seat, depending on variant
- Nominal Size Range: DN6 – DN10 (1/4" – 3/8") hose bore
- Fitting Configuration
- straight
- Thread Form
- M22 × 1.5 female (3/8" BSP female also available)
- Sealing Form
- 15 mm internal cone / O-ring seat, depending on variant
- Nominal Size Range
- DN6 – DN10 (1/4" – 3/8") hose bore
Product description
The Pressure Washer / Waterjet Female Hose Fitting is a straight hydraulic hose fitting in the Pressure Washer family — female-swivel thread with 15 mm internal cone / O-ring seat, depending on variant sealing form. Compliant with Manufacturer interchange dimensions.
Construction
- Configuration: straight
- Thread form: M22 × 1.5 female (3/8" BSP female also available)
- Sealing form: 15 mm internal cone / O-ring seat, depending on variant
- Gender: female-swivel
- Material: Carbon steel (stainless steel available on request)
- Surface treatment: Zinc-plated, Cr3+ passivated, RoHS-compliant
- Notes: Specify the machine-side insert diameter (14 mm or 15 mm) on the RFQ — the two are visually similar and will not seal against each other.
Performance
Pressure rating matches the matching ferrule and host hose grade — see Indus Crimp Ferrules for compatibility tables. Tested to manufacturer-recommended impulse cycles when crimped to the correct ferrule diameter. Operating temperature -40°C to +120°C; refer to fluid compatibility chart for aggressive media.
Applicable Standards
- Manufacturer interchange dimensions
How to order
Specify (a) the host hose grade and bore size, (b) the matching crimp ferrule (see the Crimp Ferrules category), and (c) the thread size you need. Indus crimps and pressure-tests the assembly before dispatch.
Companion products
Pair with Indus crimp ferrules from the matching hose grade. For other thread families see the Metric, BSP, JIC 37°, DIN, and Japanese sub-categories under Hose Fittings.
Identification
| Parameter | Value |
|---|---|
| Fitting Configuration | straight |
| Thread Form | M22 × 1.5 female (3/8" BSP female also available) |
| Sealing Form | 15 mm internal cone / O-ring seat, depending on variant |
| Thread Gender | female-swivel |
Dimensions
| Parameter | Value |
|---|---|
| Nominal Size Range | DN6 – DN10 (1/4" – 3/8") hose bore |
Construction
| Parameter | Value |
|---|---|
| Material | Carbon steel (stainless on request) |
| Surface Treatment | Zinc-plated, Cr3+ passivated, RoHS-compliant |
Compliance
| Parameter | Value |
|---|---|
| Applicable Standards | Manufacturer interchange dimensions |
