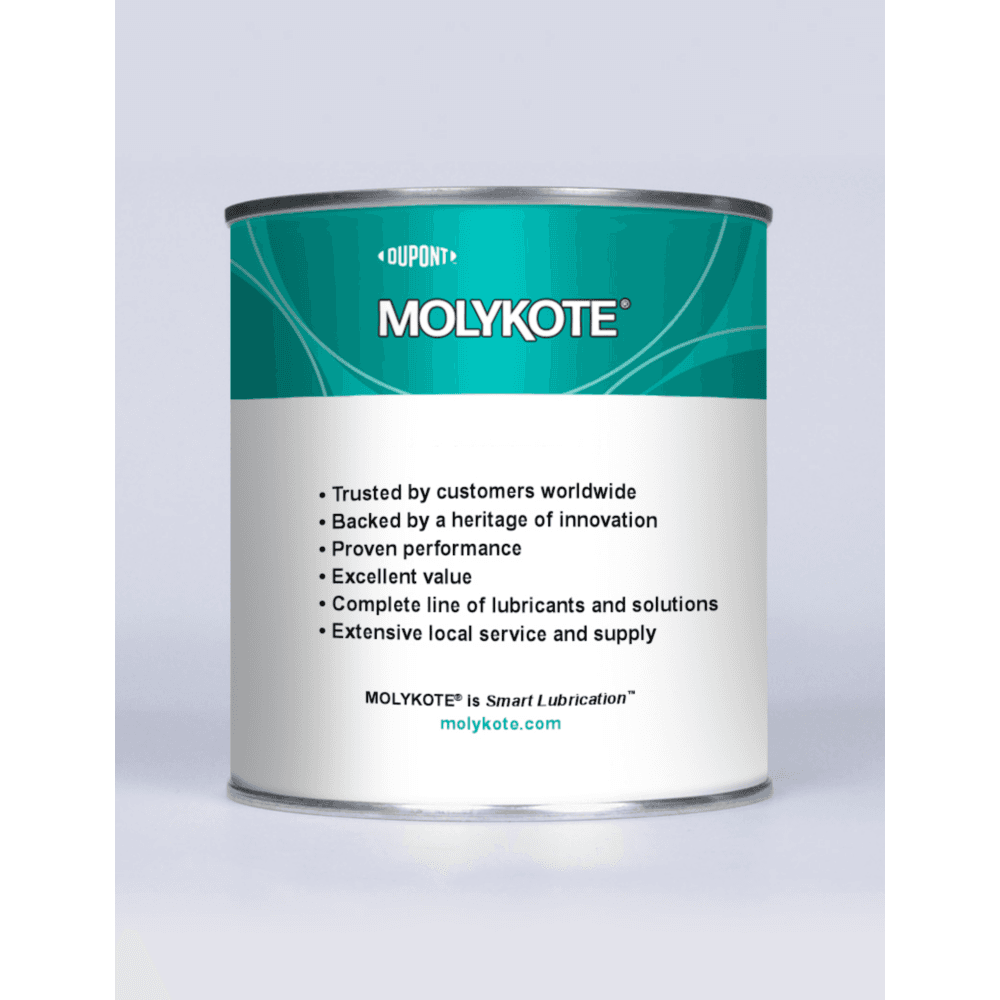

Molykote G-1074 Grease

Molykote G-1074 is a polyalphaolefin (PAO) grease for lubricating common metal, plastic and elastomer parts. DuPont formulates it to damp noise, even under extreme pressure at high frequency, and to work across a wide temperature range: −40 to 150 °C.

Features & benefits

• Noise-damping performance
• Additives for extreme pressure at high frequency
• Wide temperature range, −40 to 150 °C

Composition

• Polyalphaolefin (PAO) base oil
• Lithium soap thickener
• PTFE and antioxidants

Applications

Automotive systems — chassis and brake, exterior and interior parts — and bearings, gears, slides and other mechanisms that need low friction and compatibility with common metals, plastics and elastomers.

Typical properties

• Appearance: translucent white
• Penetration (JIS K 2220): 280
• Base oil viscosity (JIS K 2283): 53 mm²/s at 40 °C, 8.5 mm²/s at 100 °C
• Density (JIS K 5600): 0.90 g/ml
• Bleed (JIS K 2220, 24 h at 100 °C): 3.6 %
• Evaporation loss (JIS K 2220, 22 h at 99 °C): 0.1 %
• Water washout (JIS K 2220, 38 °C, 1 h): 1.98 %
• Dropping point (JIS K 2220): 210 °C
• Four-ball wear scar (ASTM D2266, 1,200 rpm, 392 N, 1 h): 0.69 mm
• SRV extreme pressure (ASTM D5706, 50 °C, 50 Hz, 1 mm, procedure A): 1,000 N
• Low-temperature torque at −40 °C (JIS K 2220): 99 mNm starting, 50 mNm running

These are typical values, not a specification: DuPont asks specification writers to contact it before writing one.

How to use

Clean the points of application, then apply or fill with a brush, spatula or automated lubrication device.

Usable life and storage

36 months from the date of production, stored unopened in a cool, dark place. Read the safety data sheet and container label before handling.

Pack sizes

• 1 kg can, 10 cans per case
• 16 kg pail

Technical data published by DuPont, the manufacturer of MOLYKOTE®. See the linked technical data sheet for full test conditions.
