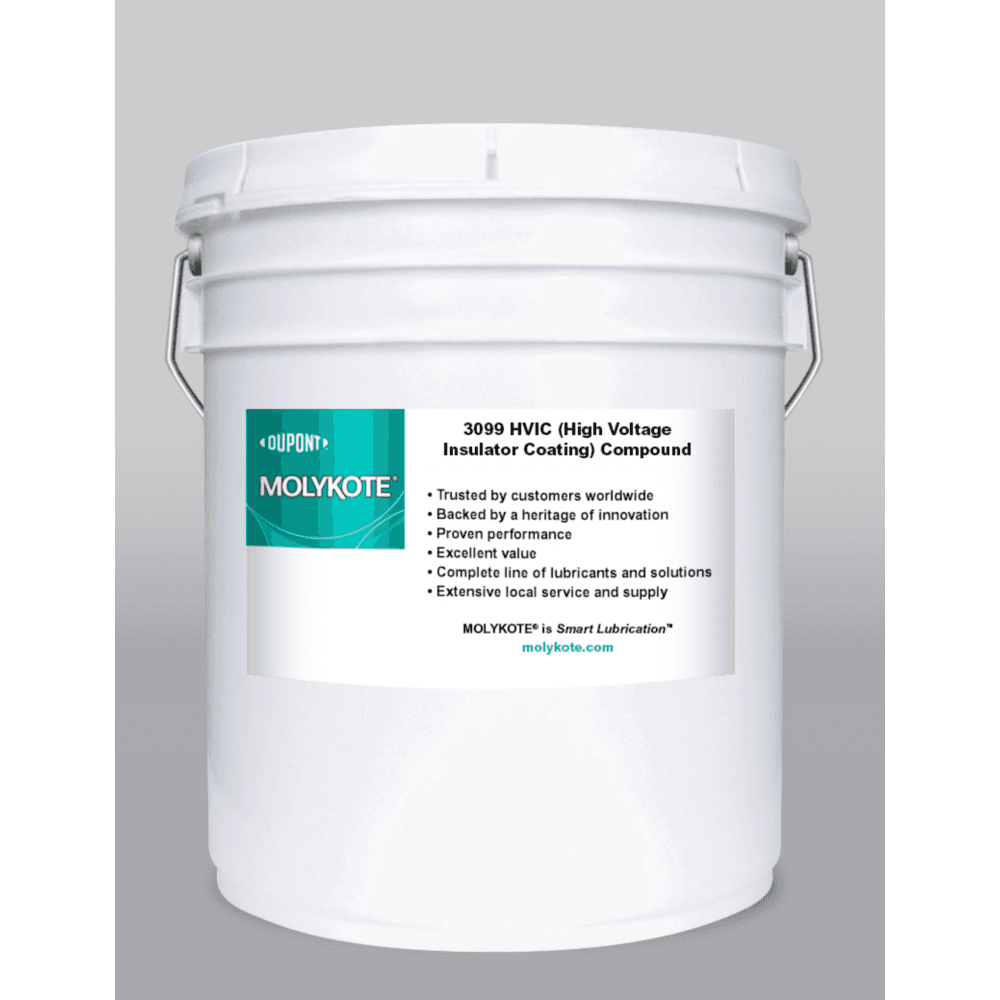

Molykote 3099 HVIC (High Voltage Insulator Coating) Compound

NLGI Grade 2-3, charcoal, used primarily as a high voltage insulator coating.

Features & benefits

• Easy to use In addition to a high level of flashover resistance, MOLYKOTE® 3099 HVIC Compound incorporates an arc-resistant filler that inhibits arc growth. This helps protect the insulator from glaze damage when the coating’s water repellency is significantly diminished and arcing is experienced. Another benefit of MOLYKOTE® 3099 HVIC Compound is the ease of handling. The compound is easy to spread, not stringy, and shows good adhesion to properly prepared insulators

Applications

Used to give a protective coating to electrical insulators. The consistency of the compound provides easy application to the required coating thickness. The gray opaque appearance of MOLYKOTE® 3099 HVIC Compound makes it easy to ensure a uniform and complete coating is obtained. For more detailed application information, see technical datasheet.

Composition

• Technology: Silicone
• Thickener: Silica

Available pack sizes

• 4.5 kg pail
• 22.6 kg pail

About this type of lubricant

Compounds are silicone-based, non-melting greases used less for friction than for sealing, insulating and protecting. Typical duty is dielectric insulation and moisture-sealing of electrical connections, lubrication and sealing of rubber and plastic parts, valve and O-ring assembly, and vacuum sealing.

How to choose

Compounds do not carry high mechanical loads — if the point is a loaded bearing or gear, a grease or paste is the right family. The silicone caution applies here too: a compound on a surface that will later be painted, bonded or printed will cause the coating to fail. On rubber and elastomer components, confirm compatibility with the specific elastomer — silicone compounds are excellent on most, and wrong on silicone rubber itself.

How to order

Specify the pack size and, where more than one grade shares a name, the exact grade on the RFQ. Indus Hydraulics is an authorised distributor and quotes MOLYKOTE® from Dubai stock where the grade is held; less common grades ship to order. Our engineers will confirm the grade against your application and operating conditions before you commit.

Product data on this page is published by DuPont, the manufacturer of MOLYKOTE®. See the linked technical data sheet for full test conditions.
