Stainless Steel Hydraulic Fittings
SS316L fittings, adapters and flanges for hydraulic and washdown service — the material choice for offshore, chemical handling and anywhere carbon steel will not survive. BSP, SAE, JIC 37°, metric, ORFS and NPT/NPSM forms, plus banjos, standpipes and hydrowashing couplings.
53 SKUs1 brands
IH-SS-MET-001
Metric female swivel with o-ring 24° cone
Indus HydraulicsM10×1 to M42×2Metric M10×1 to M42×2 (24° cone)
IH-SS-MET-003

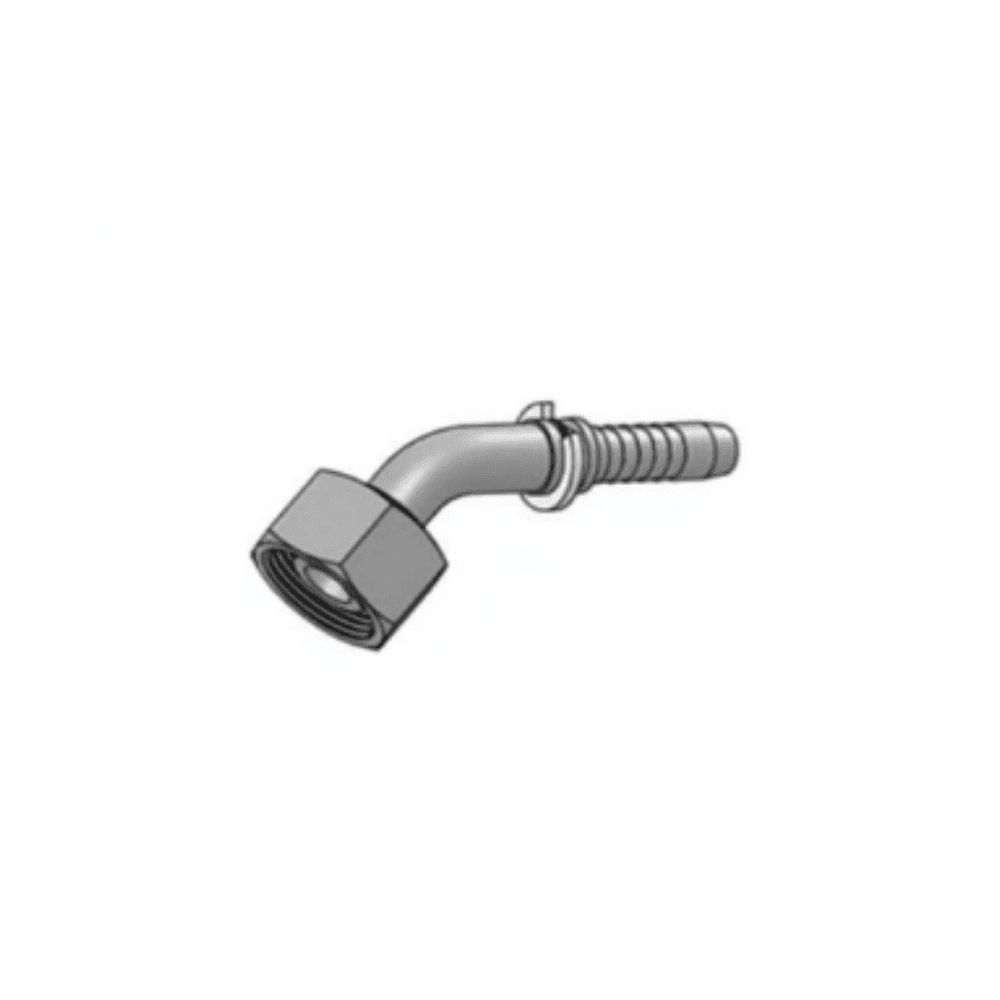

Metric swivel female with o-ring 24° cone (45º elbow)
Indus HydraulicsMetric M10×1 to M42×2 (24° cone)M10×1 to M42×2
IH-SS-JIC-004

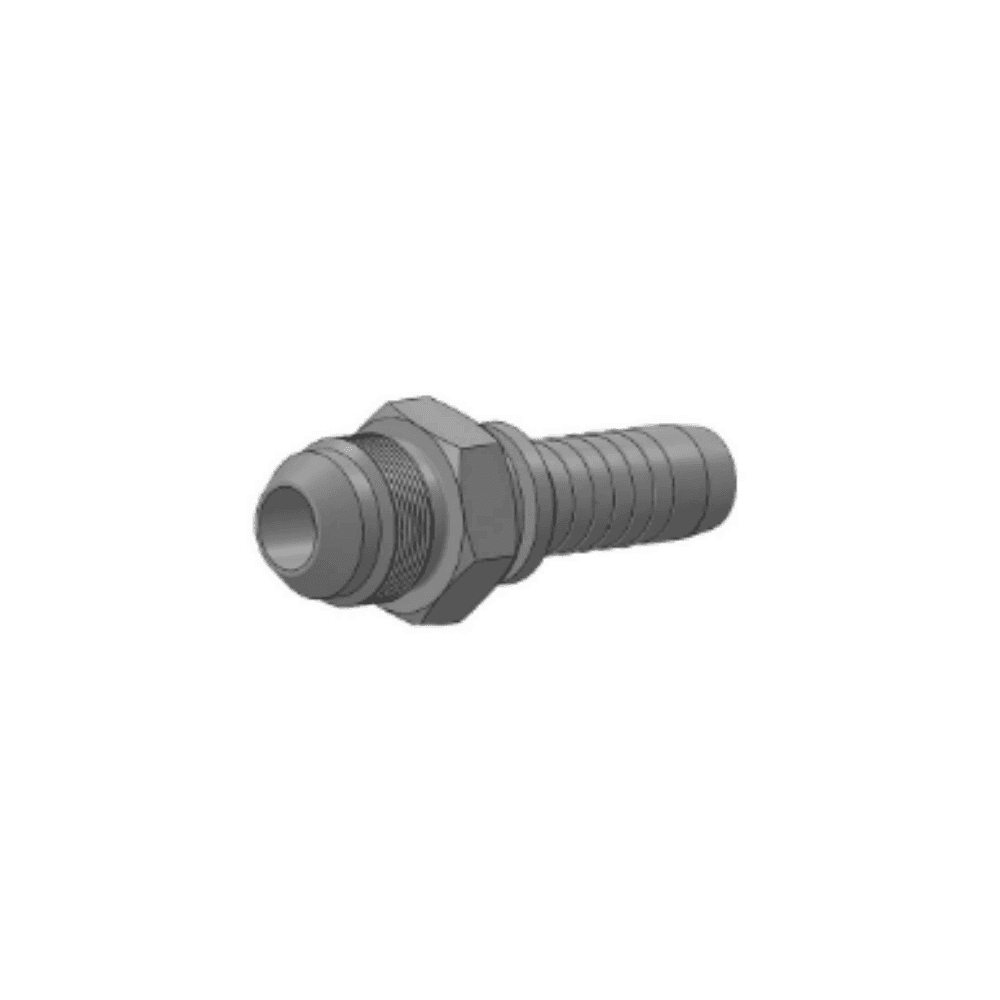

Male JIC 37°
Indus HydraulicsJIC 37° UN/UNF (7/16-20 to 1-7/8-12)37° cone seat (metal-on-metal)
IH-SS-JIC-003

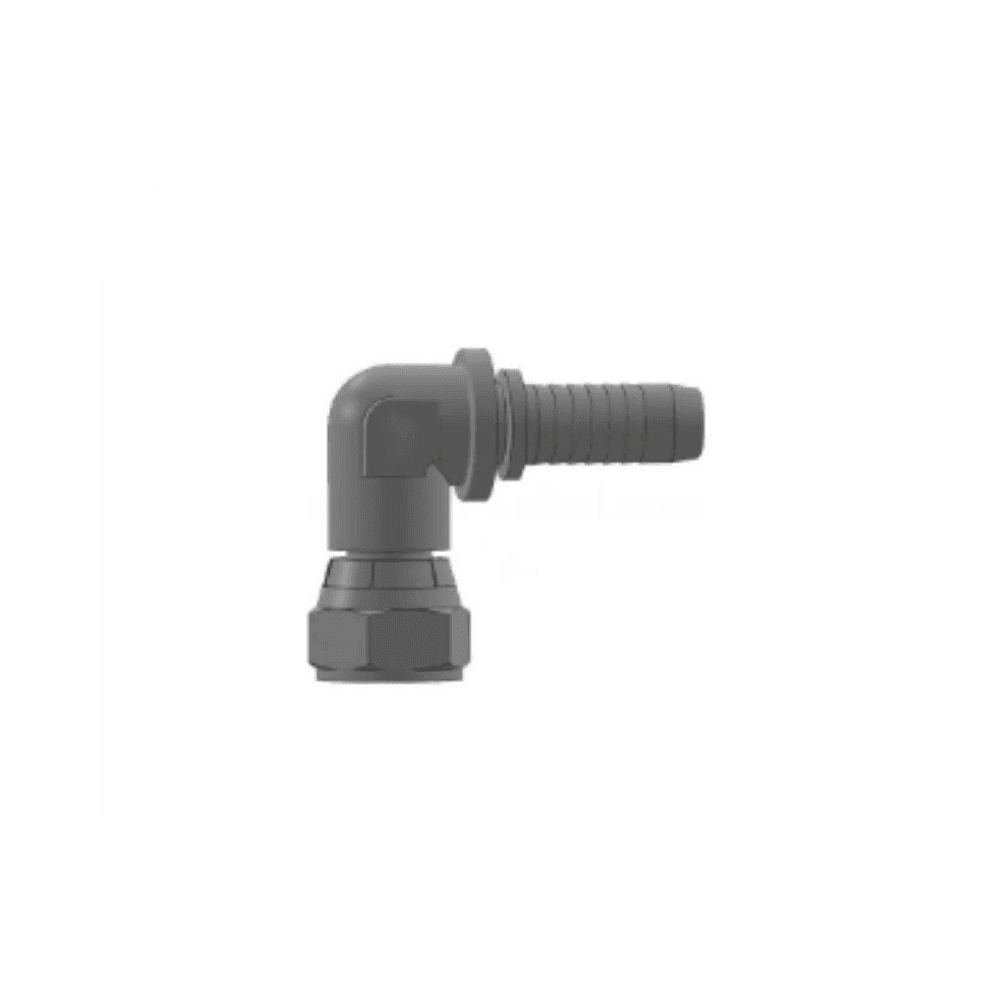

JIC 37º swivel female (90º compact elbow)
Indus Hydraulics90-elbow37° cone seat (metal-on-metal)
IH-SS-BSP-012

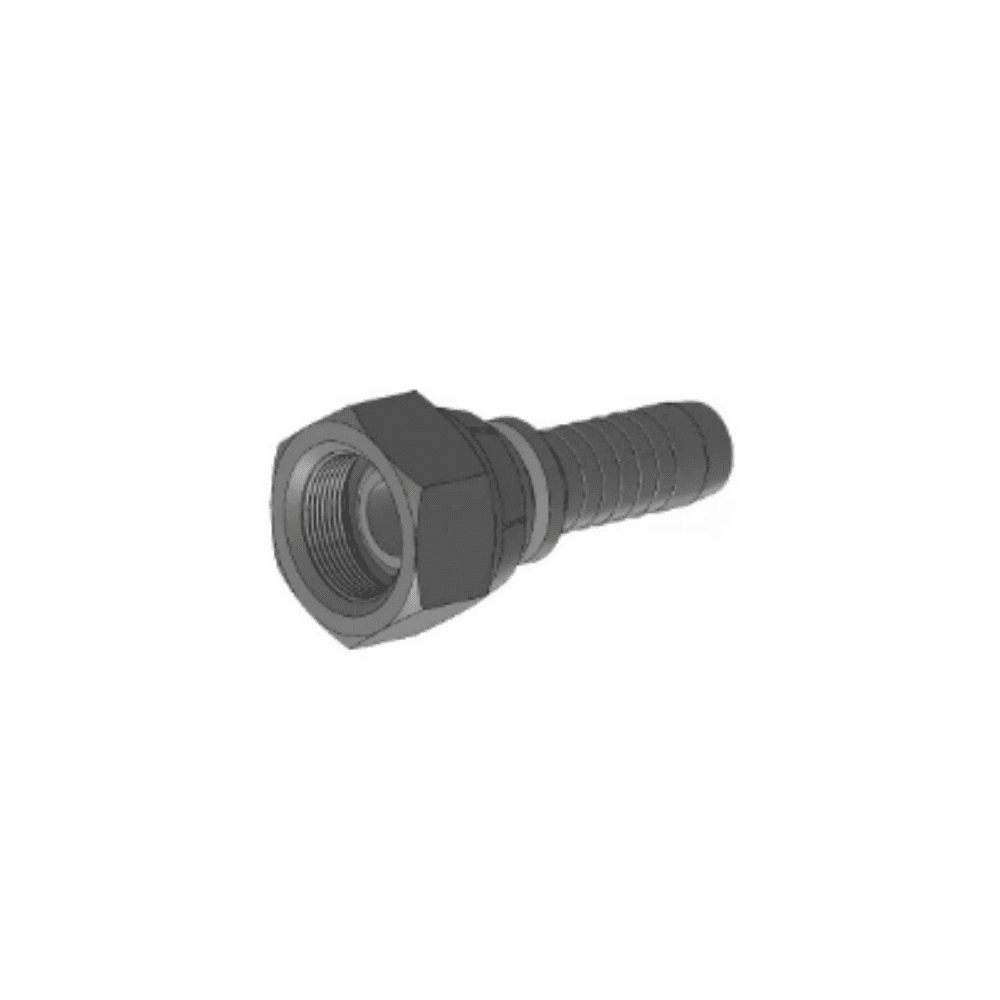

BSP swivel female 60° cone with o-ring
Indus HydraulicsG1/8 to G260° cone seat with O-ring
IH-SS-BSP-009
BSP swivel female flat seat (90º elbow)
Indus Hydraulics90-elbowFlat-face seal on swivel nut
IH-SS-BSP-004

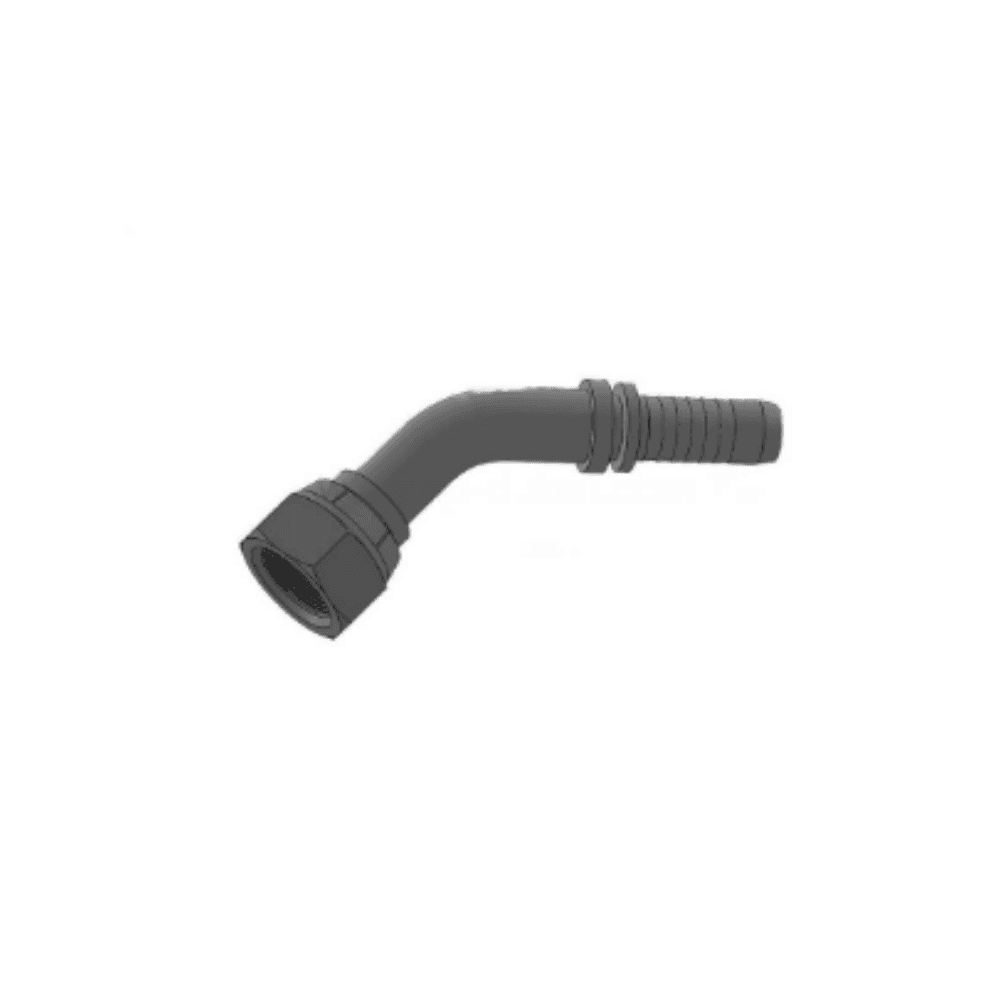

BSP swivel female 60° cone with o-ring (45º elbow)
Indus HydraulicsBSPP G1/8 to G2 (parallel)45-elbow
